Sony HCD-CP1 - Exploded View: CD Mechanism Deck Section

– 48 –
HCD-CP1

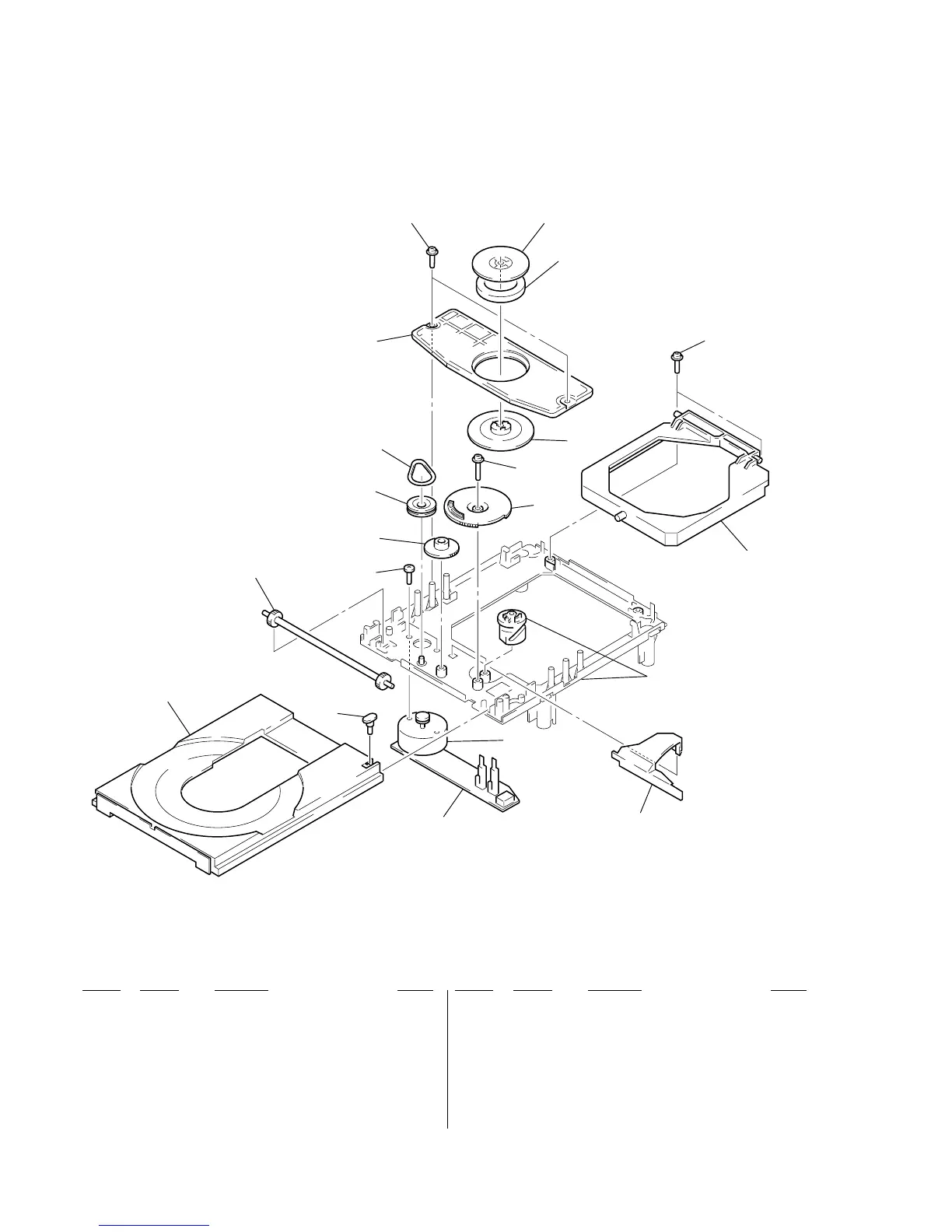

(4) CD MECHANISM DECK SECTION
(KSL-2130CCP/K1N)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 151 2-646-290-01 TRAY (2130)
152 2-167-349-01 PIN (RP), TRAY
153 2-625-279-01 SCREW (B 2.6X2.5), +
154 2-625-274-02 GEAR, MIDWAY
155 2-625-276-02 PULLEY, LOADING
156 3-635-387-00 BELT, LM
157 2-626-294-01 SCREW (+PTPWH) (2.6X7)
* 158 2-625-284-05 PLATE, CHUKING
159 1-452-493-21 MAGNET
160 2-625-286-03 PULLEY, CHUKING
161 3-319-501-51 SCREW (+PTPWH) (2.6X16)
* 162 2-646-288-01 CHASSIS (2130), SUB
* 163 2-625-282-02 COVER, GEAR
* 164 1-640-523-11 LOADING BOARD
M901 X-2625-117-1 MOTOR ASSY, LOADING
(DISC TRAY OPEN/CLOSE)
151
152
153
154
155
156
157
158
159
160
162
157
161
not
supplied
not
supplied
not
supplied
M901
not
supplied
163
164
Ver 1.1 2001.02
