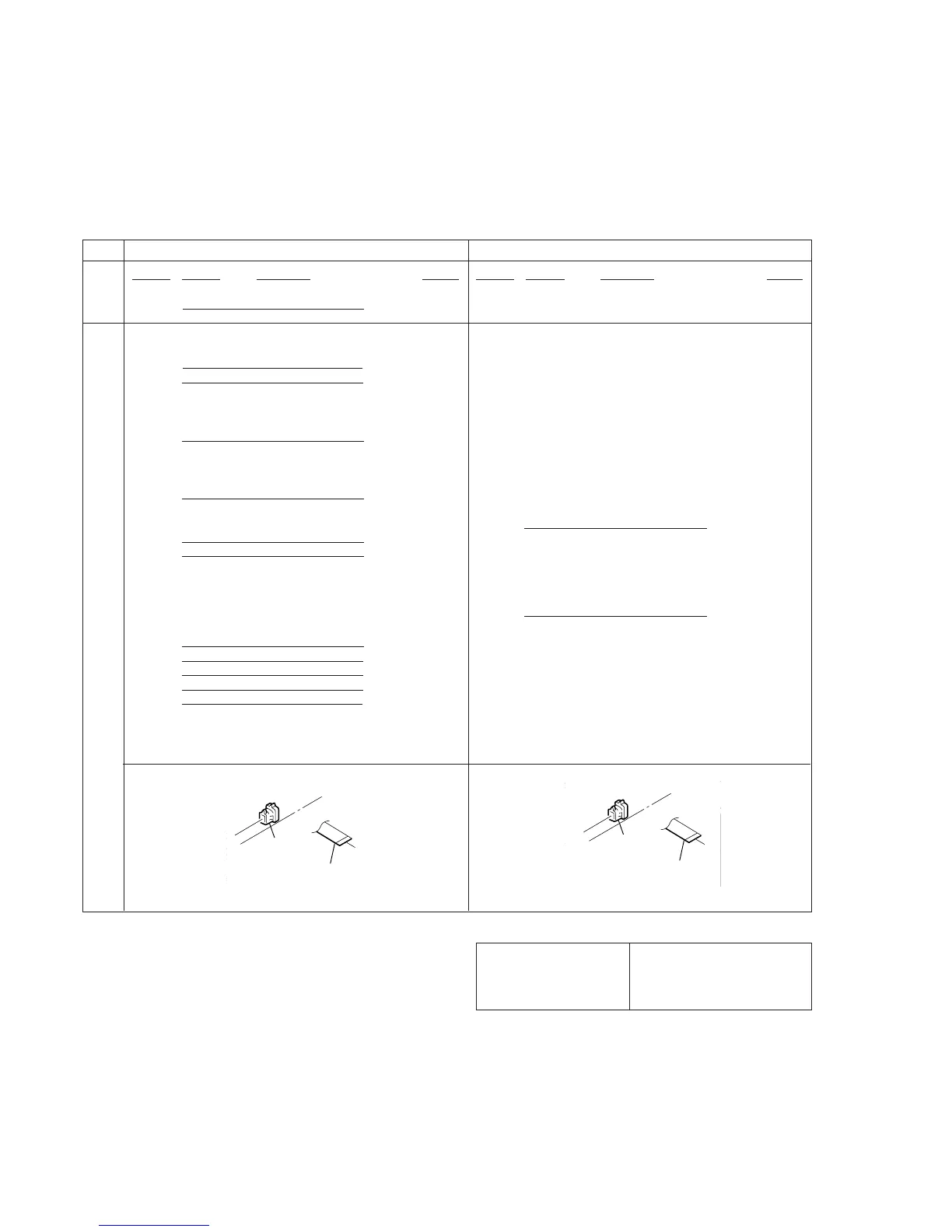

1-3. Exploded Views
! : Indicates changed portion.
• Abbreviation
AR : Argentine model
AUS : Australian model
CND : Canadian model
EA : Saudi Arabia model
HK : Hong Kong model
MX : Mexican model
MY : Malaysia model
SP : Singapore model
TH : Thai model
TW : Taiwan model
Page Before Change After Change
Ref. No. Part No. Description Remark
6 3-363-099-51 SCREW (CASE 3 TP2) (TH)
6 4-221-580-01 SCREW, CASE (EXCEPT TH)
* 105 A-4419-950-A POWER BOARD, COMPLETE
(E, EA, MY, SP, TH, HK, TW, AR)
* 105 A-4426-432-A POWER BOARD, COMPLETE (AUS)
* 105 A-4426-664-A POWER BOARD, COMPLETE (MX)
* 106 4-217-338-01 PANEL, BACK (AEP, UK)
* 106 4-217-338-11 PANEL, BACK (E, EA, MY, SP, HK, TW, AR)
* 106 4-217-338-41 PANEL, BACK (TH, MX, AUS)
* 107 A-4419-949-A MAIN BOARD, COMPLETE
(EA, MY, SP, TH, HK, TW, AUS)
* 107 A-4426-433-A MAIN BOARD, COMPLETE (E, MX, AR)
* 108 4-217-350-01 STOPPER, CORD (EXCEPT TH)
108 3-703-571-11 BUSHING (S) (4516), CORD (TH)
112 A-4411-697-A TUNER PACK (EXCEPT US, CND, AEP, UK)
0 116 1-696-169-21 CORD, POWER (EA, MY, SP, HK, TW)
0 116 1-757-166-11 CORD, POWER (AEP, UK)
0 116 1-558-943-31 CORD, POWER (TH)
0 116 1-690-608-11 CORD, POWER (AUS)
0 116 1-775-789-81 CORD, POWER (E, MX)
0 116 1-783-941-21 CORD, POWER (AR)
0 T901 1-433-809-11 TRANSFORMER, POWER
(EXCEPT US, CND, AEP, UK)
Ref. No. Part No. Description Remark
6 3-363-099-51 SCREW (CASE 3 TP2)
* 105 A-4419-950-A POWER BOARD, COMPLETE
(MY, SP, TH, HK)
* 106 4-217-338-01 PANEL, BACK (AEP, UK)
* 106 4-217-338-11 PANEL, BACK (MY, SP, TH, HK)
* 107 A-4419-949-A MAIN BOARD, COMPLETE
(MY, SP, TH, HK)
* 108 4-217-354-01 BUSHING, INSULATING
112 A-4411-697-A TUNER PACK (MY, SP, TH, HK)
0 116 1-575-651-11 CORD, POWER (UK, HK)
0 116 1-696-169-21 CORD, POWER (AEP, MY, SP, TH)
0 T901 1-433-809-11 TRANSFORMER, POWER (MY, SP, TH, HK)
