HCD-CP300
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
• MODEL IDENTIFICATION
– Rear Panel –
Power Voltage
Incdication
AC: 120 V 60 Hz 70 W
AC: 230 V 50/60 Hz 70 W
AC: 110 – 120/
220 – 240 V 50/60 Hz 70 W
Model
US, CND, MX models
AEP, UK models
EA, SP, MY models
• Abbreviation
CND : Canadian model
EA : Saudi Arabia model
MX : Mexican model
SP : Singapore model
MY : Malaysia model

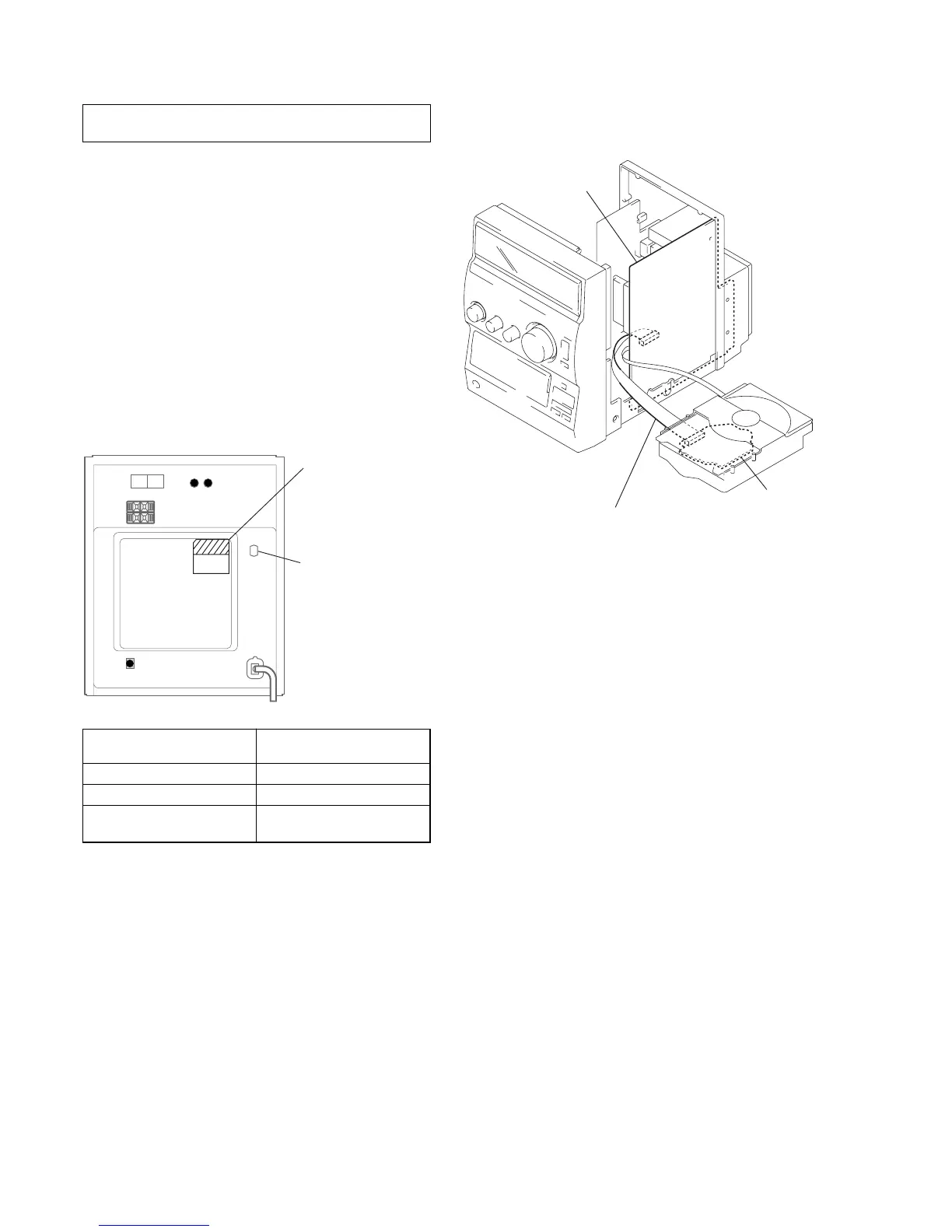

SERVICE POSTION
In checking the CD block, prepare jig (extension cable J-2501-011-
B).
Connect jig (extension cable J-2501-011-B)
to the MAIN board (CN101) and CD board (CN101).
MAIN board
CD board
