Sony HCD-CP300 - DISASSEMBLY PROCEDURES

7
HCD-CP300
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
• The equipment can be removed using the following procedure.

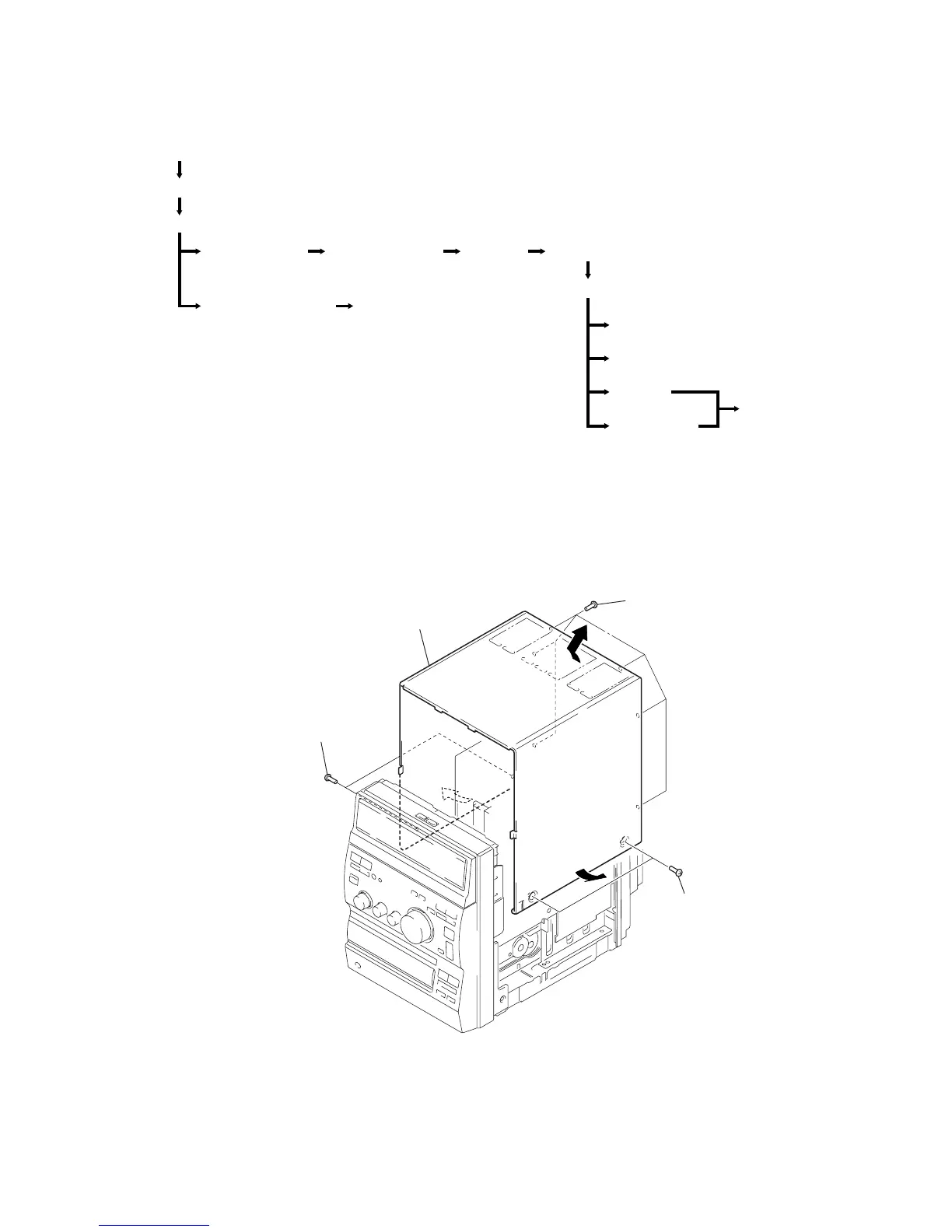

3-1. COVER (UPPER)
1 Six screws (+BTP 3 × 8)
2 Two case screw
s
3 Two case screws
4 Cover (upper)
Cover (upper)
Front panel section
Front panel section Back panel sub assy
Stocker ass
y
Tape mechanism deck-1 Tape mechanism deck-2
Set
CD mechanism deck (CDM63K-K6BD44)
Base unit (BU-K6BD44)
Tray assy
Slider (loading)
Motor board
Main board Power board
