HCD-CP300

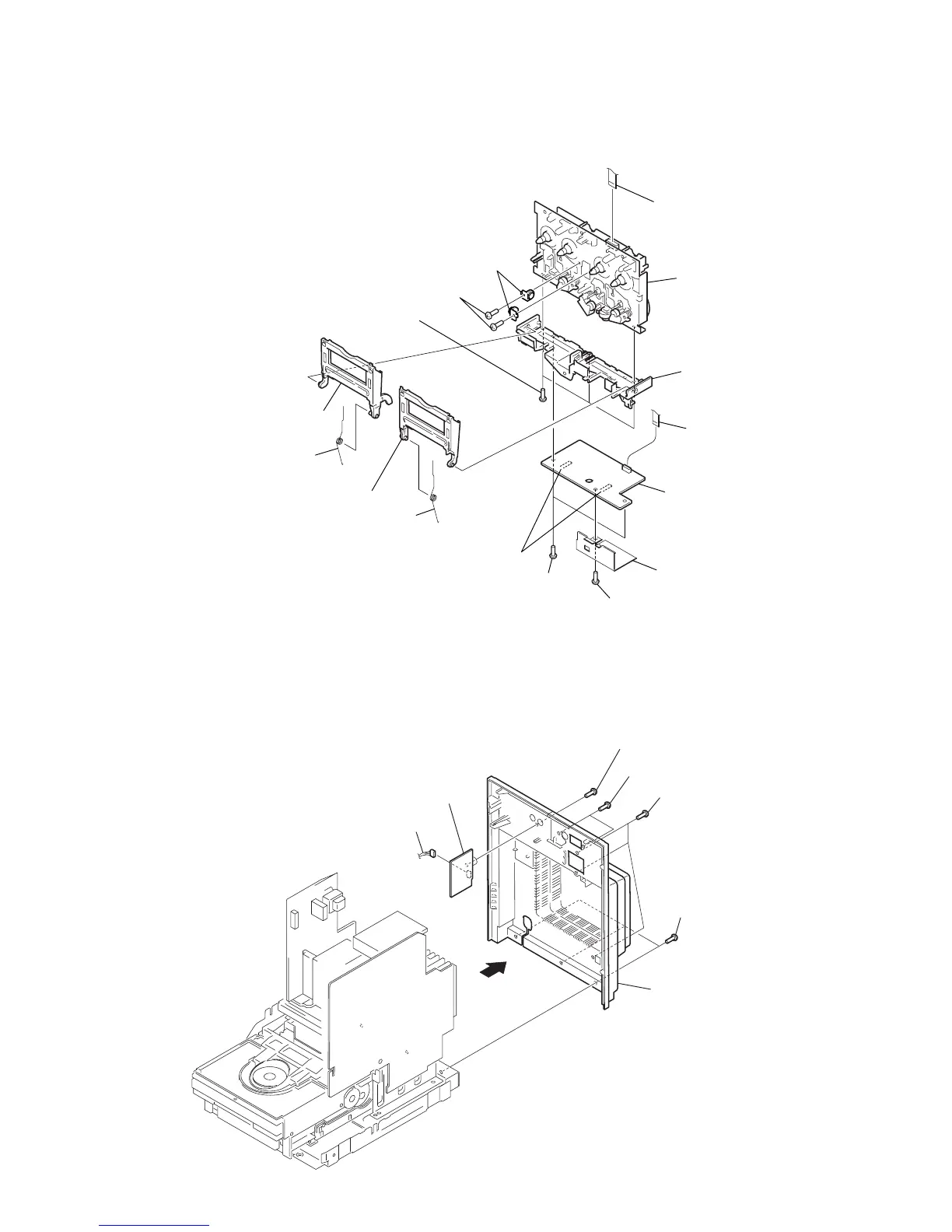

3-4. TAPE MECHANISM DECK-2
1 Cassette holder (A) sub assy
3 Cassette holder (B)
sub assy
2 Spring (casstte A)
7 Wire (flat type) 11p
(CN401)
qs Bracket (MD)
q; TC board
qd Wire (flat type) 11p
4 Spring (cassette B)
5 Screw (BTP 3 × 8)
8 Two screws (BVTP 2.6 × 12)
qa Three screws (BVTP 2.6 × 12)
qf Thwo screws (BVTTWH 2 × 6)
qg Two damper
qh Tape machanism dec
k
6 Shield case (TC)
9 Remove solderings.
3-5. BACK PANEL SUB ASSY
2 Three screws (BTP 3 × 8
)
5
3
Three screws (BTP 3 × 8)
4 Two screws (BTP 3 × 8)
6 Screw (BTP 3 × 8)
7 Jack board
1 Connector 3p (CN305)
8 Back panel sub assy
