Sony HCD-CP300 - EXPLODED VIEWS

NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND: Canadian model
EA : Saudi Arabia model
MX : Mexican model
SP : Singapore model
MY : Malaysia model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

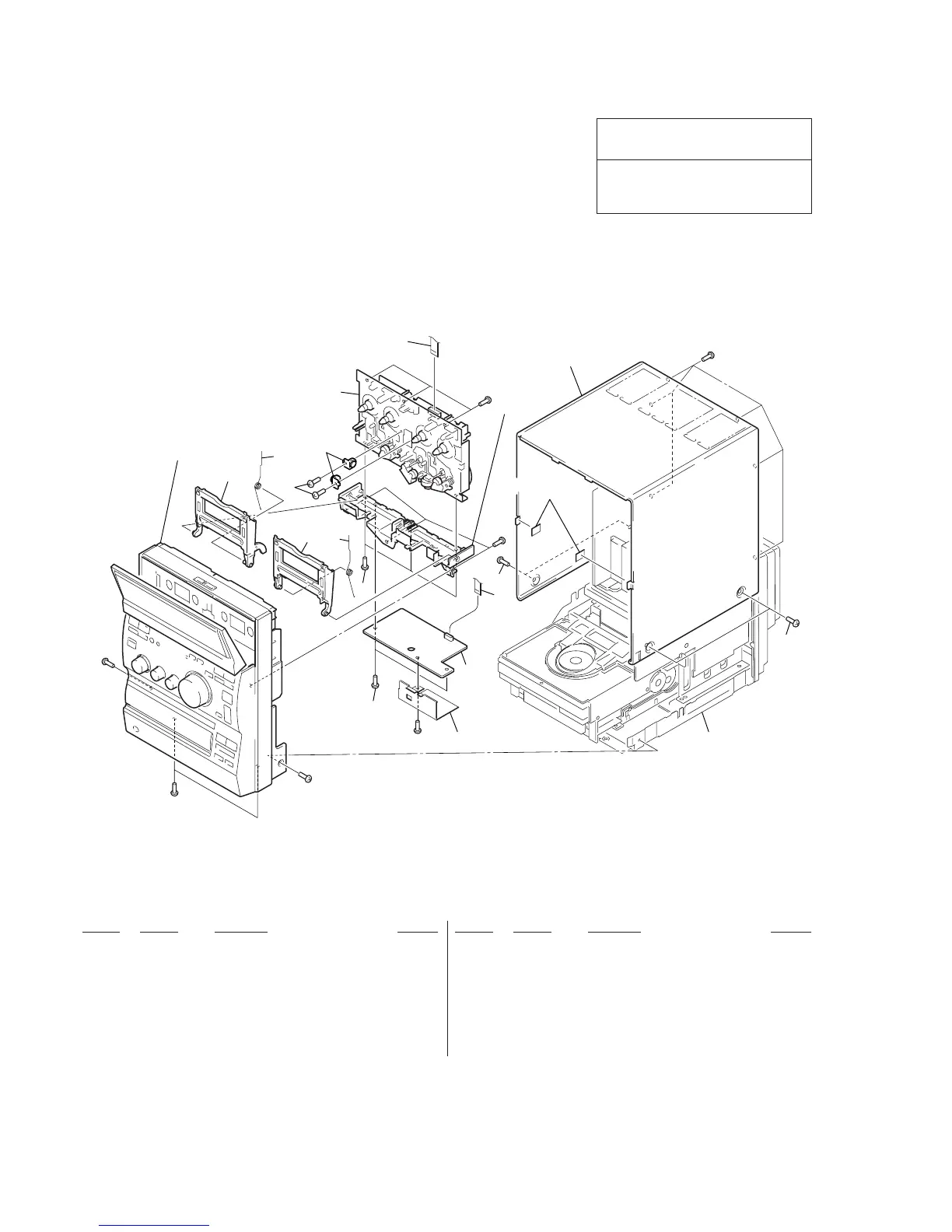

SECTION 7
EXPLODED VIEWS
40
HCD-CP300
12
1
2
3
4
13
5
8
7
9
10
11
9
6
not supplied
Chassis section
not
supplied
not supplied
Front panel section
#1
#2
#2
#2
#2
#2
#1
13
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-4952-972-1 HOLDER (A) SUB ASSY, CASSETTE
2 X-4952-973-1 HOLDER (B) SUB ASSY, CASSETTE
3 4-229-008-01 SPRING (CASSETTE A)
4 4-229-009-01 SPRING (CASSETTE B)
5 4-229-013-11 DAMPER
6 1-796-078-11 DECK, MECH
7 1-757-707-11 CABLE, FLEXIBLE FLAT (11 CORE)
8 4-229-015-01 SCREW, +BVTTWH TAPPING
9 4-221-580-01 SCREW, CASE
10 1-757-705-11 CABLE, FLEXIBLE FLAT (11 CORE)
11 A-2007-972-A TC BOARD, COMPLETE
12 4-222-370-11 COVER (UPPER)
13 4-229-428-01 SCREW, +BVTP TAPPING
7-1. COVER SECTION
