Sony HCD-CP300 - CD Mechanism Deck-2

44
HCD-CP300
not supplied
not supplied
not
supplied
not
supplied
not
supplied
M721
553
553
557
559
553
558
568
556
556
556
556
556
556
556
560
561
551
552
563
565
564
567
571
570
569
562
553
554
553
553
566
555
572
573
551 4-229-003-01 PULLEY
552 4-228-998-01 GEAR (DETECTION)
553 4-218-253-01 SCREW (M2.6), +BTTP
554 4-218-253-61 SCREW (M2.6), +BTTP
555 4-228-977-01 SLIDER (BU.L)
556 4-218-254-21 SCREW (M2.6), +PTPWH
557 4-228-999-01 LEVER (MAIN.L)
558 4-228-985-01 GEAR (PULLEY)
559 4-228-997-02 GEAR (CAM)
560 1-678-462-11 IN OUT SW BOARD
561 4-228-968-01 BELT
562 4-229-001-01 HOLDER (SENSOR)
563 1-678-457-11 TRAY SENSOR BOARD
564 4-228-988-01 CHASSIS
565 1-678-460-11 DRIVER BOARD
566 4-228-976-01 SLIDER (BU.R)
567 1-678-461-11 MOTOR BOARD
568 4-229-000-01 LEVER (MAIN.R)
569 4-229-002-01 GEAR (SLIDER)
570 4-228-971-01 CAM
571 X-4952-971-1 MOTOR ASSY
572 4-228-993-03 SLIDER (LOADING)
573 4-228-974-02 RACK (CENTER)
M721 1-541-632-11 MOTOR, DC
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

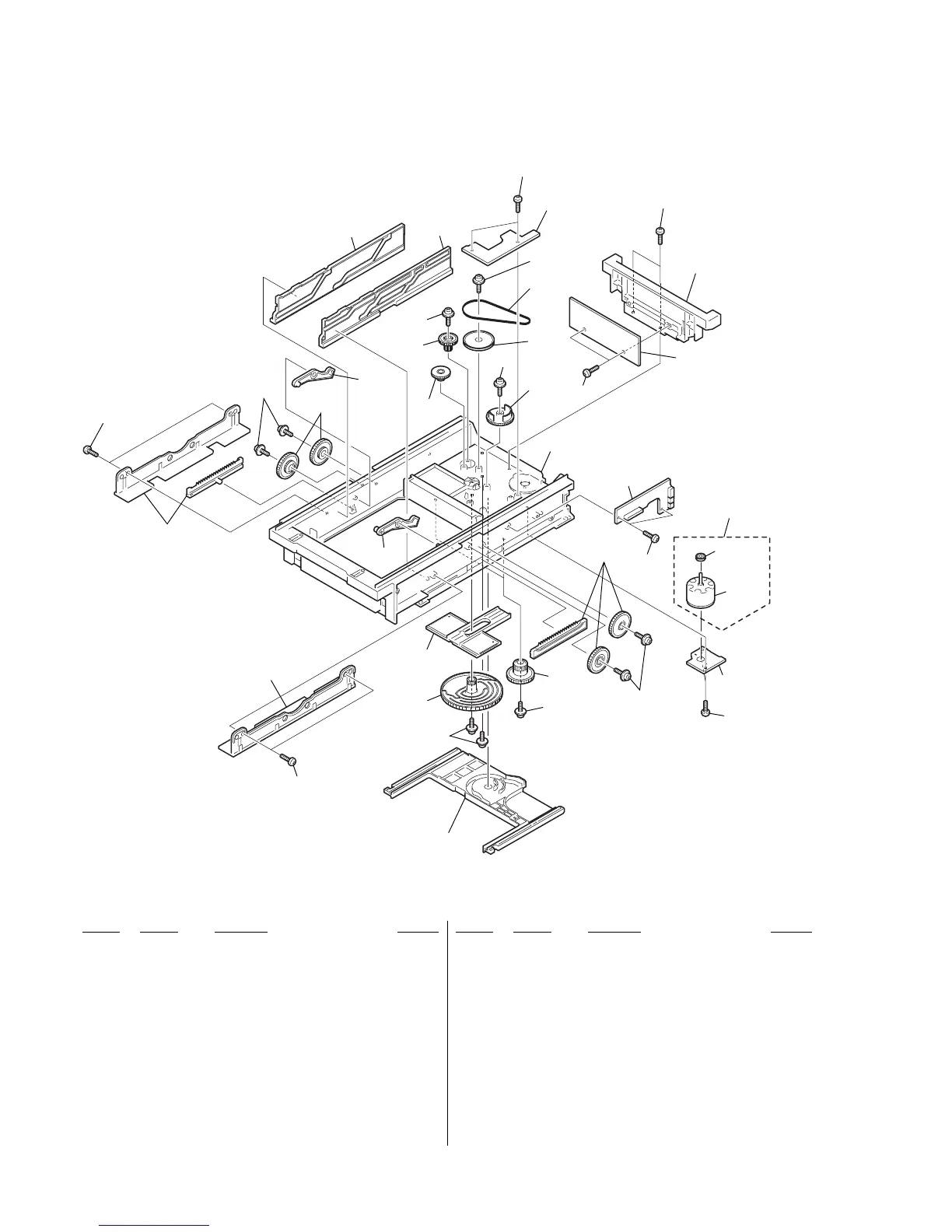

7-5. CD MECHANISM DECK-2
Ver 1.4 2003.09
