HCD-DX150/DX170/DX250

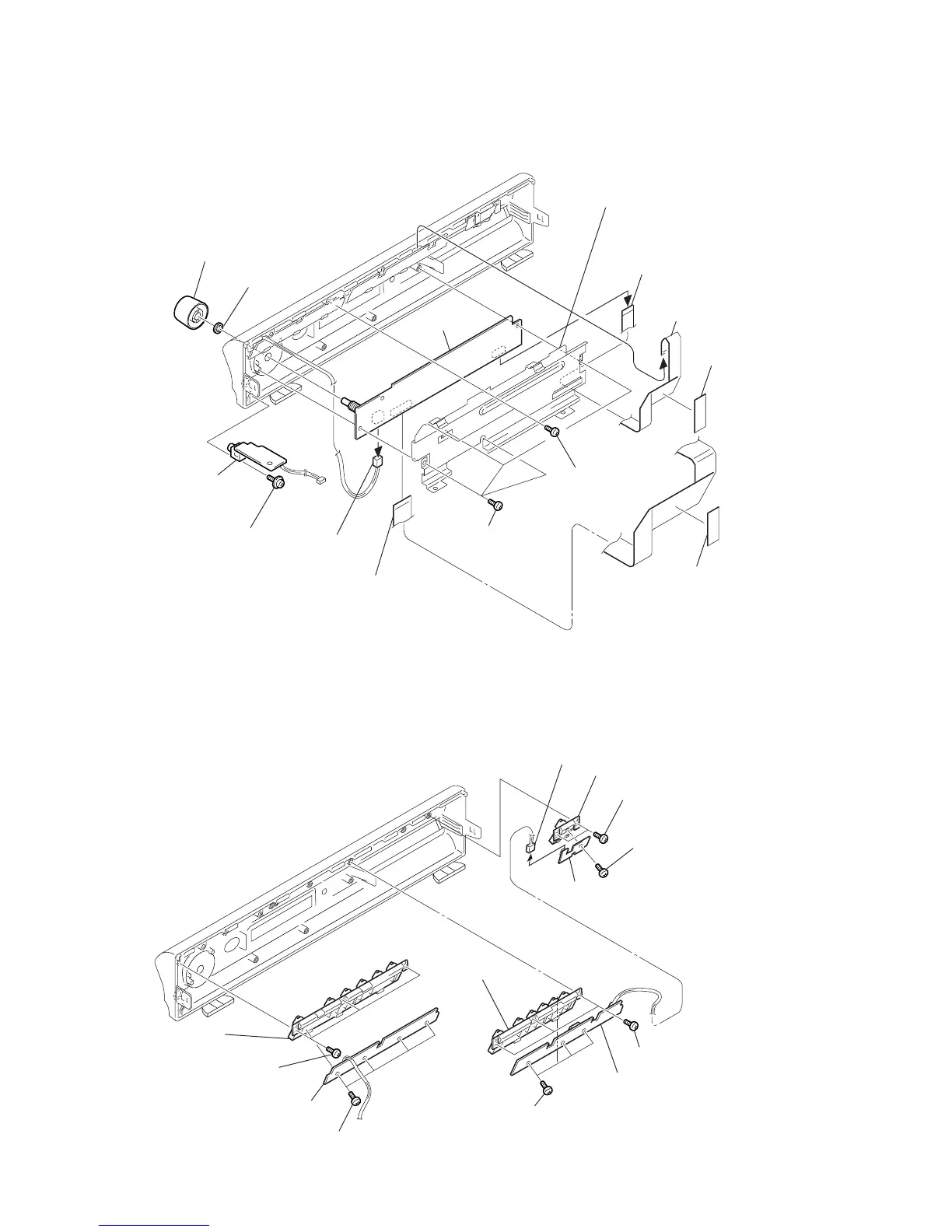

3-4. STBY BOARD, LED BOARD, KEY BOARD
3-3. FL BOARD, H/P BOARD
0 shield (front)
1 froating screw
(PTPWHM 2.6)
2 H/P board
qf FL board
6 shee
t
3 knob (vol)
4 nut
qd connector
(CN805)
5 sheet
qs wire (flat type)
19p(CN801)
qa wire (flat type)
9p(CN802)
9 wire (flat type
)
9p(CN803)
7 two tapping screws
(+P2.6
× 6)
8 four screws (+BV 3)
5 three screws (+BV 2.6
)
9 two screws (+BV 2.6)
8 button (disc) assy
4 button (play)
qd button (power)
3 KEY board
7 LED board
qs STBY board
qa connector
(CN804)
0 screw (+BV 2.6)
6 three screws (+BV 2.6)
1 three screws (+BV 2.6)
2 four screws (+BV 2.6)
