Sony HCD-DX170 - Front Panel Section

67
HCD-DX150/DX170/DX250
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

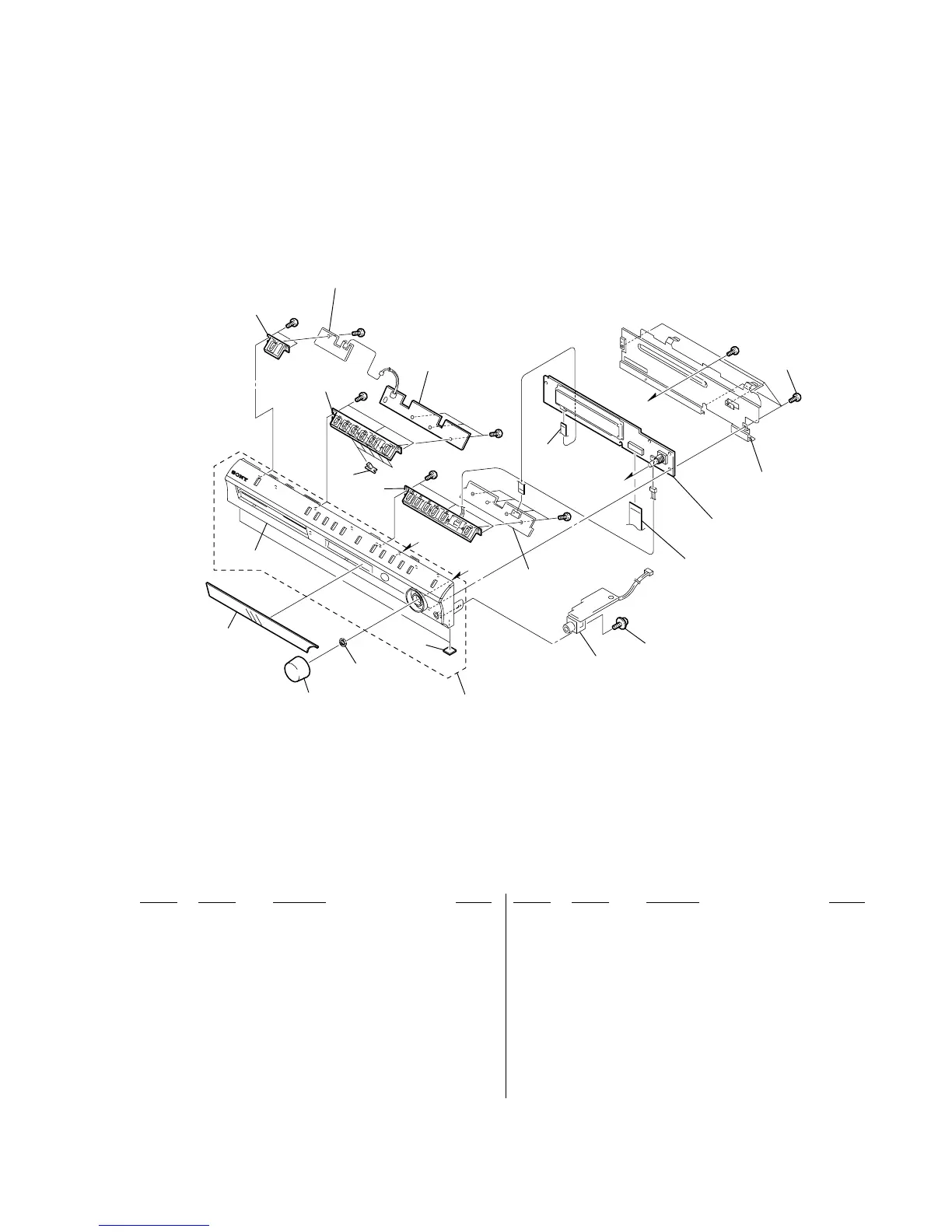

6-2. FRONT PANEL SECTION
51 4-244-969-01 FOOT
52 2-541-506-01 KNOB (VOL)(DX150)
52 2-541-506-11 KNOB (VOL)(DX170/DX250)
53 2-515-794-01 WINDOW (FL)
54 A-1088-090-A FL BOARD, COMPLETE
56 A-1088-093-A LED BOARD, COMPLETE
57 2-515-795-01 BUTTON (PLAY)
58 X-2025-209-1 FRONT PANEL ASSY (DX150:US,CND)
58 X-2050-702-1 FRONT PANEL ASSY (MX, E32)
58 X-2050-704-1 FRONT PANEL ASSY (EA, SP, AUS)
58 X-2050-726-1 FRONT PANEL ASSY (DX170)
58 X-2050-807-1 FRONT PANEL ASSY (DX250)
59 2-569-597-01 BUTTON (POWER)
60 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
61 3-077-331-01 +BV3 (3-CR)
62 1-828-363-11 WIRE (FLAT TYPE) (19 CORE)
63 1-828-957-11 WIRE (FLAT TYPE) (9 CORE)
64 2-630-339-01 BUTTON (DISC)
65 2-515-793-01 INDICATOR
#2 7-685-862-04 SCREW (+BV2.6)
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-685-133-11 SCREW (+P2.6X6)
a
b
b
a
not
supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
51
52
53
58
60
59
62
54
63
61
64
65
56
57
#4
#2
#2
#2
#2
#2
#2
Ver. 1.2
