Sony HCD-DX170 - Printed Wiring Board - MAIN Section (Side A)

4141
HCD-DX150/DX170/DX250
HCD-DX150/DX170/DX250

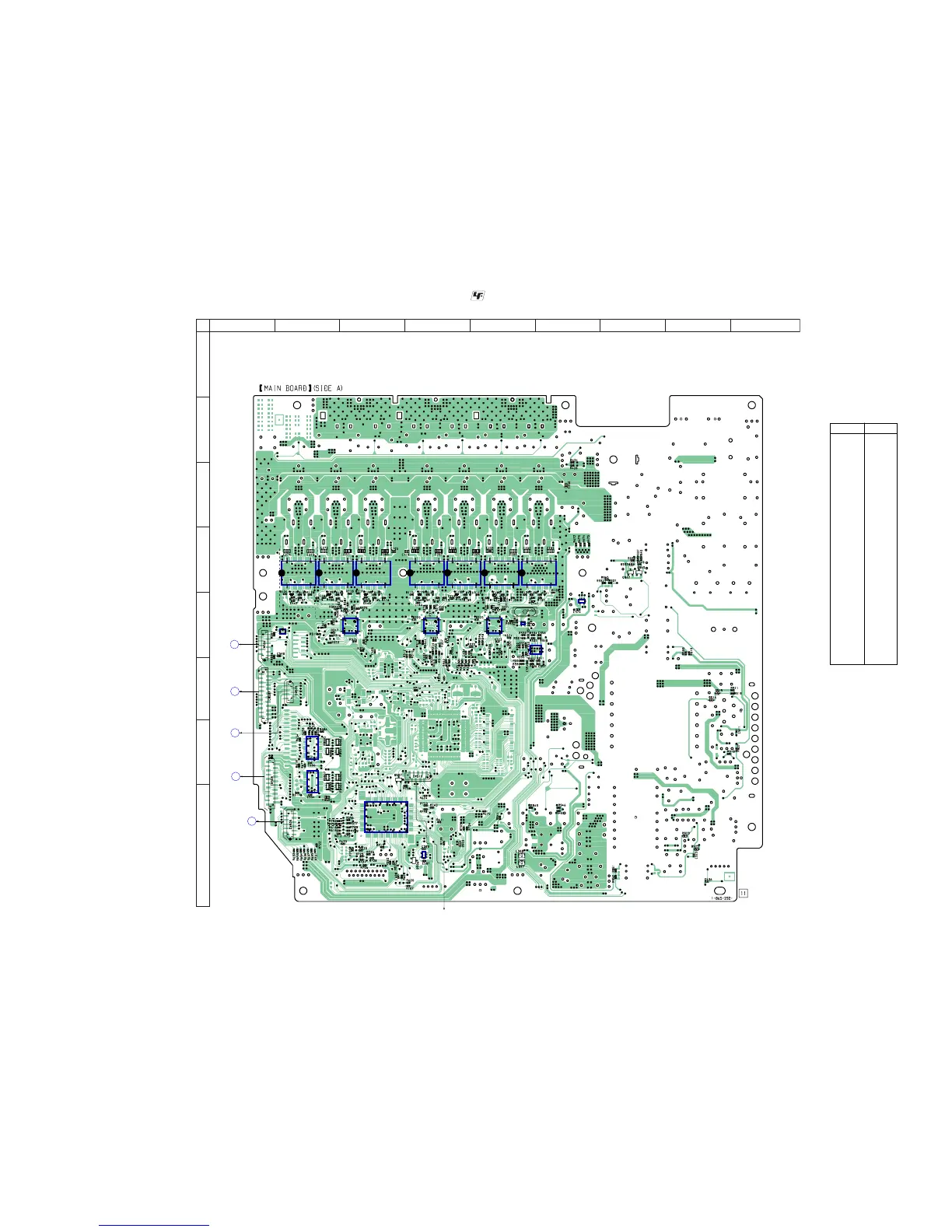

6-10. PRINTED WIRING BOARD – MAIN SECTION (SIDE A) –
• See page 27 for Circuit Boards Location. :Uses unleaded solder.
170,250
DMB10
BOARD
CN4501
(Page 35)
A
IO BOARD
CN601
(Page 52)
F
DMB10
BOARD
CN302
(Page 35)
C
TRANSLATION
BOARD
CN701
(Page 33)
G
DMB10
BOARD
CN106
(Page 35)
for PROGRAM WRITER
D
EXCEPT SP
170,
250
E
E
1
3
4
5
1
45
8
1
3
4
5
E
E
IC106 IC105 IC104 IC103
IC109
IC110
IC503
IC510
IC504
IC509
IC511
IC107 IC102
IC108
IC305
IC301
IC303
IC101
12
A
B
C
D
E
G
H
F
34567 9
8
• Semiconductor
Location
Ref. No. Location
D503 H-4
D914 F-8
D915 F-8
D923 H-8
D925 H-8
D932 D-7
IC101 D-6
IC102 D-5
IC103 D-4
IC104 D-4
IC105 D-3
IC106 D-2
IC107 D-2
IC108 E-5
IC109 E-4
IC110 E-3
IC301 E-6
IC303 D-6
IC305 E-5
IC503 E-2
IC504 H-2
IC509 H-3
IC510 G-2
IC511 H-4
Q506 H-4
Q507 G-3
Q943 D-7
Q947 D-7
