Sony HCD-DX170 - 6 Exploded Views; Overall Section

66
HCD-DX150/DX170/DX250
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Abbreviation
AUS: Australian model.
CND : Canadian model.
E32 : 110-240 V AC Area in E model.
EA : Saudi Arabia model.
MX : Mexican model.
SP : Singapore model.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

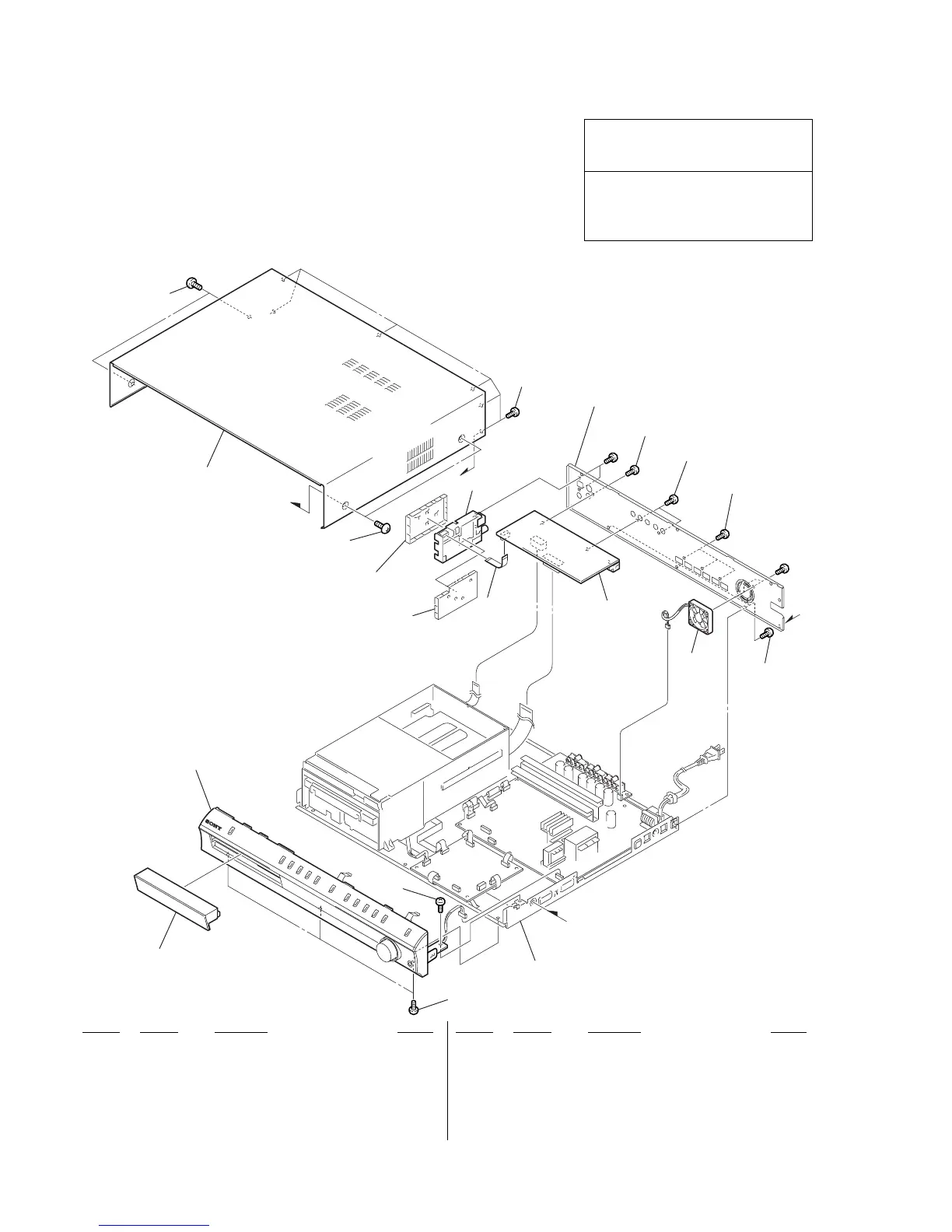

7-1. OVERALL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
1
7
7
7
9
9
9
9
6
5
4
3
2
8
8
#1
#2
front panel assy section
chassis section
a
a
b
b
not
supplied
not
supplied
not
supplied
1 X-2025-212-1 DVD LID ASSY
2 2-515-796-01 CASE
3 A-1074-640-A TUNER UNIT (DTP-005)(UC)(US, CND)
3 A-1074-641-A TUNER UNIT (DTP-005)(SP) (EXCEPT US,CND)
4 1-828-962-11 WIRE (FLAT TYPE) (11 CORE)
5 A-1088-069-A IO BOARD, COMPLETE
6 1-787-331-11 FAN, D.C.
7 3-077-331-01 +BV3 (3-CR)
8 3-363-099-51 SCREW (CASE 3 TP2)
9 3-077-331-21 +BV3 (3-CR)
#1 7-685-881-09 SCREW +BVTT 4X8 (S)
#2 7-685-862-04 SCREW (+BV2.6)
