Sony HCD-DX170 - Chassis Section

68
HCD-DX150/DX170/DX250
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

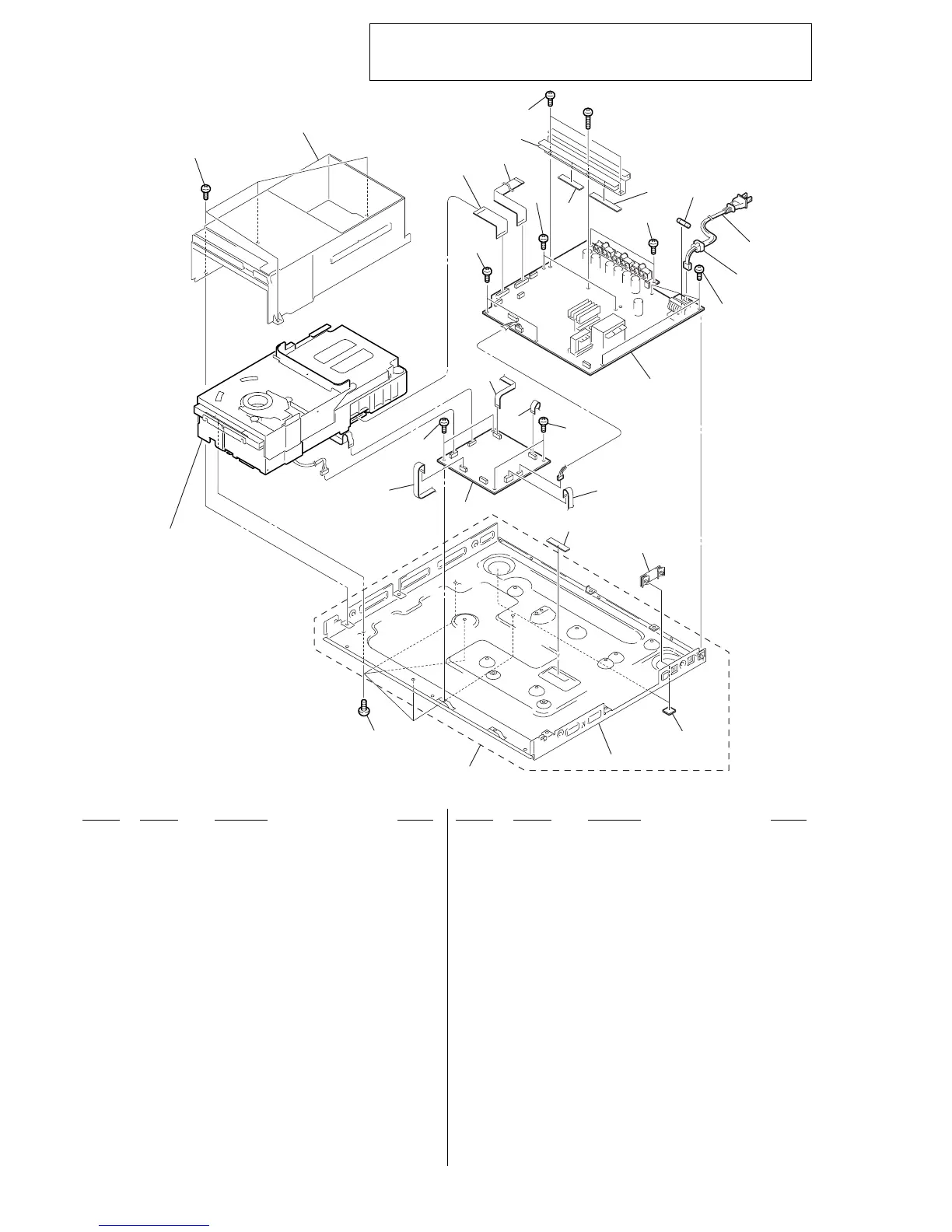

7-3. CHASSIS SECTION
101 3-077-331-01 +BV3 (3-CR)
102 1-829-927-11 WIRE (FLAT TYPE) (11CORE)
103 4-244-969-01 FOOT
0 104 1-696-847-22 CORD, POWER (AUS)
0 104 1-783-531-91 CORD, POWER (US,CND)
0 104 1-824-090-11 CORD, POWER (MX)
0 104 1-828-528-11 CORD, POWER (E32, EA, SP)
✩ 105 A-1088-070-A DMB10 BOARD, COMPLETE
(DX150 :US, CND, MX, E32)
✩ 105 A-1104-418-A DMB10 BOARD, COMPLETE (EA, AUS)
✩ 105 A-1104-559-A DMB10 BOARD, COMPLETE (DX170)
✩ 105 A-1105-154-A DMB10 BOARD, COMPLETE (DX250)
✩ 105 A-1110-779-A DMB10 BOARD, COMPLETE (SP)
✩ 105 A-1121-332-A DMB11 BOARD, COMPLETE
(DX150 :US, CND, MX, E32)
✩ 105 A-1121-461-A DMB11 BOARD, COMPLETE (DX170)
✩ 105 A-1121-479-A DMB11 BOARD, COMPLETE (DX250)
✩ 105 A-1123-578-A DMB11 BOARD, COMPLETE (EA, AUS)
✩ 105 A-1124-250-A DMB11 BOARD, COMPLETE (SP)
106 A-1088-066-A MAIN BOARD, COMPLETE (DX150: US, CND)
106 A-1104-401-A MAIN BOARD, COMPLETE (MX)
106 A-1104-416-A MAIN BOARD, COMPLETE (AUS)
106 A-1104-552-A MAIN BOARD, COMPLETE (DX170)
106 A-1105-147-A MAIN BOARD, COMPLETE (DX250)
106 A-1110-722-A MAIN BOARD, COMPLETE (EA)
106 A-1110-742-A MAIN BOARD, COMPLETE (E32)
106 A-1110-778-A MAIN BOARD, COMPLETE (SP)
107 4-217-350-11 STOPPER, CORD
108 4-254-947-01 SHEET (AMP), RADIATION (DX170/DX250)
108 4-254-947-11 SHEET (AMP), RADIATION
108 4-254-954-01 SHEET (DMB), RADIATION
109 1-828-382-11 WIRE (FLAT TYPE) (23 CORE)
110 1-828-369-11 WIRE (FLAT TYPE) (21 CORE)
111 1-828-323-11 WIRE (FLAT TYPE) (11 CORE)
112 1-926-361-30 WIER (FLAT TYPE) (13 CORE)
113 1-926-361-21 WIRE (FLAT TYPE) (7 CORE)
0 F901 1-532-506-32 FUSE (6.3A/250V) (E32, EA, SP, AUS)
0 F901 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V)
(US,CND,MX)
101
101
101
112
113
111
102
101
101
110
109
101
101
101
101
104
107
108
108
108
106
105
#3
not supplied
not supplied
not supplied
not supplied
DVD mechanism
deck section
not supplied
F901
103
Ver. 1.2
✩ New part of EEP ROM (IC103) on the DMB10 board or DMB11 board cannot be
used. Therefore, if the mounted DMB10 board (A-1088-070-A, etc.) is replaced,
exchange new EEP ROM (IC103) with that used before the replacement.
