Sony HCD-DX170 - IO Board, DC Fan; DMB10 Board

13
HCD-DX150/DX170/DX250

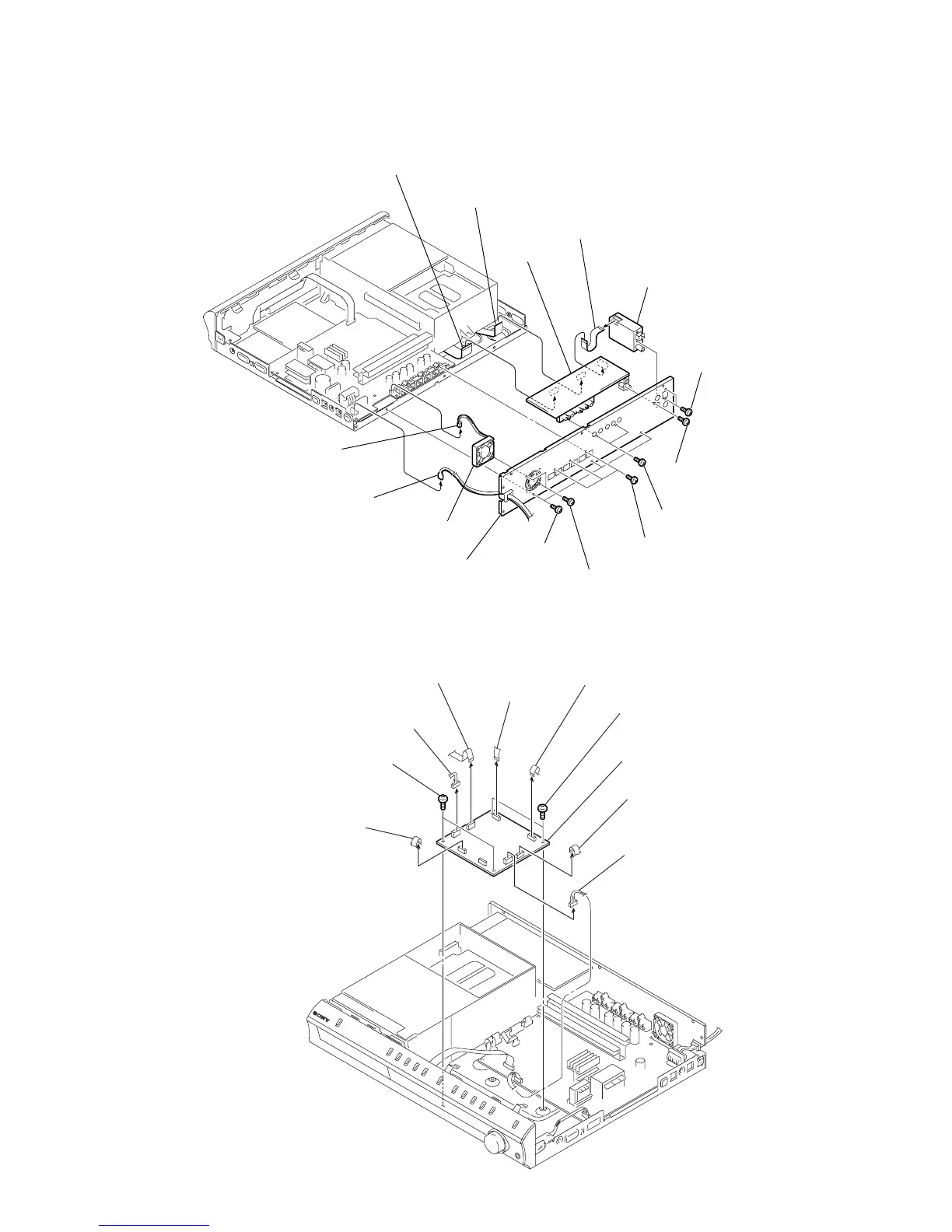

3-5. IO BOARD, DC FAN
3-6. DMB10 BOARD
2 connector
(CN300)
1 connector
(CN901)
8 DC fan
qa tuner
qf IO board
back panel
6 wire (flat type)
13p(CN201)
0 wire (flat type)
11p(CN101)
5 wire (flat type)
23p(CN601)
qs screw (+BV 3)
qd two screws (+BV 3)
4 three screws (+BV 3)
3 three screws
(+BV 3)
9 two screws (+BV 2.6 × 6
)
7 two screws (BVTT 4 × 8)
0 DMB10 board
2 connector
(CN201)
7 connector
(CN401)
3 wire (flat type)
24p(CN101)
4 wire (flat type)
13p(CN4802)
6 wire (flat type)
11p(CN4501)
5 wire (flat type)
7p(CN302)
1 wire (flat type)
13p(CN106)
8 two screws (+BV 3)
9 two screws (+BV 3
)
