2
HCD-DX150/DX170/DX250

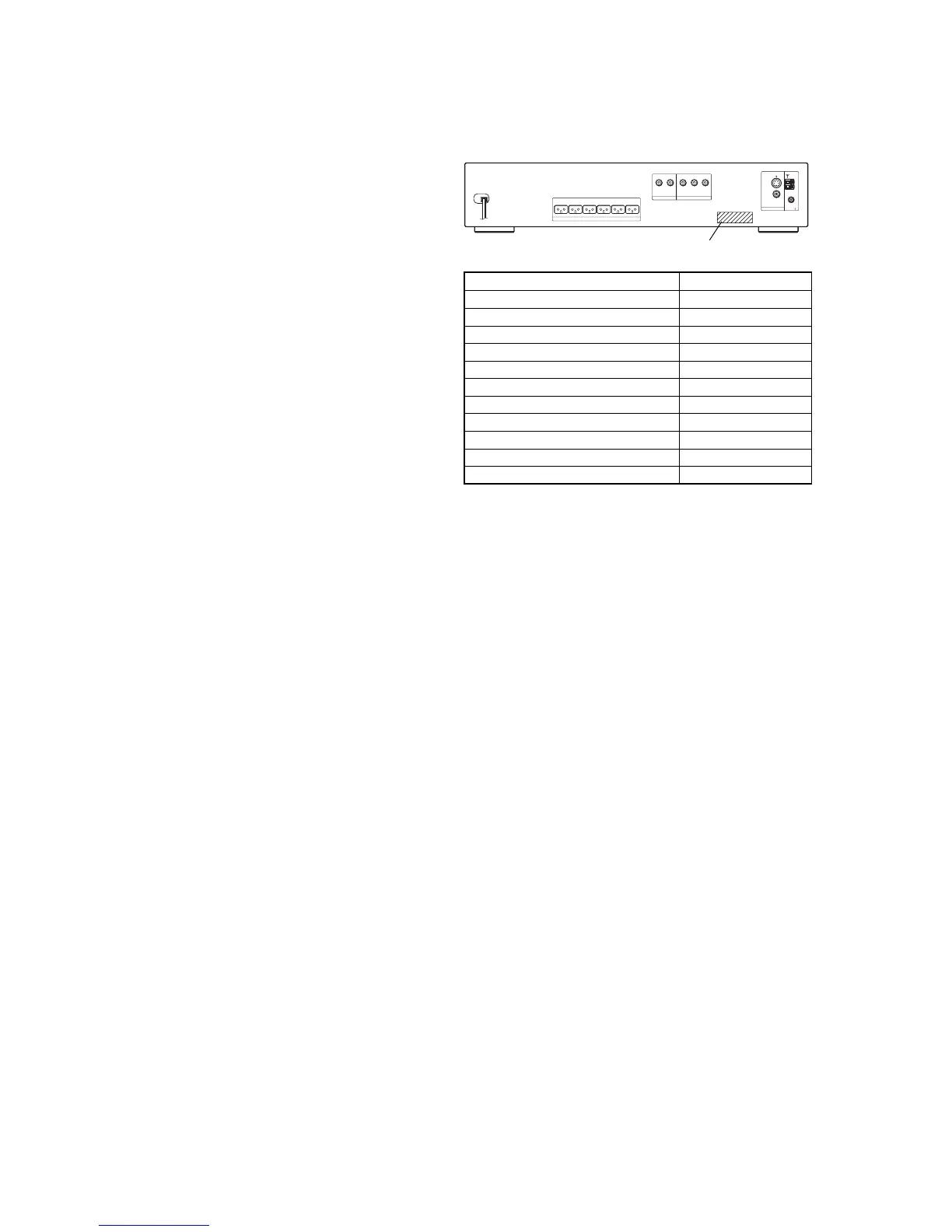

MODEL IDENTIFICATION
– Rear Panel –
Model Part No.
HCD-DX150 US 2-541-507-0[]
HCD-DX150 CND 2-541-507-1[]
HCD-DX150 AUS 2-541-507-2[]
HCD-DX150 MX 2-541-507-3[]
HCD-DX150 EA 2-541-507-4[]
HCD-DX150 E32 2-541-507-5[]
HCD-DX150 SP 2-541-507-6[]
HCD-DX170 US 2-588-786-0[]
HCD-DX170 CND 2-588-786-1[]
HCD-DX250 US 2-588-786-2[]
HCD-DX250 CND 2-588-786-3[]
•Abbreviation
AUS: Australian model.
CND : Canadian model.
E32 : 110 – 240 V AC Area in E model.
EA : Saudi Arabia model.
MX : Mexican model.
SP : Singapore model.
FRONT R FRONT L SURR R SURR L CENTER WOOFER
SPEAKER
Y
P B /C B P R /C R
AUDIO IN
DVD ONLY
VIDEO
VIDEOS(DVD ONLY)
R L
VIDEO/SAT
COMPONENT VIDEO OUT
MONITOR OUT
COAXIAL
AM
FM
75
Part No.
Signal format system
North American, Latin, and Mexican models:
Other models:
Frequency response (at 2 CH STEREO mode)
Tuner section
System
FM tuner section
Tuning range
North American models:
Other models:
Antenna (aerial)
Antenna (aerial) terminals
Intermediate frequency
AM tuner section
Tuning range
North American, Latin, and Mexican models:
Middle eastern models:
Other models:
Antenna (aerial)
Intermediate frequency
Video section
Outputs
(CD: λ = 790 nm)
Emission duration:
continuous
NTSC
NTSC/PAL
DVD (PCM): 2 Hz to 22
kHz (±1.0 dB)
CD: 2 Hz to 20 kHz (±1.0
dB)
PLL quartz-locked digital
synthesizer system
87.5 – 108.0 MHz
(100 kHz step)
87.5 – 108.0 MHz
(50 kHz step)
FM wire antenna (aerial)
75 ohms, unbalanced
10.7 MHz
530 – 1,710 kHz (with the
interval set at 10 kHz)
531 – 1,710 kHz (with the
interval set at 9 kHz)
531 – 1,602 kHz (with the
interval set at 9 kHz)
530 – 1,710 kHz (with the
interval set at 10 kHz)
531 – 1,602 kHz (with the
interval set at 9 kHz)
AM loop antenna (aerial)
450 kHz
Video: 1 Vp-p 75 ohms
S video:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
PB/CB, PR/CR: 0.7 Vp-p
75 ohms
General
Power requirements
North American and Mexican models:
Other models:
Power consumption
120 V AC, 60 Hz
220 – 240 V AC, 50/60 Hz
On: 145 W (DAV-DX150)
On: 160 W (DAV-DX170/DX250)
Dimensions (approx.)
Mass (approx.)
Standby: 0.3 W (at the
Power Saving Mode)
430 × 88 × 415 mm
(17 × 3
1
/2 × 16
3
/8 inches)
(w/h/d) incl. projecting
parts
4.9 kg (10 lb 13 oz) (DAV-DX150)
5.0 kg (11 lb 1 oz) (DAV-DX170/DX250)
Design and specifications are subject to change
without notice.
DVD system
Laser Semiconductor laser
(DVD: λ = 650 nm)
Central/South American models:
110 – 240 V AC, 50/60 Hz
