Sony HCD-DX20 - Printed Wiring Board - BD Section

2222
HCD-DX20/RG30

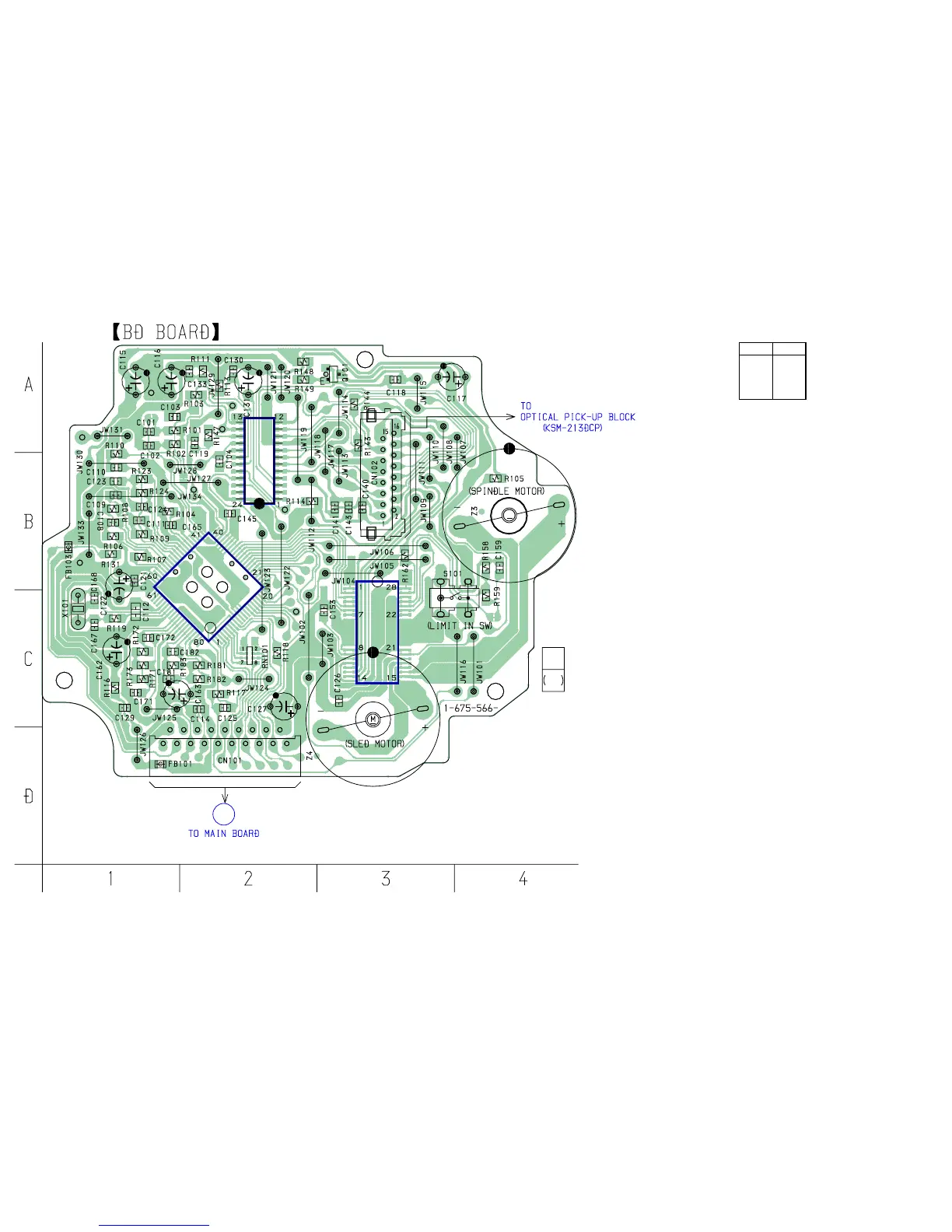

6-3. PRINTED WIRING BOARD – BD SECTION –
• See page 19 for Circuit Boards Location.
IC101
IC102
IC103
(Page 24)
E
CN102
TP
(VC)
TP
(RF)
TP(TE0)
TP(FE0)
TP(FE1)
TP(D GND)
TP(AGC CON)
TP
(XPCK)
18
19
2
1
M
23
23
Ref. No. Location
IC101 B-2
IC102 C-3
IC103 B-2
Q101 A3
• Semiconductor
Location
