Sony HCD-DX20 - Front Panel Section Exploded View

44
HCD-DX20/RG30

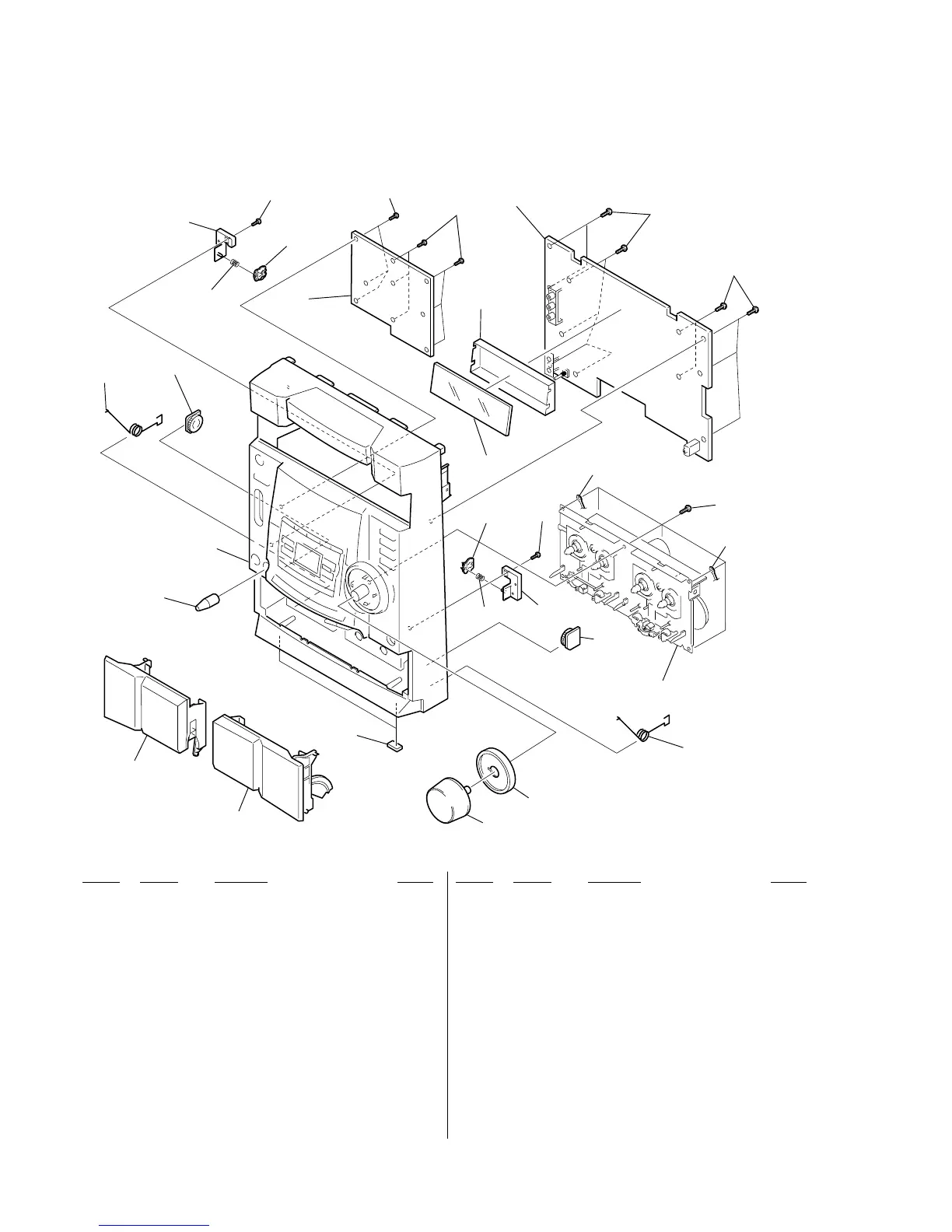

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
62 4-224-560-01 CAM (L), HEART
63 4-951-620-01 SCREW (2.6X8), +BVTP
64 1-681-447-11 KEY BOARD
65 4-234-016-01 FL HOLDER
66 A-4476-797-A PANEL BOARD, COMPLETE
(DX20:E2, E51, EA, SP, AR, MX)
66 A-4725-721-A PANEL BOARD, COMPLETE (DX20:KR)
66 A-4725-982-A PANEL BOARD, COMPLETE (DX20:TH)
66 A-4726-035-A PANEL BOARD, COMPLETE (RG30)
67 4-224-559-01 CAM(R), HEART
68 4-224-561-01 BRACKET (HEART CAM R)
69 4-233-982-01 CASSETTE DOOR SPRING R
70 1-796-123-11 DECK, MECH (TC)
FLD1 1-518-729-11 INDICATOR TUBE, FLUORESCENT
51 4-234-019-01 VOLUME KNOB (RG30)
51 4-234-019-11 VOLUME KNOB (DX20)
52 4-234-015-01 VOL KNOB RING
53 X-4953-757-1 PANEL FRONT ASSY (DX20)
53 X-4953-887-1 PANEL FRONT ASSY (RG30)
54 4-225-252-01 CUSHION (FOOT)
55 X-4953-759-1 CASSETTE WINDOW R ASSY (DX20)
55 X-4953-889-1 CASSETTE WINDOW R ASSY (RG30)
56 X-4953-758-1 CASSETTE WINDOW L ASSY (DX20)
56 X-4953-888-1 CASSETTE WINDOW L ASSY (RG30)
57 4-231-805-01 KNOB (MIC) (DX20)
58 4-233-981-01 CASSETTE DOOR SPRING L
59 4-224-104-11 DAMPER
60 4-224-562-01 BRACKET (HEART CAM L)
61 4-224-803-01 SPRING (PUSH), COMPRESSION
55
54
56
53
51
52
58
60
59
59
FLD1
not supplied
63
63
69
70
57
61
62
63
*63
*63
*63
*63
64
65
66
68
61
67
not supplie
d
* For service only (Be sure to refer to "Service note" on page 4.)
