Sony HCD-DZ20 - Case; Front Panel Assy

12
HCD-DZ20

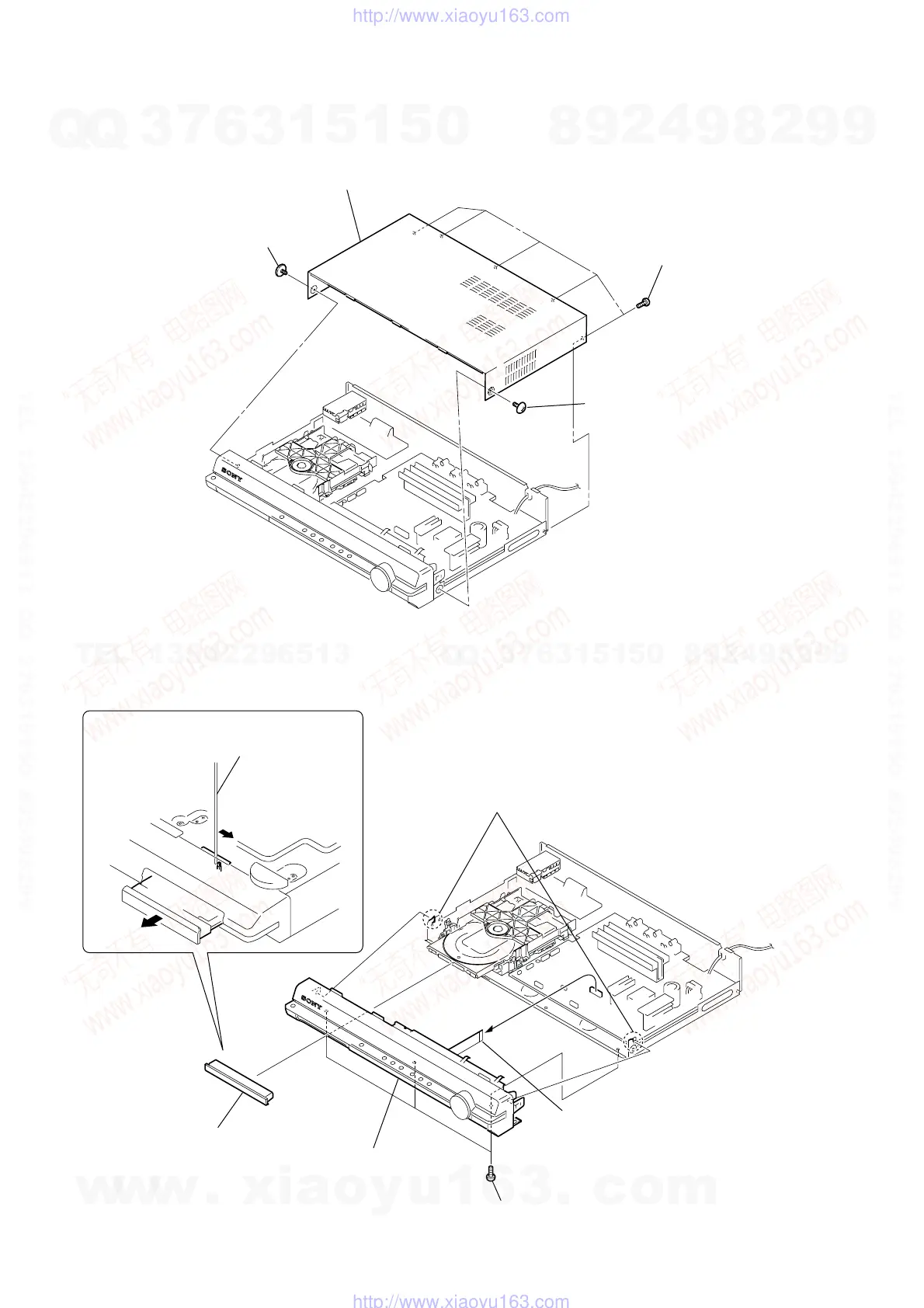

3-2. CASE
4 case
1 screw
(CASE3 TP2)
2 screw
(CASE3 TP2)
3 five screws
(+BVTP 3 × 8)
6 two claws
1 The lever is moved in the direction
of the arrow with the thin rod.
2
3 loading panel
7 front panel assy
5 three screws
(+BV 3 × 6)
4 wire (flat type)
15core (CN509)
3-3. FRONT PANEL ASSY
