Sony HCD-DZ20 - FL Board; KEY Board, P-SW Board

13
HCD-DZ20

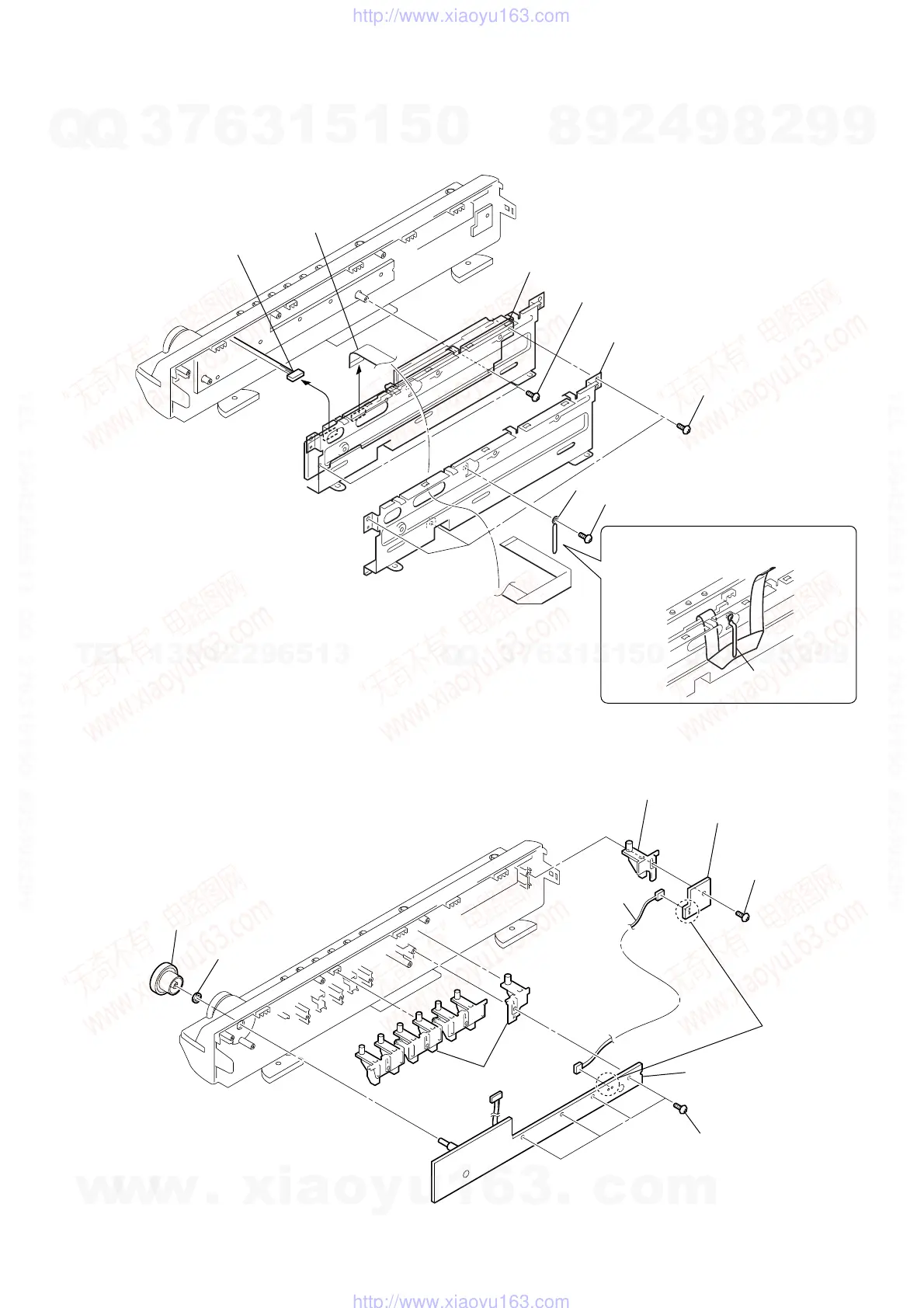

3-5. KEY BOARD, P-SW BOARD
3-4. FL BOARD
4 shield (front)
8 FL board
3 three screws
(+BVTP 2.6
× 10)
1 screw
(+BVTP 2.6
× 10)
2 clamp
clamp
5 two screws
(+BVTP 2.6
× 10)
7 wire (flat type)
15core (CN801)
6 connector
6p (CN805)
Route the wire (flat type) as shown below.
1 knob (vol)
2 nut
q; KEY board
4 button (AIO)
7 Remove th
e
soldering.
8 harness
3 four screws
(+BVTP
2.6 × 10 )
5 screw
(+BVTP
2.6 × 10 )
6 button (AIO)
9 P- SW board
