57
HCD-DZ20
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

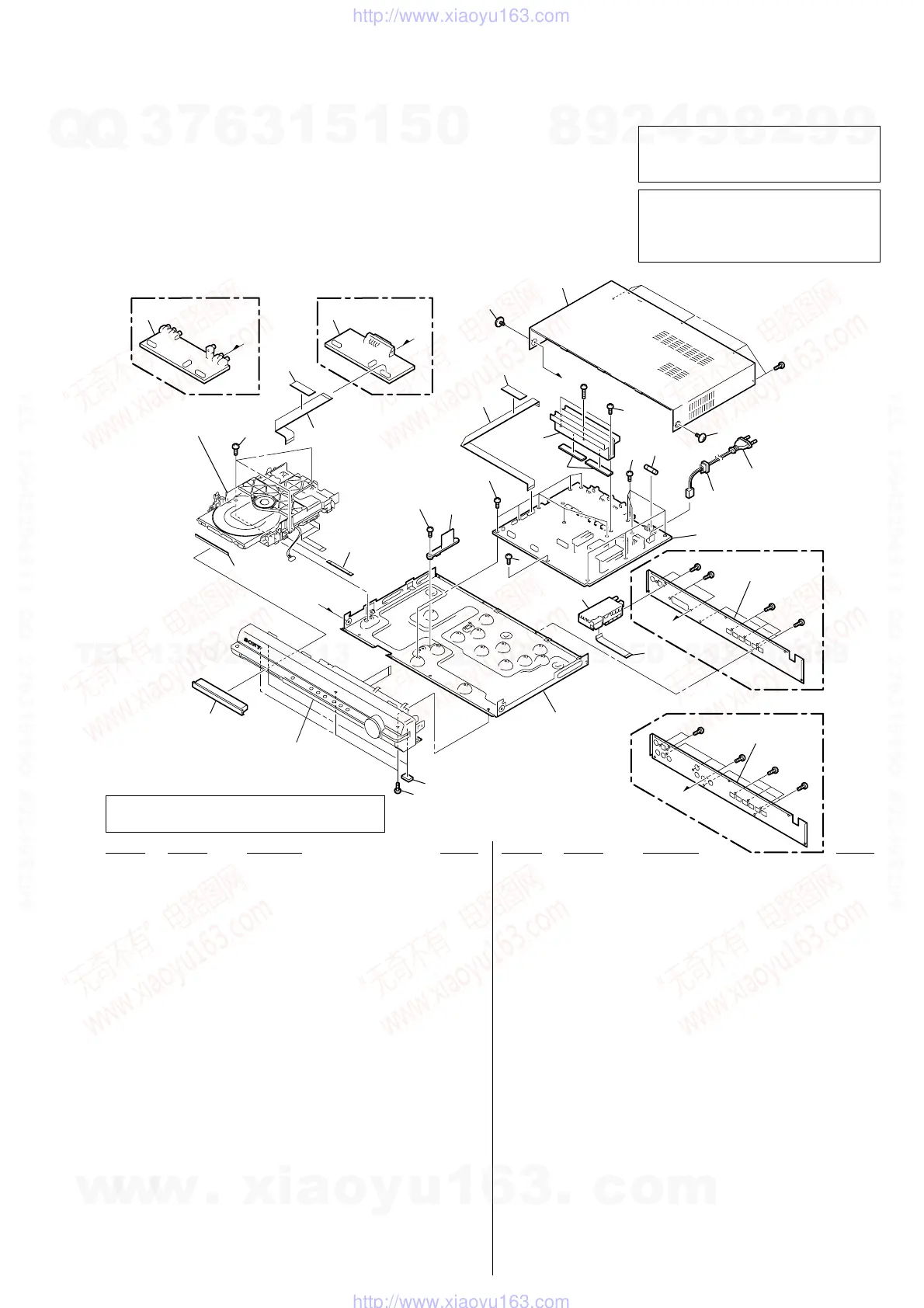

7-1. OVERALL SECTION
1 2-889-987-01 PANEL, LOADING
2 3-077-331-21 +BV3 (3-CR)
3 4-232-478-31 FOOT
4 1-828-286-51 WIRE (FLAT TYPE) (5 CORE)
5 1-828-350-51 WIRE (FLAT TYPE)(17 CORE) (AEP, UK)
5 1-828-340-51 WIRE (FLAT TYPE)(15 CORE) (EXCEPT AEP, UK)
6 A-1220-177-A IO BOARD, COMPLETE (AEP, UK)
6 A-1220-207-A IO BOARD, COMPLETE (RU)
6 A-1251-054-A IO BOARD, COMPLETE (EXCEPT AEP, UK, RU)
7 1-828-333-51 WIRE (FLAT TYPE)(13 CORE)
8 3-363-099-51 SCREW (CASE 3 TP2)
9 2-892-574-11 CASE (AEP, UK, E32, MX, AR)
9 2-892-574-21 CASE (E3, E12, RU, SP, TH)
10 3-077-331-11 +BV3 (3-CR)
0 11 1-751-520-31 CORD, POWER (UK)
0 11 1-777-071-83 CORD, POWER (AEP, E32, E3, E12, RU, SP)
0 11 1-827-226-31 CORD, POWER (MX)
0 11 1-829-387-11 CORD, POWER (AR)
0 11 1-834-288-11 CORD, POWER (TH)
0 12 3-703-244-00 BUSHING (2104), CORD (EXCEPT MX, TH)
0* 12 3-703-571-12 BUSHING (S) (4516), CORD (MX)
0 12 4-916-783-01 BUSHING, CORD (TH)
9 13 A-1244-319-A MAIN BOARD, COMPLETE (AEP)
9 13 A-1244-320-A MAIN BOARD, COMPLETE (UK)
9 13 A-1244-321-A MAIN BOARD, COMPLETE (RU)
13 A-1244-322-A MAIN BOARD, COMPLETE (E12)
13 A-1244-323-A MAIN BOARD, COMPLETE (E3)
13 A-1244-324-A MAIN BOARD, COMPLETE (E32)
13 A-1244-325-A MAIN BOARD, COMPLETE (MX)
13 A-1244-326-A MAIN BOARD, COMPLETE (AR)
13 A-1258-746-A MAIN BOARD, COMPLETE (SP, TH)
14 1-693-724-11 TUNER (FM/AM) (AEP, UK)
14 1-693-725-11 TUNER (FM/AM) (RU)
14 1-693-726-11 TUNER (FM/AM) (EXCEPT AEP, UK, RU, TH)
14 1-693-727-11 TUNER (FM/AM) (TH)
15 1-828-954-51 WIRE (FLAT TYPE)(9 CORE) (EXCEPT AEP, UK)
15 1-828-964-51 WIRE (FLAT TYPE)(11 CORE) (AEP, UK)
16 3-100-158-01 SHEET, RADIATION
0F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5)(8A/125V)
(MX)
0F901 1-576-233-51 FUSE (H.B.C.) (T6.3AH/250V)
(EXCEPT MX, E32)
0F901 1-576-300-51 FUSE, H.B.C. (T8AH/250V) (E32)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#3 7-685-862-09 SCREW +BVTT 2.6X6 (S)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
•Abbreviation
AR : Argentine model
E3 : 220 – 240 V AC area in E model
E12 : 220 – 240 V AC area in E model
E32 : 110 – 240 V AC area in E model
MX : Mexican model
RU : Russian model
SP : Singapore model
TH : Thai model
a
front panel assy
2
1
3
not
supplied
not
supplied
not supplied
not supplied
not supplied
#1
#1
#1
a
b
8
8
9
#1
#3
#2
2
2
2
14
13
15
2
2
4
6
5
7
10
16
F901
12
11
b
not
supplied
not supplied
not
supplied
6
b
#1
#1
#1
b
#3
DVD mechanism
deck section
(CDM85-DVBU102)
AEP, UK
AEP, UK
EXCEPT AEP, UK
EXCEPT AEP, UK
Note: If the wire (flat type) was replaced, fold it some
as the wire (flat type) before replacement.
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
