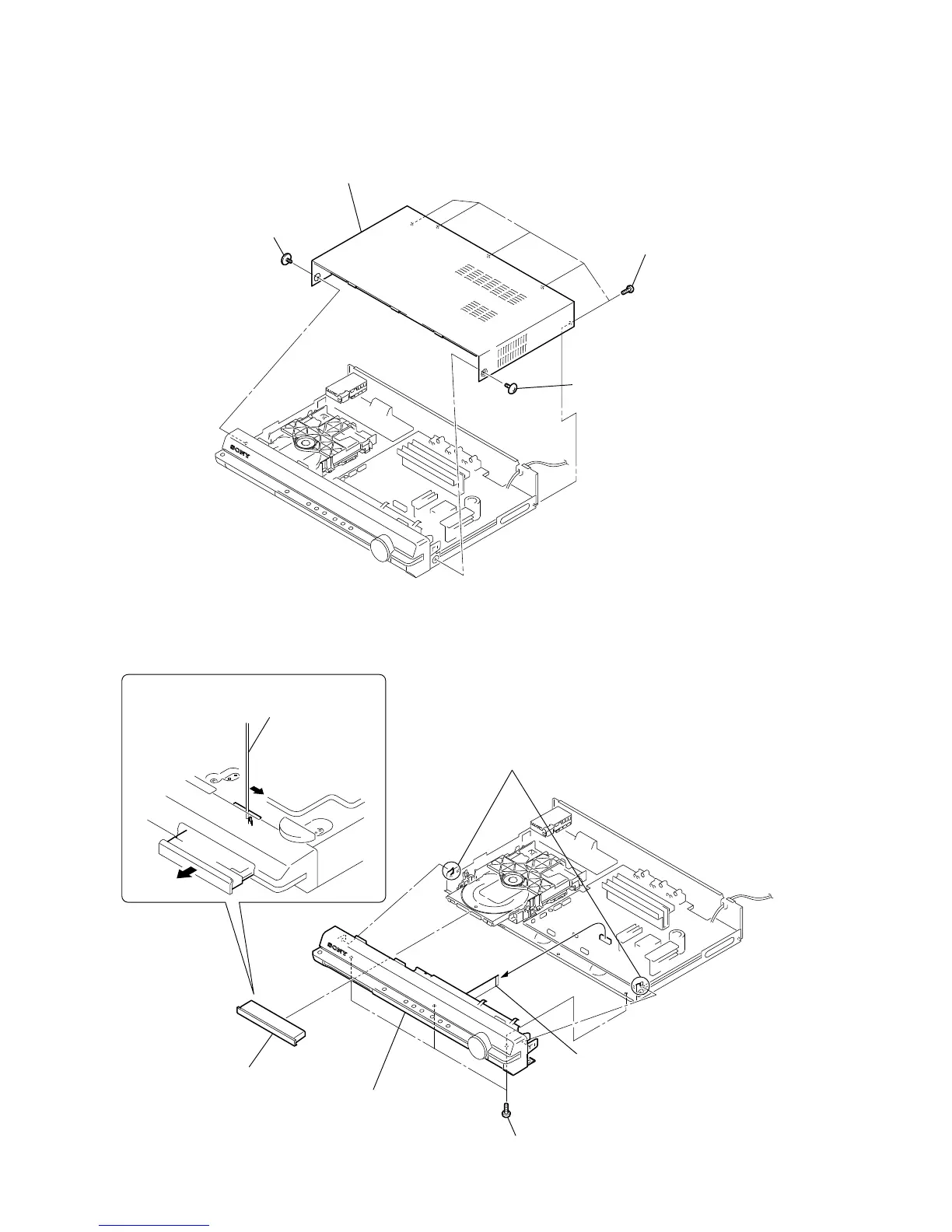

Note: Follow the disassembly procedure in the numerical order shown below.
3-1. CASE
3-2. FRONT PANEL ASSY
 case
 screw
(CASE3 TP2)
 screw
(CASE3 TP2)
 five screws
(+BVTP 3 × 8)
 two claws
 The lever is moved in the direction
of the arrow with the thin rod.

 loading panel
 front panel assy
 three screws
(+BV3 (3-CR))
 wire (flat type) (15 core)
(CN509)
