Sony HCD-DZ30 - Exploded Views of Unit Assemblies

56
HCD-DZ30
front panel section
2
1
3
not supplied
not supplied
not supplied
#1
#1
#1
#3
#2
2
2
2
13
15
16
2
4
6
5
7
10
14
F901
12
11
not supplied
not supplied
not supplied
not supplied
TU901
DVD mechanism
deck section
(CDM85-DVBU102)
8
8
9
#1
"
#
#
"
SECTION 7
EXPLODED VIEWS
1 2-889-987-11 PANEL, LOADING
2 3-077-331-21 +BV3 (3-CR)
3 4-232-478-31 FOOT
4 1-828-286-51 WIRE (FLAT TYPE) (5 CORE)
5 1-828-340-51 WIRE (FLAT TYPE) (15 CORE) (EXCEPT AEP,UK)
5 1-828-350-51 WIRE (FLAT TYPE) (17 CORE) (AEP,UK)
6 A-1251-054-A IO BOARD, COMPLETE
(E3,E12,E32,E87,AR,EA,MX,SP)
6 A-1382-400-A IO BOARD, COMPLETE (AEP,UK)
6 A-1504-717-A IO BOARD, COMPLETE (RU)
7 1-828-333-51 WIRE (FLAT TYPE) (13 CORE)
8 3-363-099-22 SCREW (CASE 3 TP2)
9 2-892-574-31 CASE
10 3-077-331-11 +BV3 (3-CR)
0 11 1-777-071-83 CORD, POWER (EXCEPT UK,E87,AR,MX)
0 11 1-829-387-11 CORD, POWER (AR)
0 11 1-829-627-11 CORD, POWER (E87,MX)
0 11 1-835-078-21 CORD, POWER (UK)
12 3-703-244-00 BUSHING (2104), CORD (EXCEPT E87,MX)
* 12 3-703-571-12 BUSHING (S) (4516), CORD (E87,MX)
9 13 A-1382-372-A MAIN BOARD, COMPLETE (for SERVICE) (AEP)
9 13 A-1382-388-A MAIN BOARD, COMPLETE (for SERVICE) (UK)
9 13 A-1382-405-A MAIN BOARD, COMPLETE (for SERVICE) (SP)
9 13 A-1382-415-A MAIN BOARD, COMPLETE (for SERVICE)
(E87,MX)
9 13 A-1504-720-A MAIN BOARD, COMPLETE (for SERVICE) (RU)
9 13 A-1504-728-A MAIN BOARD, COMPLETE (for SERVICE) (E12)
9 13 A-1504-738-A MAIN BOARD, COMPLETE (for SERVICE) (E32)
9 13 A-1504-746-A MAIN BOARD, COMPLETE (for SERVICE) (AR)
9 13 A-1552-799-A MAIN BOARD, COMPLETE (for SERVICE) (E3,EA)
14 3-100-158-01 SHEET, RADIATION
15 1-828-954-51 WIRE (FLAT TYPE) (9 CORE) (EXCEPT AEP,UK)
15 1-828-964-51 WIRE (FLAT TYPE) (11 CORE) (AEP,UK)
0 16 1-569-008-22 ADAPTOR, CONVERSION 2P (E32)
0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (8A/125V) (E87,MX)
0 F901 1-576-233-51 FUSE (H.B.C.) (T6.3AL/250V)
(EXCEPT E32,E87,MX)
0 F901 1-576-300-51 FUSE (H.B.C.) (T8AL/250V) (E32)
TU901 1-693-724-11 TUNER (FM/AM) (ANTENNA) (AEP,UK)
TU901 1-693-725-11 TUNER (FM/AM) (ANTENNA) (RU)
TU901 1-693-761-21 TUNER (FM/AM) (ANTENNA) (EXCEPT AEP,UK,RU)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#3 7-685-862-01 SCREW +BVTT 2.6X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Abbreviation
E3 : 240V AC area in E model
E12 : 220-240V AC area in E model
E32 : 110-240V AC area in E model
E87 : Venezuelan model
AR : Argentine model
EA : Saudi Arabia model
MX : Mexican model
RU : Russian model
SP : Singapore model
Note: If the wire (fl at type) was replaced,
fold it some as the wire (fl at type)
before replacement.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.

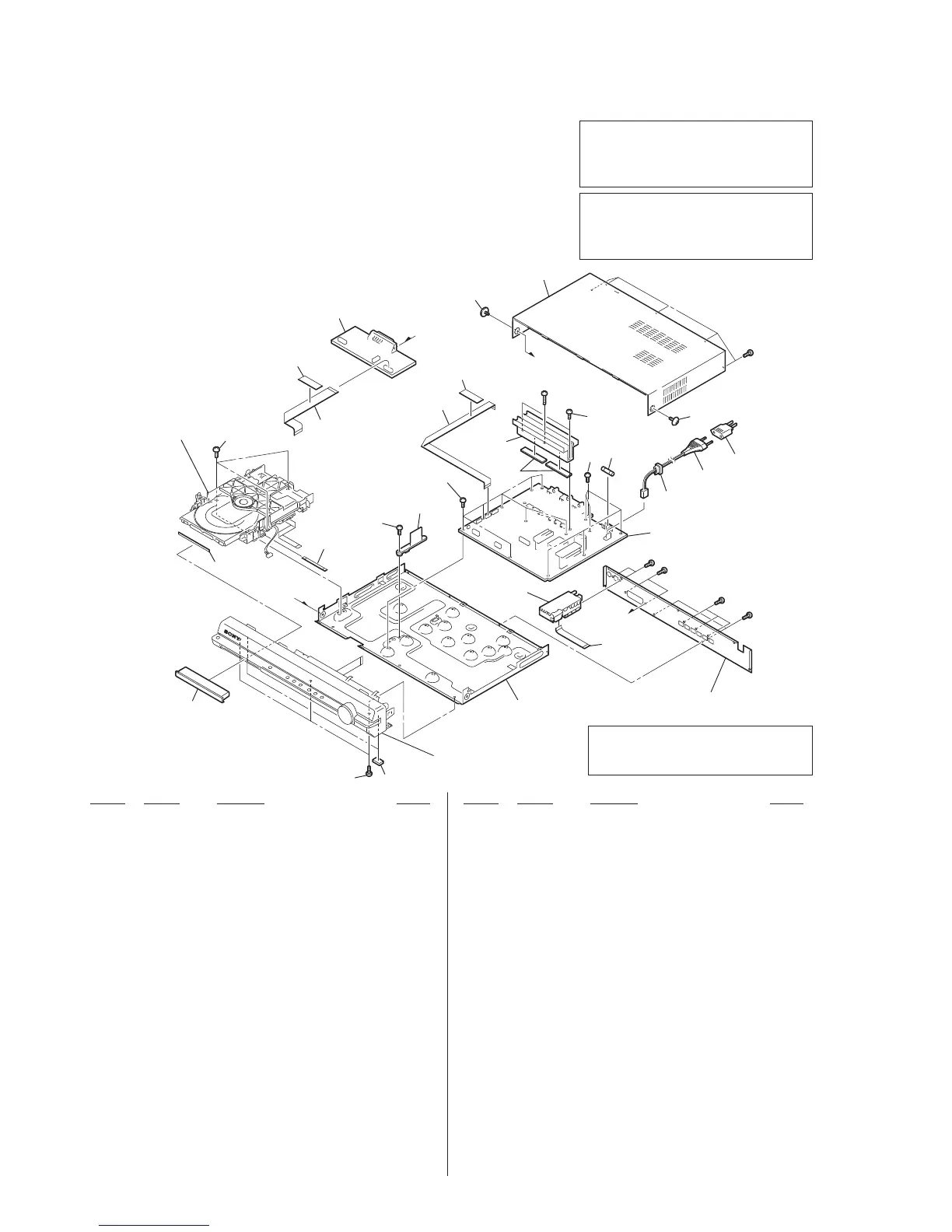

7-1. OVERALL SECTION
Ver. 1.3
