Sony HCD-DZ30 - DVD Mechanism Deck Section (CDM85-DVBU102)

58
HCD-DZ30

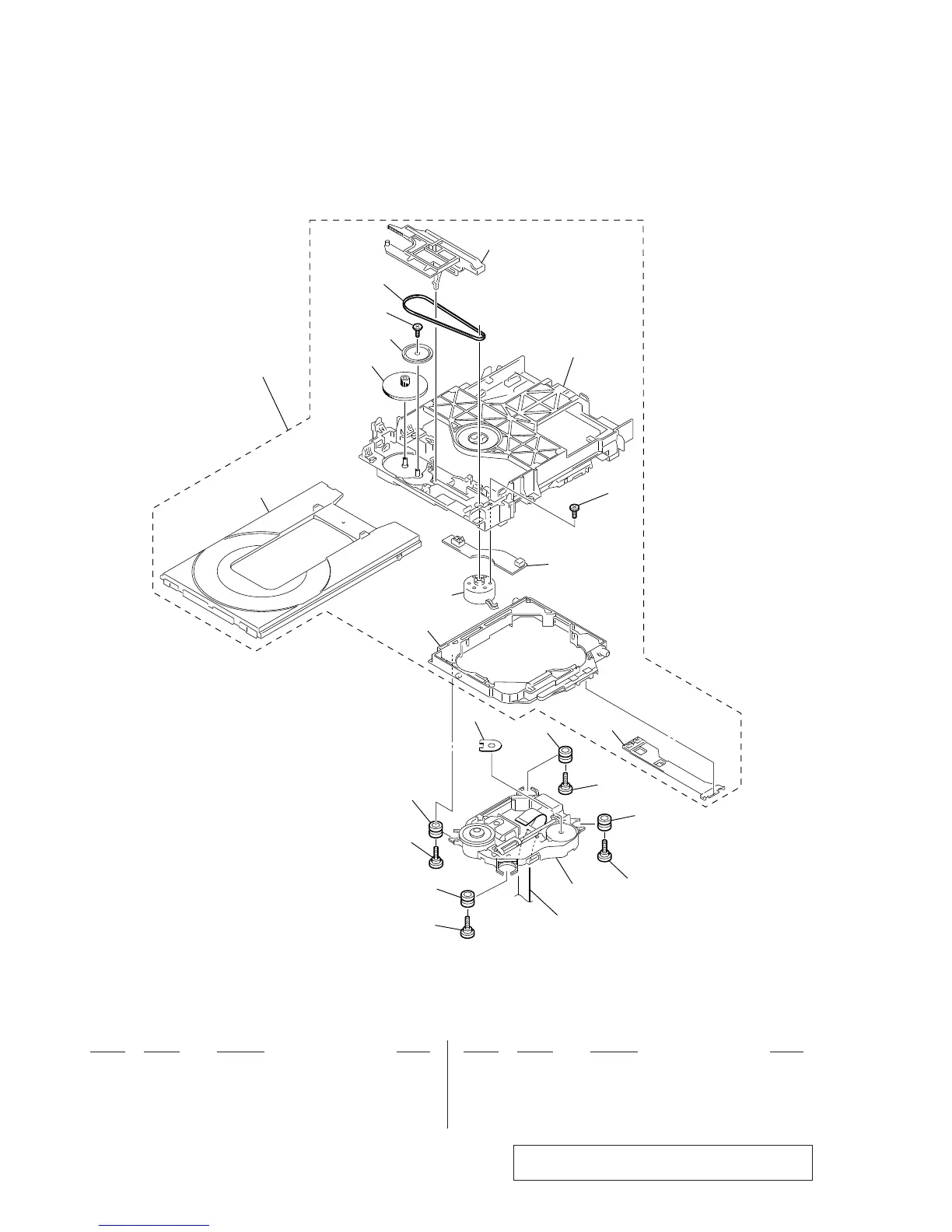

7-3. DVD MECHANISM DECK SECTION
(CDM85-DVBU102)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-6071-669-A LOADING ASSY (M)
102 3-088-371-01 BELT
103 4-974-725-11 SCREW (M1.7X2.5), P
104 4-674-137-11 SCREW (PTP2X5)
105 2-634-618-01 INSULATOR
106 3-087-599-01 SCREW, INSULATOR
0 107 8-820-321-05 OPTICAL PICK-UP KHM-313CAA/C2RP
108 1-828-771-51 WIRE (FLAT TYPE) (24 CORE)
109 3-113-851-01 SHEET (E12)
Note: If the wire (fl at type) was replaced, fold it some as
the wire (fl at type) before replacement.
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(MS-203 board)
not
supplied
101
104
102
103
105
105
105
105
106
107
108
109
106
106
106
