Sony HCD-DZ30 - MAIN Board

HCD-DZ30
14

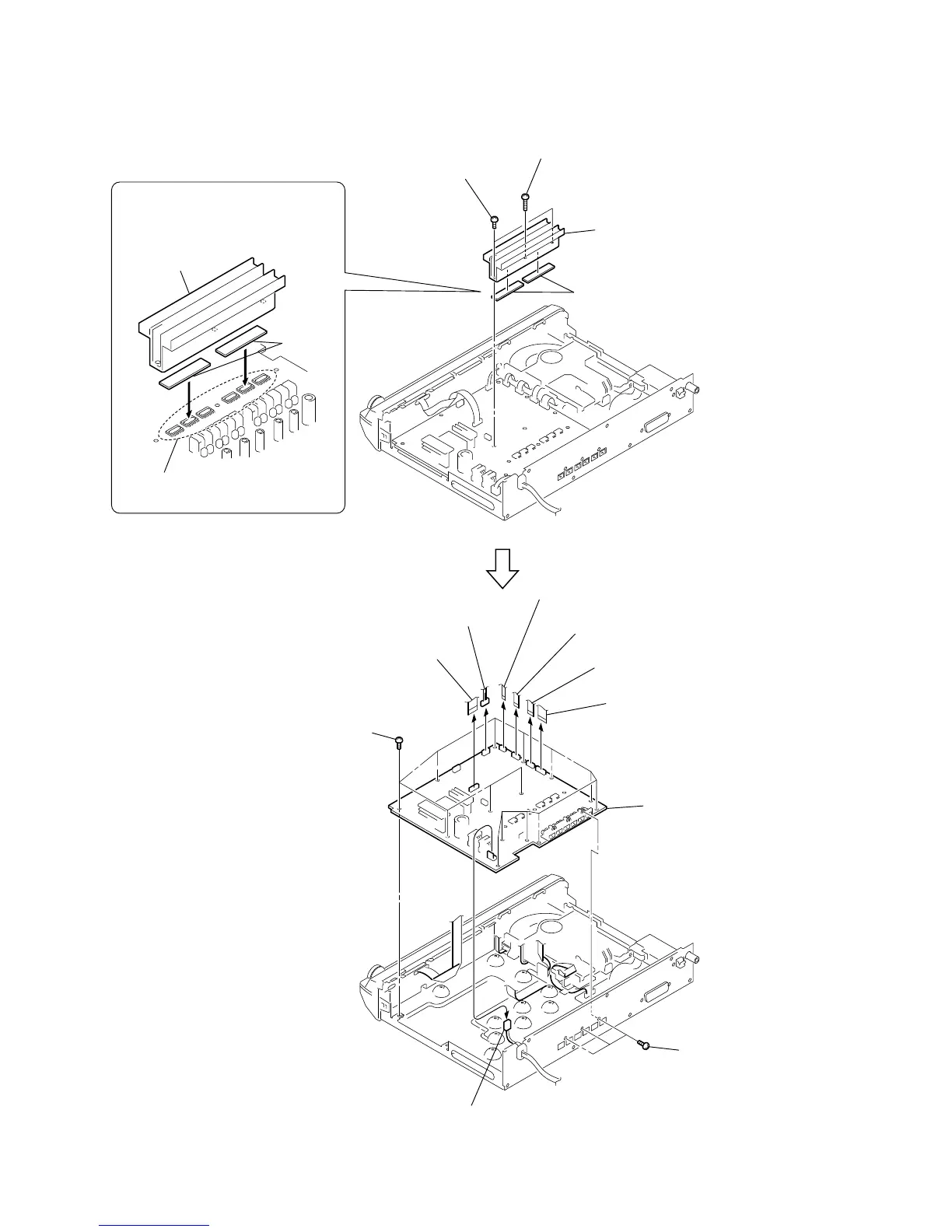

3-5. MAIN BOARD
Attaching the two radiation sheets on the
IC MAIN board first, and then attach the
heatsink (AMP).
 two screws
(+BV3 (3-CR))
RE fourteen screws
(+BV3 (3-CR))
 heatsink (AMP)
RT three screws
(+BVTP 3 × 8)
RG MAIN board
 two radiation sheets
 screw (+BVTP 3 × 12)
radiation
sheets
heatsink (AMP)
IC on the
MAIN board
 wire (flat type) (15 core)
(CN508) (EXCEPT AEP, UK)
wire (flat type) (17 core)
(CN507) (AEP, UK)
 wire (flat type) (13 core)
(CN1301)
 wire (flat type) (24 core)
(CN1101)
 wire (flat type) (5 core)
(CN1202)
 wire (flat type) (15 core)
(CN509)
 CN1201 (6P)
RB CN901 (2P)
