Sony HCD-DZ30 - FL Board; KEY Board, P-SW Board

HCD-DZ30
13

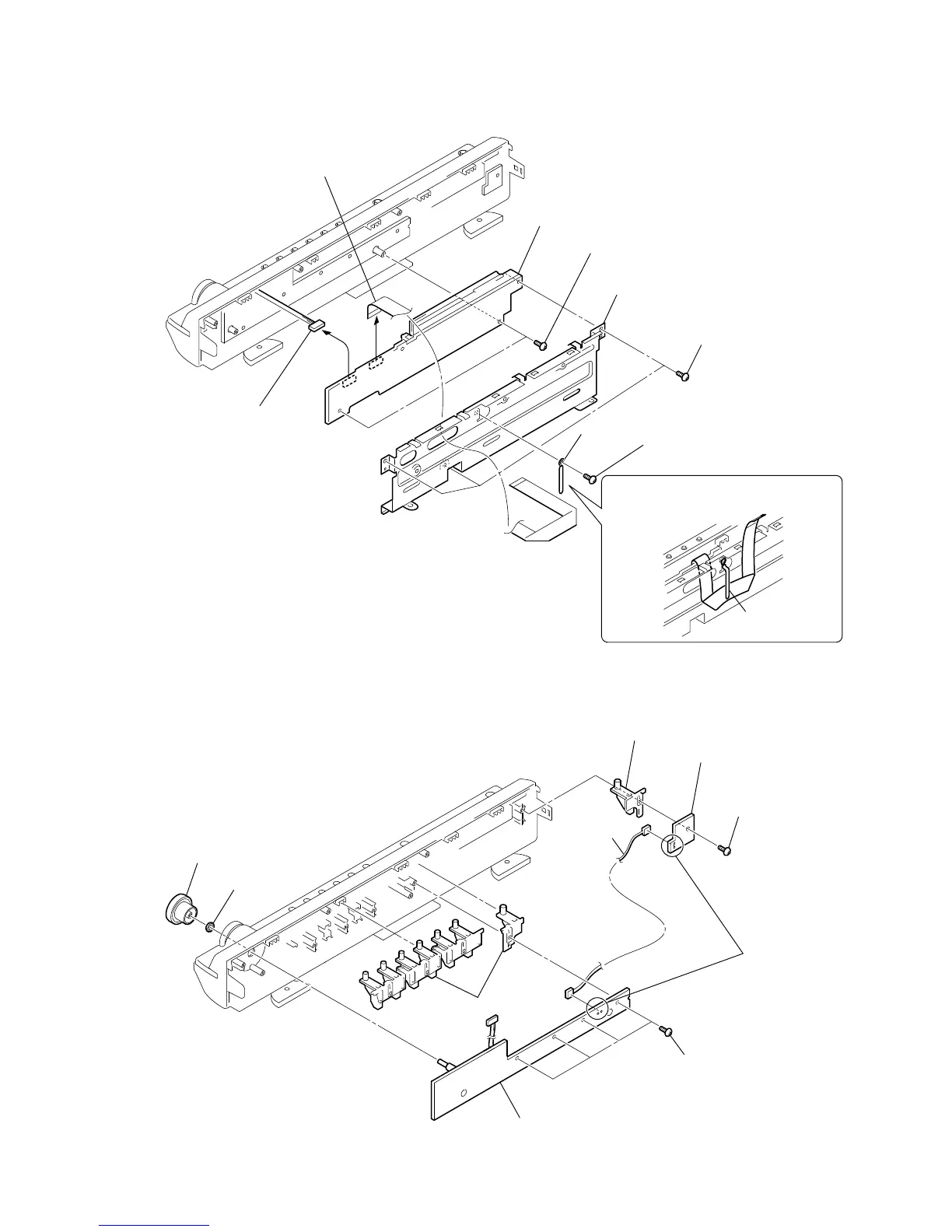

3-3. FL BOARD
3-4. KEY BOARD, P-SW BOARD
 shield (front)
 FL board
 screw
(+BVTP 2.6 (3CR))
 three screws
(+BVTP 2.6 (3CR))
 two screws
(+BVTP 2.6 (3CR))
 clamp
clamp
 wire (flat type) (15 core)
(CN801)
 CN805
Route the wire (flat type) as shown below.
 knob (vol)
 nut
R KEY board
 button (AIO)
 Remove the
soldering.
 harness
 button (AIO)
 P-SW board
 four screws
(+BVTP 2.6 (3CR))
 screw
(+BVTP 2.6 (3CR))
