For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/4 W or less unless otherwise
specifi ed.
•
f
: internal component.
• C : panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• A : B+ Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
• Voltages and waveforms are dc with respect to ground in
service mode.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
no mark : DVD STOP
*
: Impossible to measure
• Voltages are taken with VOM (Input impedance 10 MΩ).
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
d : TUNER
L : VIDEO
E : Y
a : CHROMA
r : COMPONENT VIDEO
q : R, G, B
f : AUDIO IN (TV/VIDEO)
J : CD PLAY
c : DVD PLAY
• Abbreviation
E3 : 240V AC area in E model
E12 : 220-240 V AC area in E model
E32 : 110-240V AC area in E model
E87 : Venezuelan model
AR : Argentine model
EA : Saudi Arabia model
MX : Mexican model
RU : Russian model
SP : Singapore model
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
•
a
: Through hole.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
• Indication of transistor.
C
B
These are omitted.
E
Q
CEB
These are omitted.
Caution:
Parts face side:
(SIDE A)
Pattern face side:
(SIDE B)
Parts on the parts face side seen from
the parts face are indicated.
Parts on the pattern face side seen from
the pattern face are indicated.
• Abbreviation
E3 : 240V AC area in E model
E12 : 220-240 V AC area in E model
E32 : 110-240V AC area in E model
E87 : Venezuelan model
AR : Argentine model
EA : Saudi Arabia model
MX : Mexican model
RU : Russian model
SP : Singapore model
Note: The components identifi ed by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specifi ed.

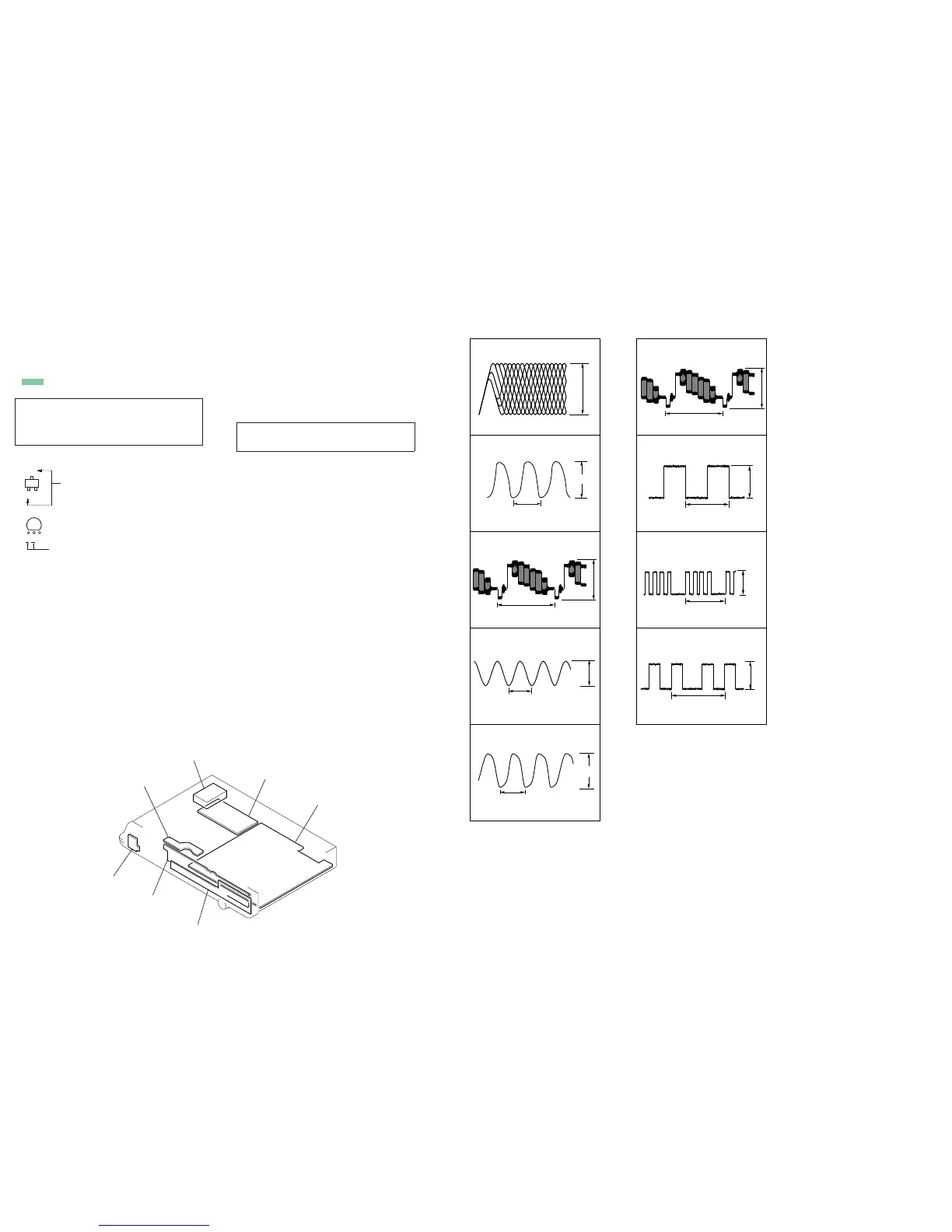

• Waveforms
– MAIN Board –
• Circuit Boards Location
– IO Board –
FL board
KEY board
P-SW board
IO board
MAIN board
TUNER (FM/AM)
MS-203 board
 IC1101 YY (XTALI)
 IC1101  (DVDRFIP)
 IC1101 [ (YUV3)
 IC3010 SL (XFSOIN)
 IC501 RH (XIN)
500 mV/DIV, 10 ns/DIV
37 ns
1.1 Vp-p
200 mV/DIV, 100 ns/DIV
900 mVp-p
500 mV/DIV, 20 μs/DIV
H
1.0 Vp-p
4.8 Vp-p
20.3 ns
1 V/DIV, 10 ns/DIV
1 V/DIV, 100 ns/DIV
200 ns
2.7 Vp-p
 IC201 XE (CVBS)
 IC201 X (CYOUT)
 IC201 RL (CbOUT)
 IC201 RI (CrOUT)
500 mV/DIV, 20 μs/DIV
H
1.0 Vp-p
500 mV/DIV, 20 μs/DIV
H
1.0 Vp-p
500 mV/DIV, 20 μs/DIV
1.0 Vp-p
H
500 mV/DIV, 20 μs/DIV
1.0 Vp-p
H
