HCD-EH25/EH26
SECTION 8
EXPLODED VIEWS
1 A-1544-898-A MAIN BOARD, COMPLETE (EH25: AEP, UK/EH26)
1 A-1544-906-A MAIN BOARD, COMPLETE (EH25: KR)
1 A-1547-611-A MAIN BOARD, COMPLETE (EH25: RU)
2 3-701-748-00 CLAMP
3 3-287-571-01 CABINET, REAR
0 4 1-769-079-51 CORD, POWER (KR)
0 4 1-830-891-11 CORD, POWER (RU, UK)
0 4 1-831-370-11 CORD, POWER (AEP)
5 3-198-753-11 FOOT (FELT)
7 3-087-053-01 +BVTP2.6 (3CR)
8 2-580-644-01 SCREW, +KTP2 3X8
9 3-572-085-00 WASHER, FIBER
10 1-500-868-11 CORE, FERRITE
0 F001 1-532-275-33 FUSE (T160mAL/250V)
0 PT005 1-445-421-11 TRANSFORMER, POWER (KR)
0 PT005 1-445-506-11 TRANSFORMER, POWER (AEP, RU, UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#3 7-685-649-79 SCREW +BVTP 3X14 TYPE2 IT-3 (KR)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
KR : Korean model
RU : Russian model

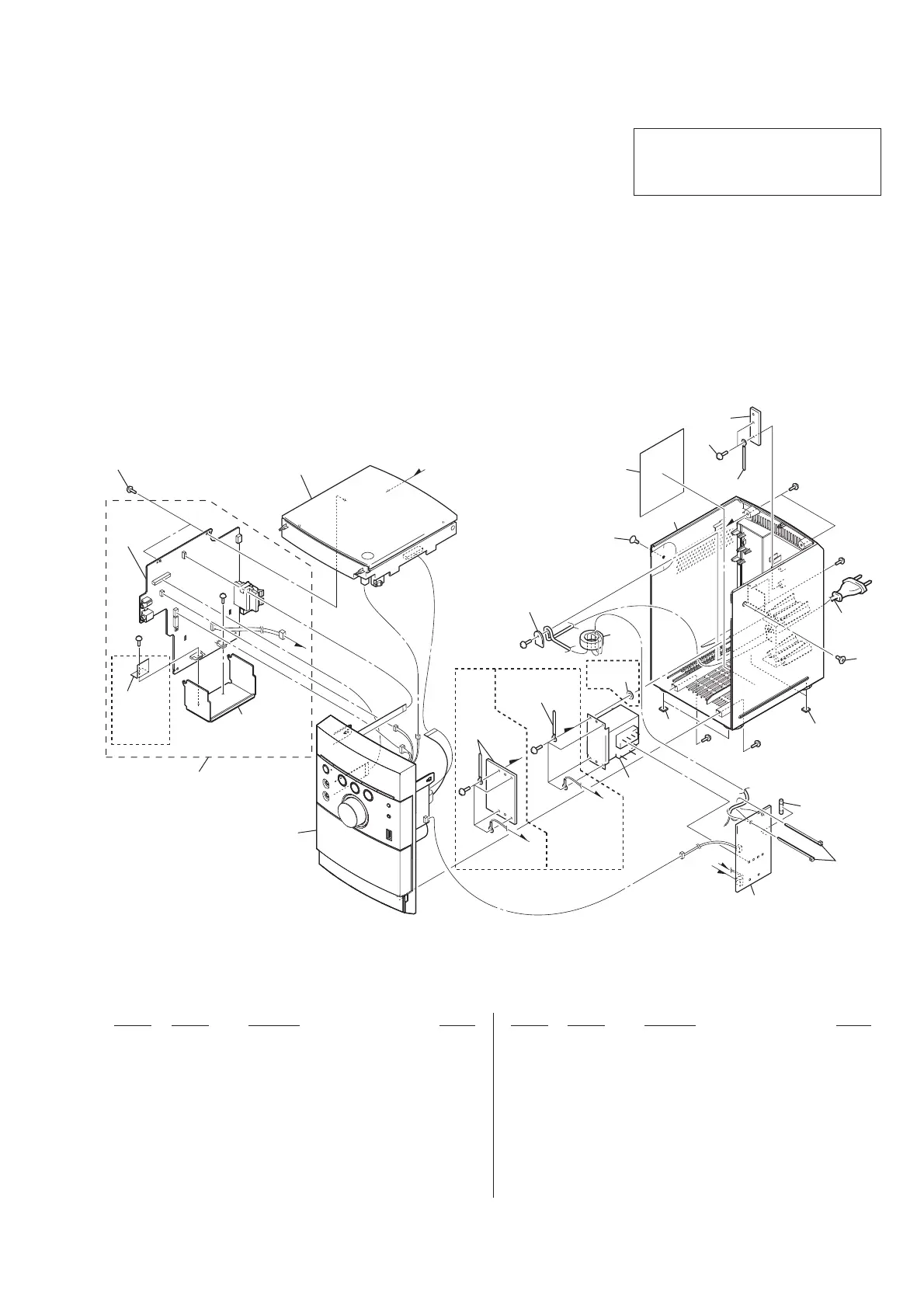

8-1. OVERALL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
1
#2
#2
#2
#3
#2
#1
#1
#1
#2
not supplied
not supplied
not
supplied
not
supplied
not
supplied
MAIN
board
PT005
F001
front cabinet section
top cabinet section
3
4
8
8
5
5
9
10
2
7
7
not supplied
(HOLDER1 board)
not supplied
(HOLDER11 board)
not supplied
(PT-VBUS board)
(KR)
(KR)
(AEP, RU,
UK)
(KR)
not supplied
"
"
%
$
$
%
%
#
#
jomi
