Sony HCD-EH25 - BASE UNIT BLOCK (BU-K8 BD90-WOD); OPTICAL PICK-UP BLOCK (KSM-213 CDP)

HCD-EH25/EH26
7

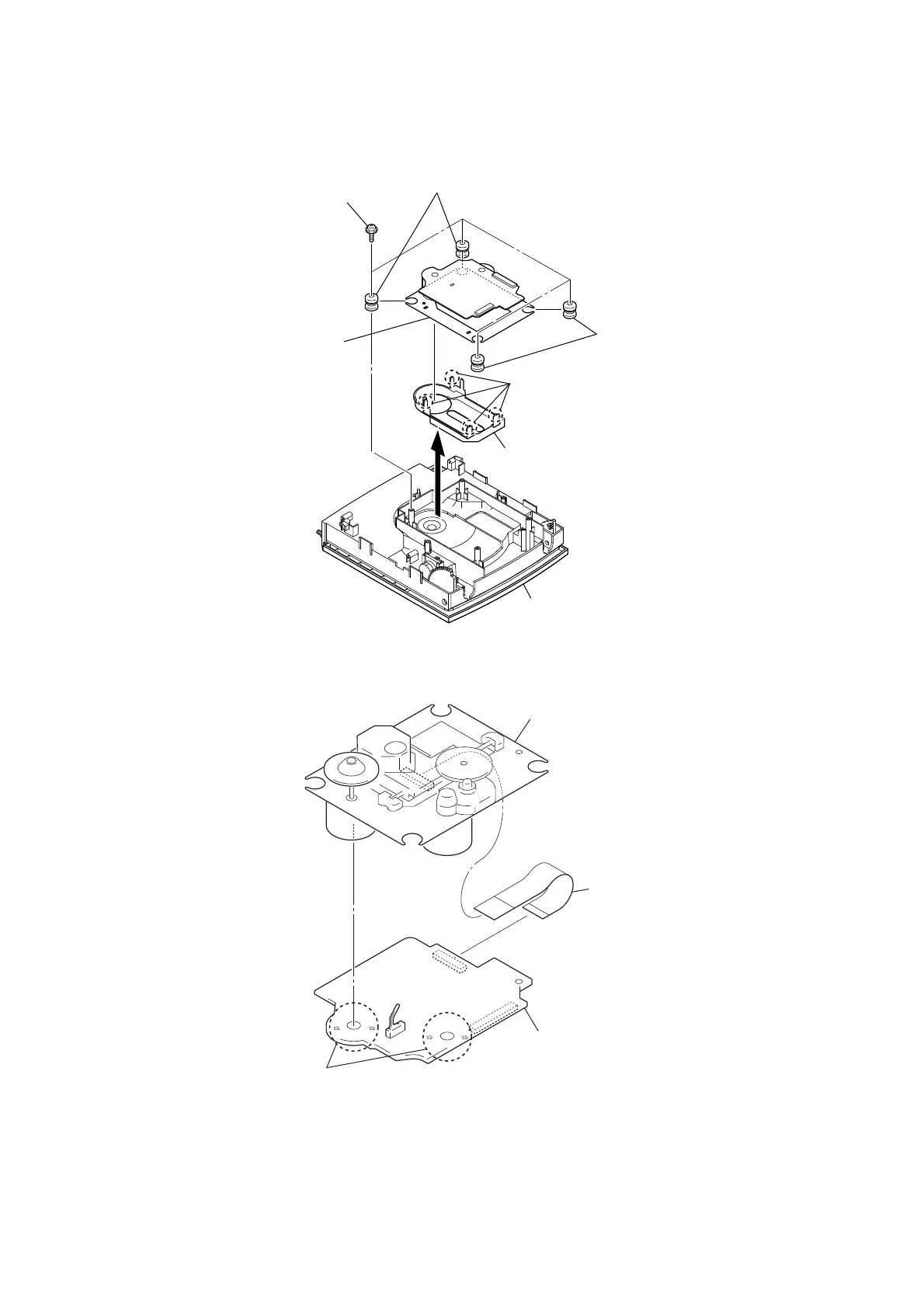

3-5. BASE UNIT BLOCK (BU-K8BD90-WOD)
Note: This illustration sees the top cabinet block back side from back.
3-6. OPTICAL PICK-UP BLOCK (KSM-213CDP)
top cabinet block

four screws
(PWH B2.6)

two vibration proof rubbers
(red)

two vibration proof rubbers
(green)

four claws

CD cover

base unit block
(BU-K8BD90-WOD)

– Bottom view –

wire (flat type) (16 core)
(optical pick-up, CD board: CN301)

CD board

optical pick-up block
(KSM-213CDP)

Remove the four solders.
