Sony HCD-EH25 - FRONT CABINET SECTION

40
HCD-EH25/EH26

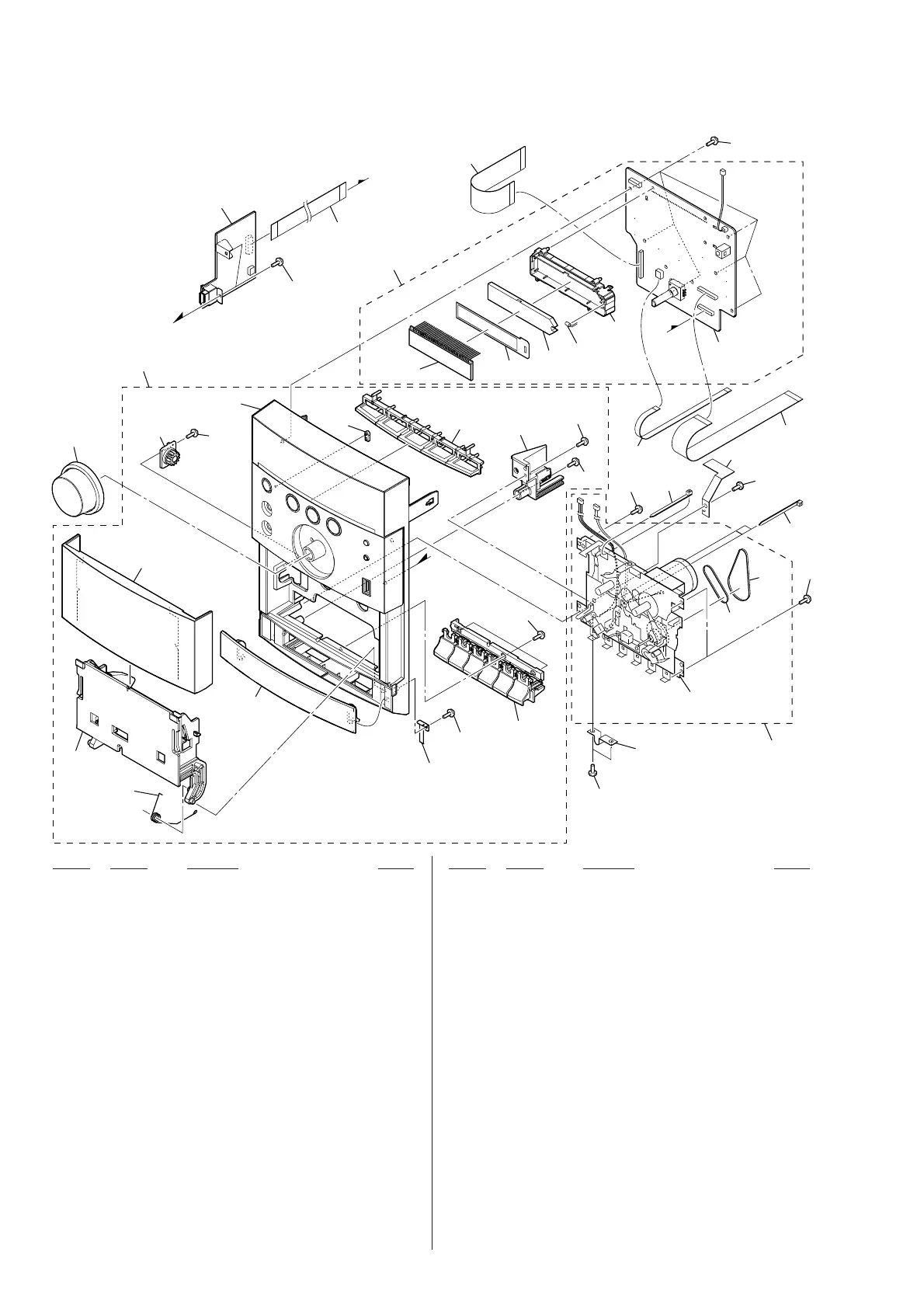

8-2. FRONT CABINET SECTION
51 3-280-084-01 KNOB (VOL)
52 A-1544-213-A CABINET ASSY, FRONT (EH25: AEP, UK)
52 A-1545-262-A CABINET ASSY, FRONT (EH26)
52 A-1545-899-A CABINET ASSY, FRONT (EH25: KR)
52 A-1545-958-A CABINET ASSY, FRONT (EH25: RU)
53 3-280-079-01 BUTTON COVER (C)
54 2-637-768-01 SPRING (CASSETTE)
55 3-288-035-01 HOLDER (CASSETTE)
56 3-280-077-21 LID, CASSETTE (EH25: AEP, UK)
56 3-280-077-41 LID, CASSETTE (EH26)
56 3-280-077-51 LID, CASSETTE (EH25: RU, KR)
57 3-047-468-01 DAMPER
58 3-087-053-01 +BVTP2.6 (3CR)
59 3-280-087-01 LENS (POWER)
60 3-280-083-01 BUTTON (OPERATION)
61 2-636-524-01 HOLDER, PWB
62 3-280-081-01 BUTTON (CASSETTE)
(z, N, m, M, x Z, X)
63 3-280-088-01 SPRING (C-BUTTON LID)
64 A-1544-901-A PANEL BOARD, COMPLETE
(EH25: AEP, UK/EH26)
64 A-1544-908-A PANEL BOARD, COMPLETE (EH25: KR)
64 A-1547-613-A PANEL BOARD, COMPLETE (EH25: RU)
65 2-636-545-01 SHEET (LCD)
66 2-636-532-01 ILLUMINATOR (LCD)
67 2-636-531-01 HOLDER (LCD)
68 2-636-546-01 LEVER (REC)
69 3-254-022-01 SCREW
70 3-701-748-00 CLAMP
71 A-1313-349-A MF-EH10 (TAPE MECHANISM DECK)
72 2-670-389-01 BELT (1)
73 3-214-817-01 BELT (FR)
74 A-1527-435-A USB BOARD, COMPLETE
FFC001 1-832-796-21 CABLE, FLEXIBLE FLAT (5 CORE)
(EH25: RU, KR)
FFC001 1-832-806-21 CABLE, FLEXIBLE FLAT (7 CORE)
(EH25: AEP, UK/EH26)
FFC002 1-831-952-21 CABLE, FLEXIBLE FLAT (19 CORE)
FFC003 1-832-748-21 CABLE, FLEXIBLE FLAT (21 CORE)
FFC004 1-832-706-21 CABLE, FLEXIBLE FLAT (13 CORE)
LCD702 1-802-381-11 DISPLAY PANEL, LIQUID CRYSTAL
LED701 6-502-498-01 LED SELU2B10A-SLF62FGH (LCD BACK LIGHT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
71
not supplied
72
73
61
62
63
64
65
66
67
68
69
69
70
70
51
52
53
54
55
56
57
58
58
58
58
58
58
74
58
58
58
59
60
not supplied
not supplied
FFC001
FFC002
FFC004
FFC003
LCD702
LED701
PANEL board
&
'
'
&
