Sony HCD-EP515 - Printed Wiring Board - Control Section

2323
HCD-EP515

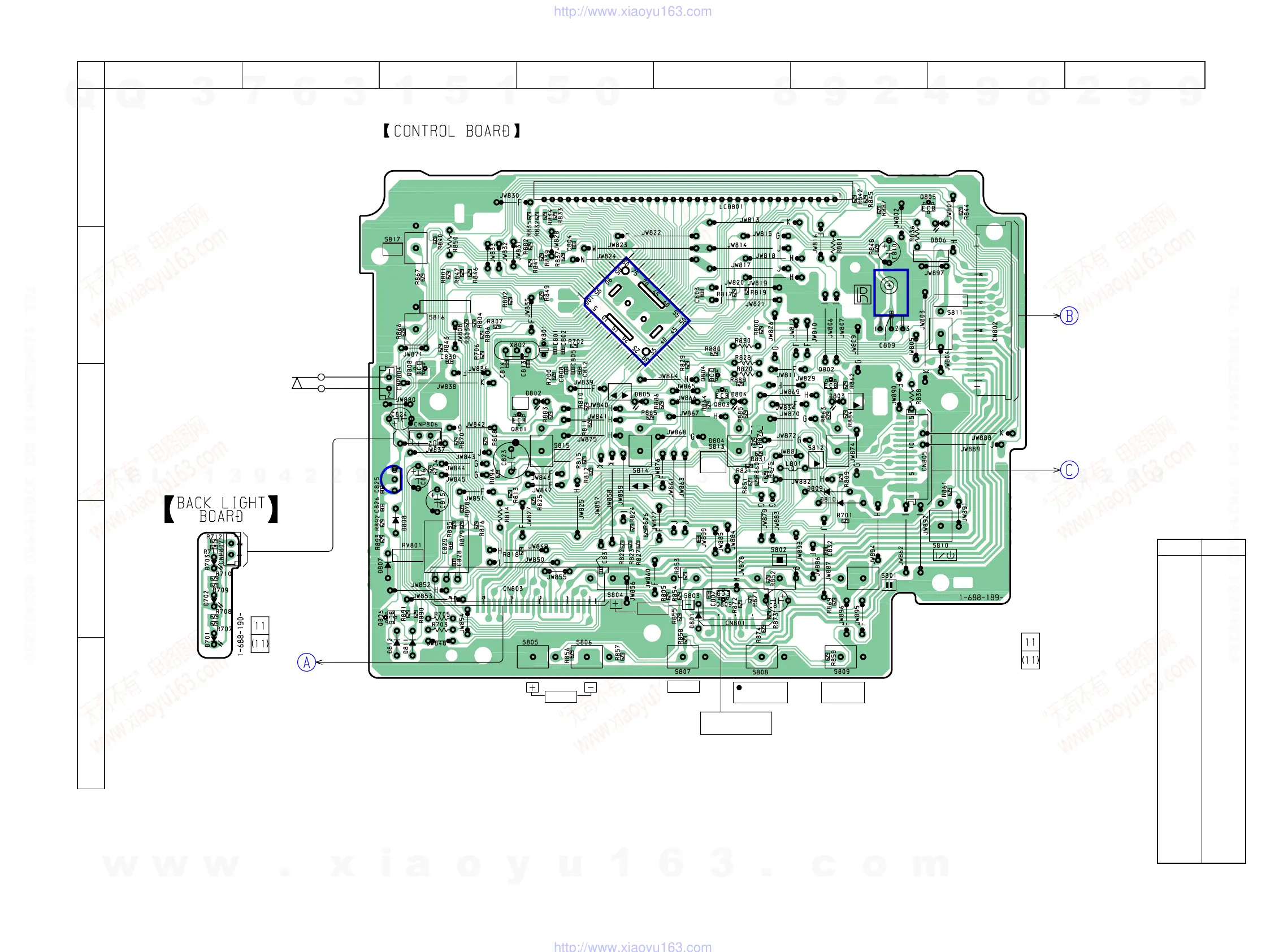

6-7. Printed Wiring Board – Control Section –
• See page 15 for Circuit Boards Location.
IC801
IC803
IC802
DSG
BASS/TREBLE
RED
WHT
S800
(OPEN)
MD
VOLUME
MD
TAPE
TAPE
21
TO
CD
BOARD
CN101
(Page 19)
RESET
TUNING
CD SYNC
TAPE MECHANISM
DECK
REC PAUSE/
START
PLAYMODE
DIRECTION
8
TO
MAIN
BOARD
CN302
(Page 21)
(Page 21)
TO
MAIN
BOARD
CN303
STANDBY
DISPLAY
CD
CD
TUNER
BAND
(US,CND,KR)
(AEP,UK)
FLUORESCENT INDICATOR TUBE
37 31 30 25 20 15 10 5
12
A
B
C
D
E
345678
D701-703
(BACK LIGHT)
1
3
Ref. No. Location
D701 E-1
D702 D-1
D703 D-1
D801 D-5
D802 C-4
D803 C-6
D804 C-5
D805 C-4
D806 B-7
D807 D-3
D808 D-3
D809 C-6
D810 C-6
D811 E-3
D812 E-3
IC801 B-4
IC802 B-6
IC803 C-3
Q801 C-3
Q802 C-6
Q803 C-5
Q804 C-5
Q805 A-7
Q806 D-3
Q808 C-3
Q809 D-5
• Semiconductor
Location
Ver 1.2 2003. 07
