HCD-EP515
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-4737-142-A DOOR CASSETTE ASSY
52 4-245-034-01 SPRING CASSETTE
54 4-245-018-01 HOLDER CASSETTE
55 4-245-032-01 KNOB VOLUME
56 4-245-022-01 DECORATION FUNCTION
57 A-4737-134-A CABI FRONT ASSY (AEP, UK)
57 A-4737-183-A CABI FRONT ASSY (US, CND, KR)
58 4-245-029-01 BUTTON (DISPLAY)
59 4-245-027-01 KNOB (FUNCTION)
60 4-245-028-01 BUTTON (BASS/TRE)
61 4-245-026-01 KNOB (POWER)
62 A-4732-653-A CONTROL BOARD, COMPLETE (AEP, UK)
62 A-4732-665-A CONTROL BOARD, COMPLETE (US, CND)
62 A-4749-451-A CONTROL BOARD, COMPLETE (KR)
63 4-231-841-01 SPRING (HEART CAM-B)
64 4-224-104-41 DAMPER
65 1-796-351-51 MECHANISM, SINGLE CASSETTE
66 4-960-167-01 SCREW (3X8) (DIA. 10), +WH
67 4-245-033-01 HOLDER LED
68 4-245-035-01 ILLUMINATOR
69 1-688-190-11 BACK LIGHT BOARD
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-862-09 SCREW +BVTT 2.6X6 (S)

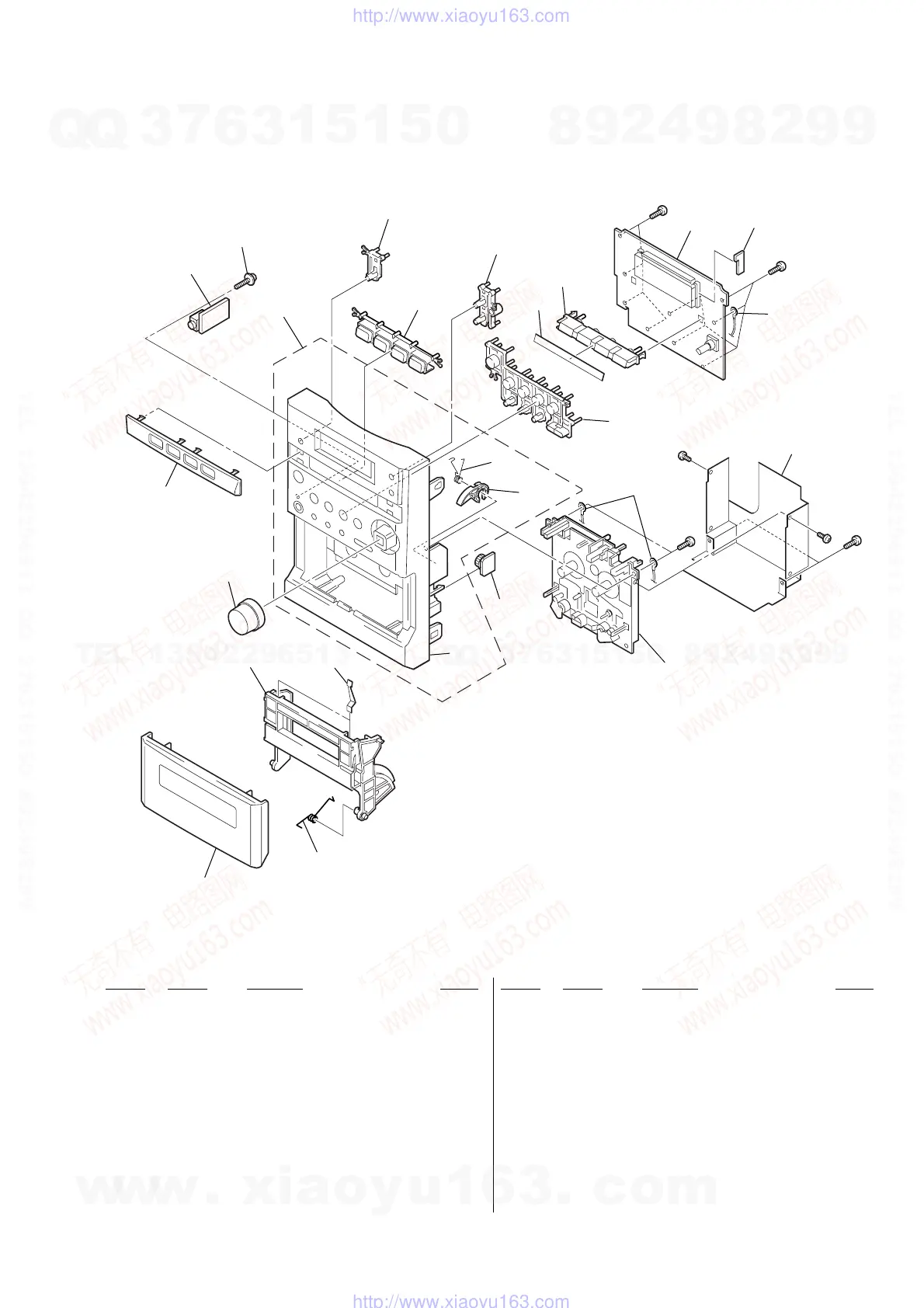

7-2. Front Panel Section
