Sony HCD-EP515 - CONTROL Board, BACK LIGHT Board; Tape Mechanism Deck (CMAL1 Z240 A)

9
HCD-EP515

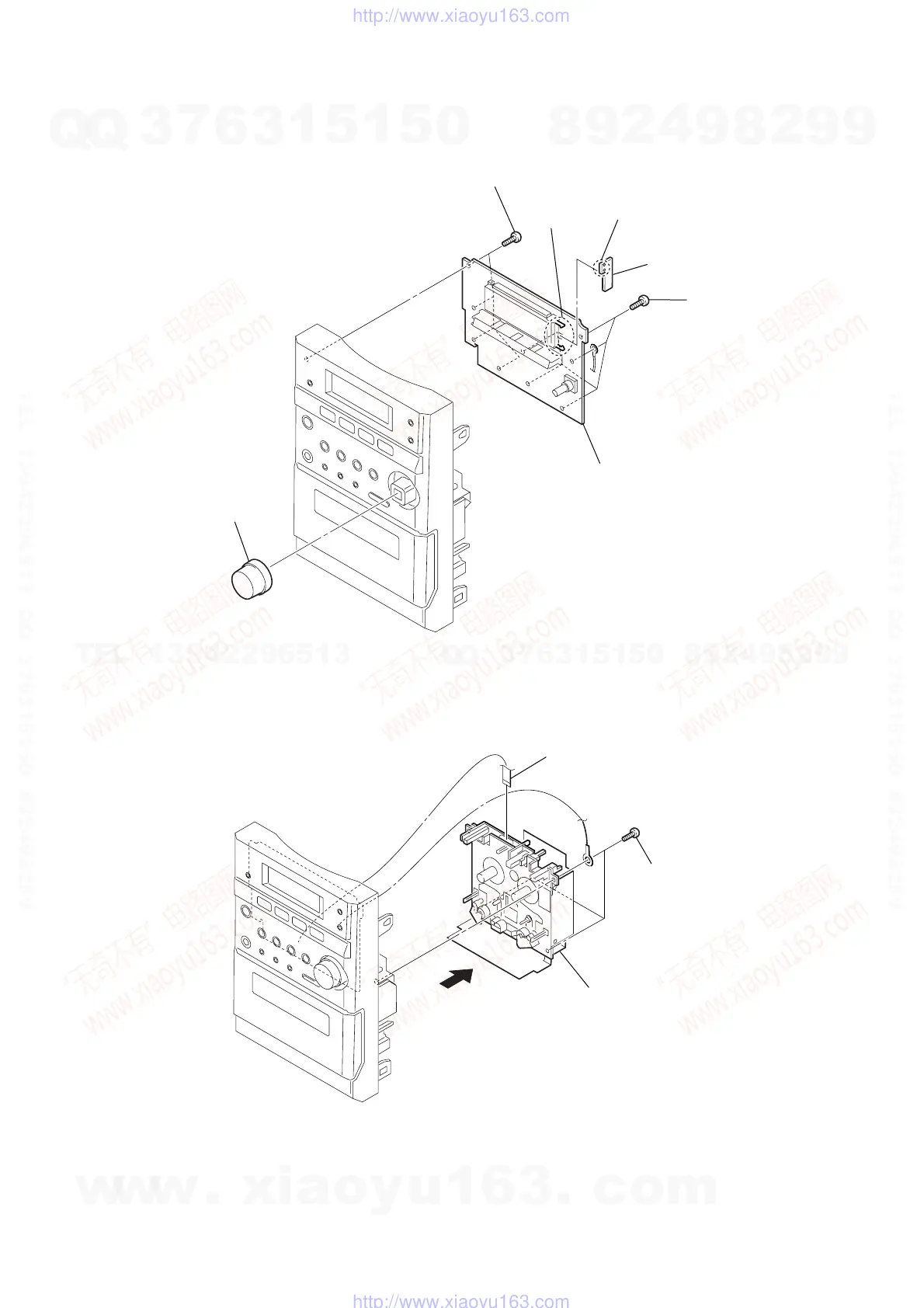

3-4. CONTROL Board, BACK LIGHT Board
3-5. Tape Mechanism Deck (CMAL1Z240A)
1 knob volume
4 CONTROL board
7 BACK LIGHT board
2 four screws
(+BVTP 3
× 10)
3 five screws
(+BVTP 3
× 10
)
5 Remove the soldering.
6 two claws
1 w ire (flat type) 8p
2 three screws
(+BVTP 3
× 10
)
3 tape mechanism deck
(CMAL1Z240A)
