SECTION 7
EXPLODED VIEWS
30
HCD-EP515
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
CND :Canadian model
KR :Korean model
1 A-4732-658-A MAIN BOARD, COMPLETE (AEP, UK)
1 A-4732-667-A MAIN BOARD, COMPLETE (US, CND, KR)
6 1-688-191-11 REGULATOR BOARD
7 4-245-014-01 CABINET REAR
08 1-769-079-22 CORD, POWER (KR)
08 1-769-744-52 CORD, POWER (AEP, UK)
08 1-783-531-22 CORD, POWER (US,CND)
9 1-688-188-11 POWER BOARD
11 1-693-619-11 TUNER (FM/AM) (AEP,UK)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
11 1-693-622-11 TUNER (FM/AM) (KR)
11 1-693-624-11 TUNER (FM/AM) (US, CND)
0 T902 1-439-769-11 TRANSFORMER, POWER (KR)
0 T902 1-439-778-11 TRANSFORMER, POWER (AEP, UK)
0 T902 1-439-780-11 TRANSFORMER, POWER (US, CND)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-647-11 SCREW +B 3X10
#6 7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3
#7 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT

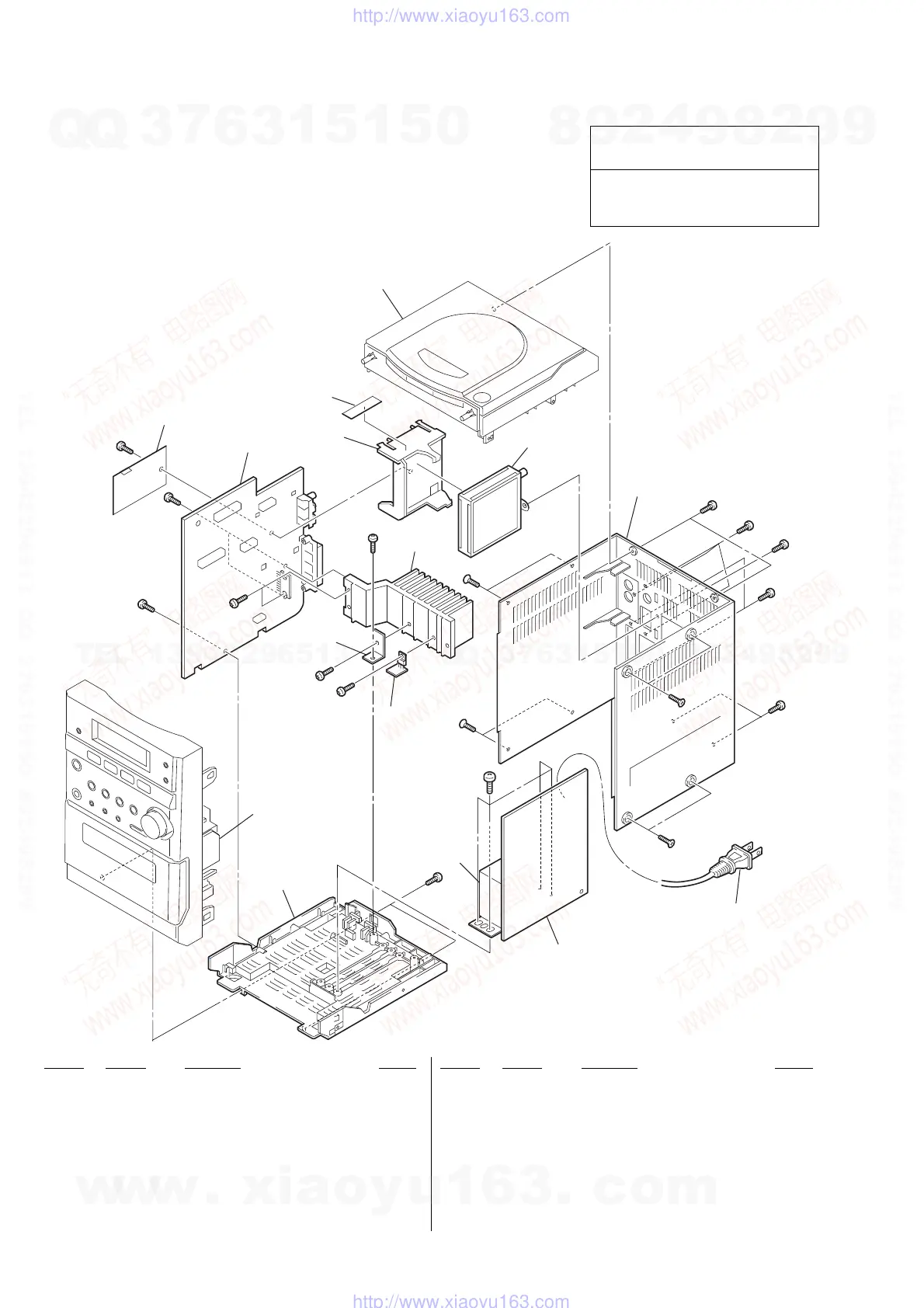

7-1. Cabinet Section
9
8
7
front panel section
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
1
6
11
CD cabinet section
T902
#1
#1
#1
#1
#1
#1
#1
#3
#1
#1
#7
#7
#7
#7
#1
#1
#1
#6
