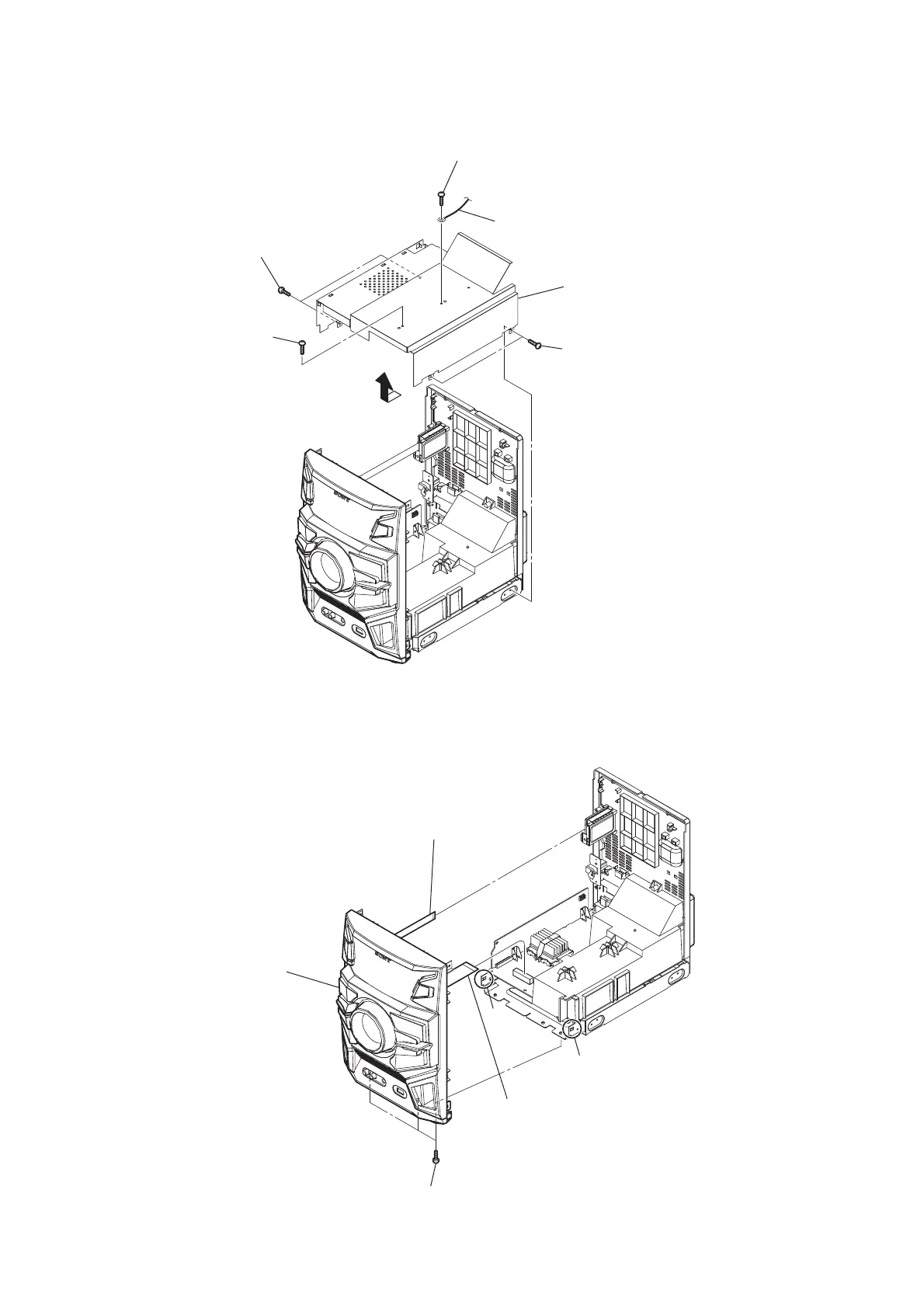

2-3. SHIELD (POWER-PWB)
2-4. FRONT PANEL SECTION
1 screw
(+BVTP 3 u10)
3 screw
(+BVTP 3 u10)
4 two screws
(+BVTP 3 u10)
5 two screws
(+BVTP 3 u10)
6
2 wire
7 shield (power-PWB)
3 three screws
(+BVTP 3 u10)
4 front panel section
1 wire (flat type) (7 core)
(CN501)
2 wire (flat type) (21 core)
(CN600) (EX66/EX88)
wire (flat type) (23 core)
(CN600) (EX99)
claw
claw
