Sony HCD-EX66 - Exterior Panel Removal

HCD-EX66/EX88/EX99
9
Note: Follow the disassembly procedure in the numerical order given.

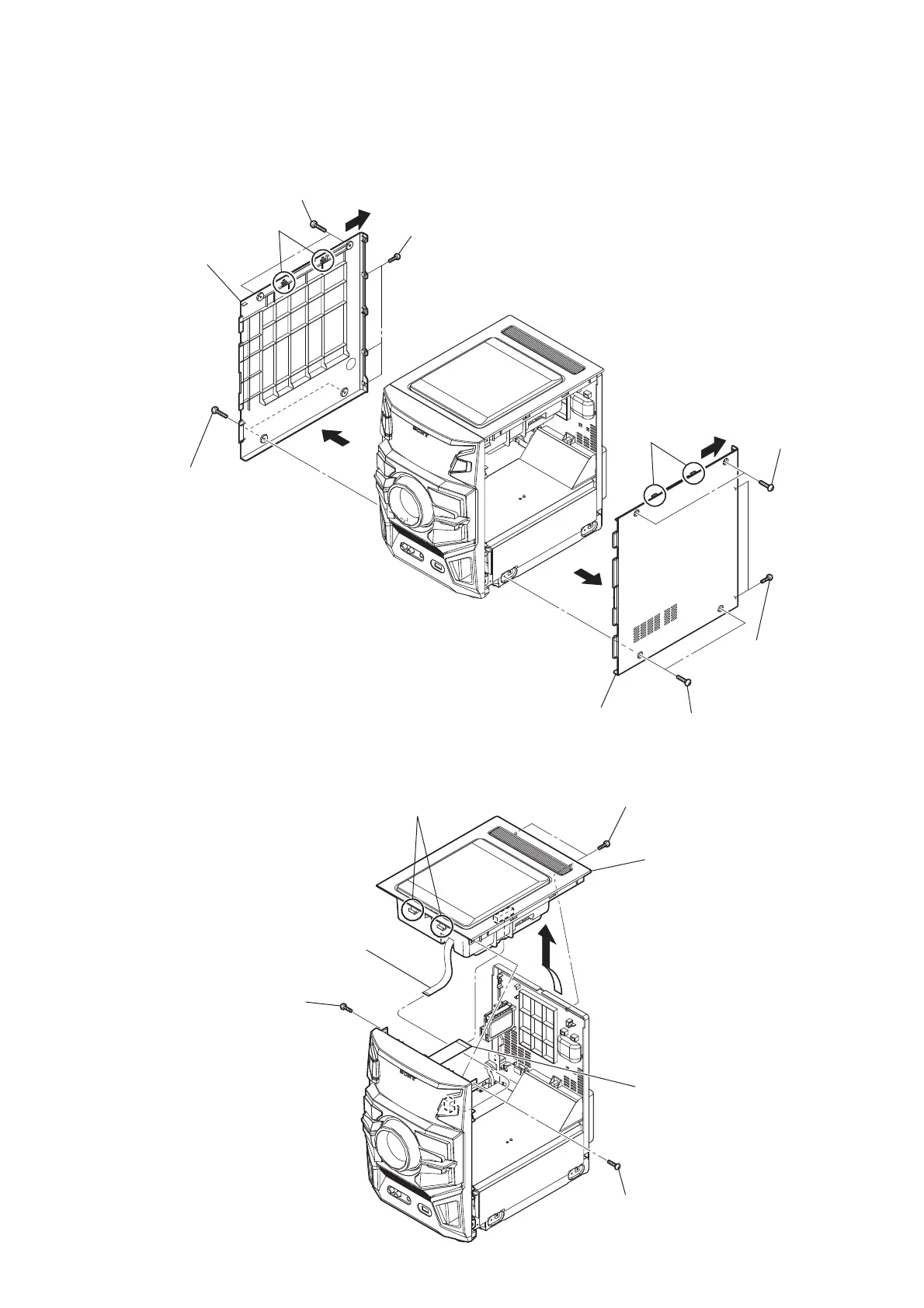

2-1. SIDE CASE (L), SIDE CASE (R)
2-2. TOP PANEL SECTION
6 side case (L)
qs side case (R)
1 two screws
(case 3 TP2)
7 two screws
(case 3 TP2)
8 two screws
(case 3 TP2)
2 two screws
(case 3 TP2)
two claws
5
qa
0
4
3 three screws
(+BVTP 3 u10)
9 two screws
(+BVTP 3 u10)
two claws
3 screw
(+BVTP 3 u10)
5 two screws
(+BVTP 3 u10)
4 screw
(+BVTP 3 u10)
7 two hooks
8 top panel section
1 wire (flat type) (21 core)
(CN401)
6
2 wire (flat type) (5 core)
(CN302)
