TA-WR2
SECTION 3
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS : Australian model
CND : Canadian model
E3 : 240V AC area in E model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
1 4-244-969-01 FOOT
2 2-594-250-01 BOTTOM, PANEL
3 X-2055-406-1 BOTTOM ASSY (EXCEPT US, CND)
3 X-2055-558-1 BOTTOM ASSY (US, CND)
4 2-594-248-01 TOP, CABINET (EXCEPT US, CND)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.

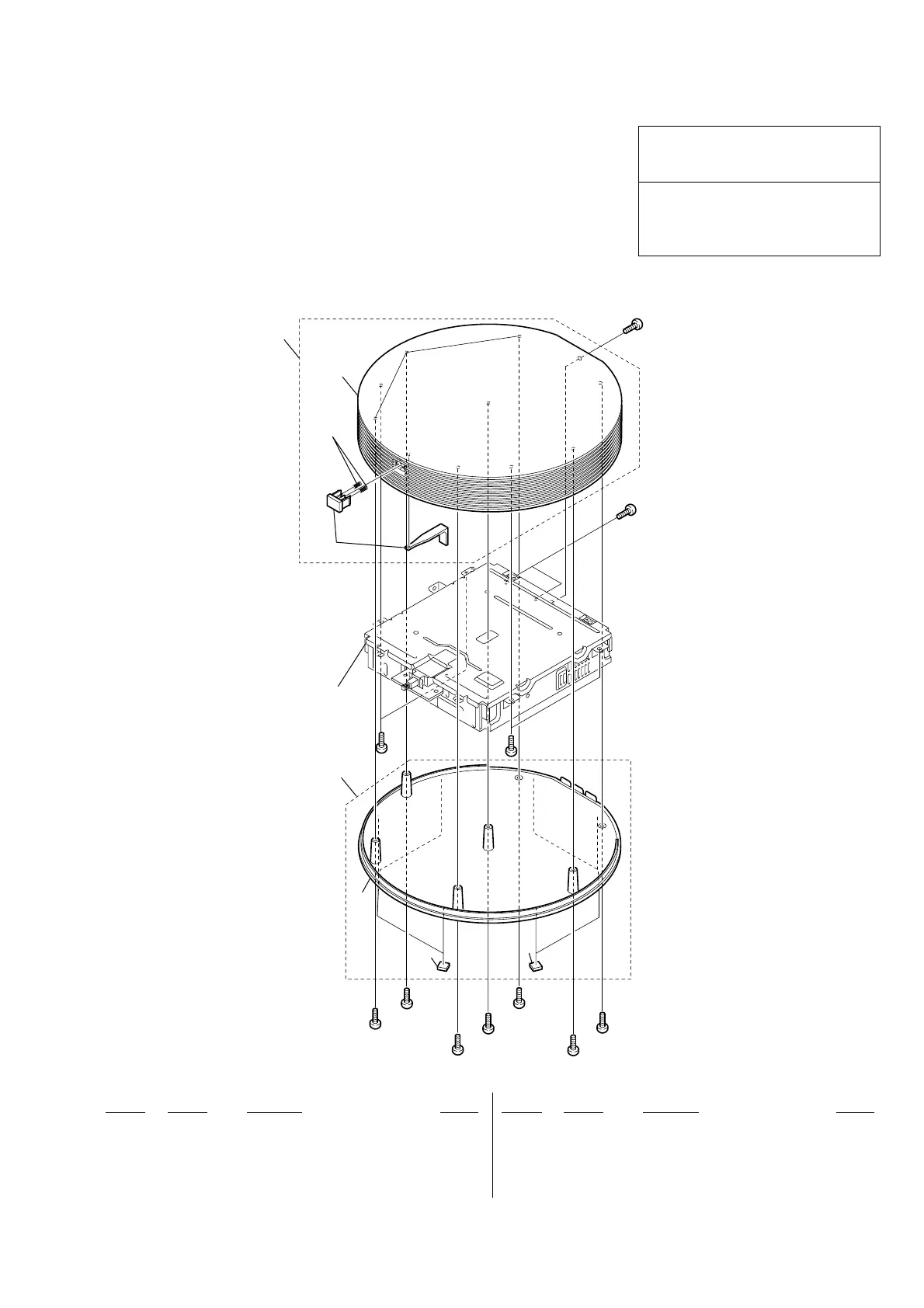

3-1. OVERALL SECTION
4 2-594-248-11 TOP, CABINET (US, CND)
5 X-2055-405-1 TOP CABINET ASSY (EXCEPT US, CND)
5 X-2055-557-1 TOP CABINET ASSY (US, CND)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-351
#1
#1
#1
#1
#1
#1
#1
#2
#2
#2
#
2
chassis section
not
supplied
not
supplied
4
5
2
3
1
1
