Sony HCD-G101 - DISASSEMBLY PROCEDURES; CD DOOR AND MECHANISM DECK DISASSEMBLY

— 5 —
SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

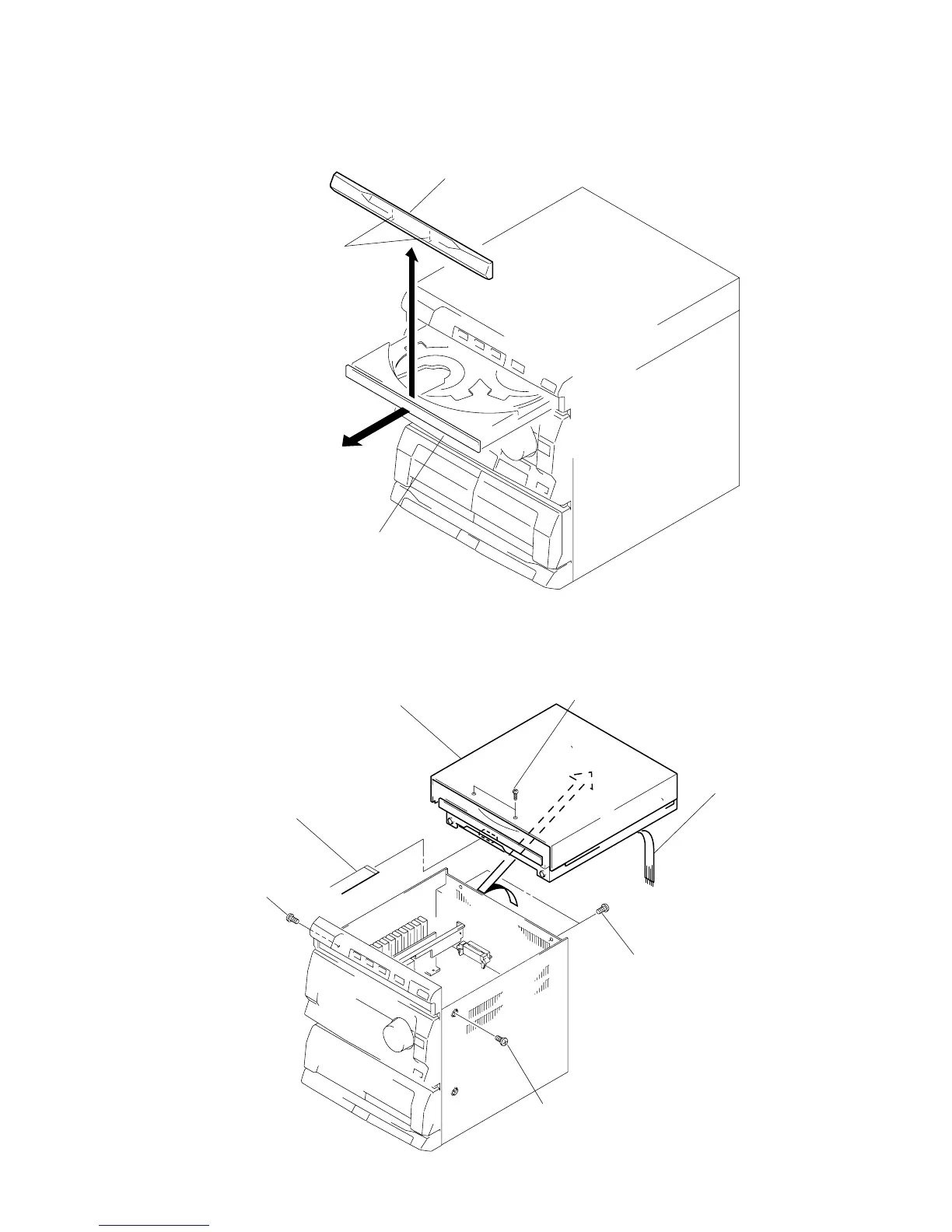

2-1. CD DOOR
2-2. CD MECHANISM DECK
CD door
1 Two screws (B3x8)
2 Screw
(BVTP3x10)
3 Screw
(BVTP3x10)
4 Two screws
(BVTP3x10)
5 Flat type wire (21 core)
(CN09)
6 Harness
(Main board: CN302)
7 CD mechanism deck
1 Pull out the CD tray and remove the
CD door with releasing claws into the
direction of arrow.
craws
