Sony HCD-G101 - FRONT PANEL AND MAIN BOARD DISASSEMBLY; MAIN BOARD AND H;P BOARD DISASSEMBLY

— 6 —

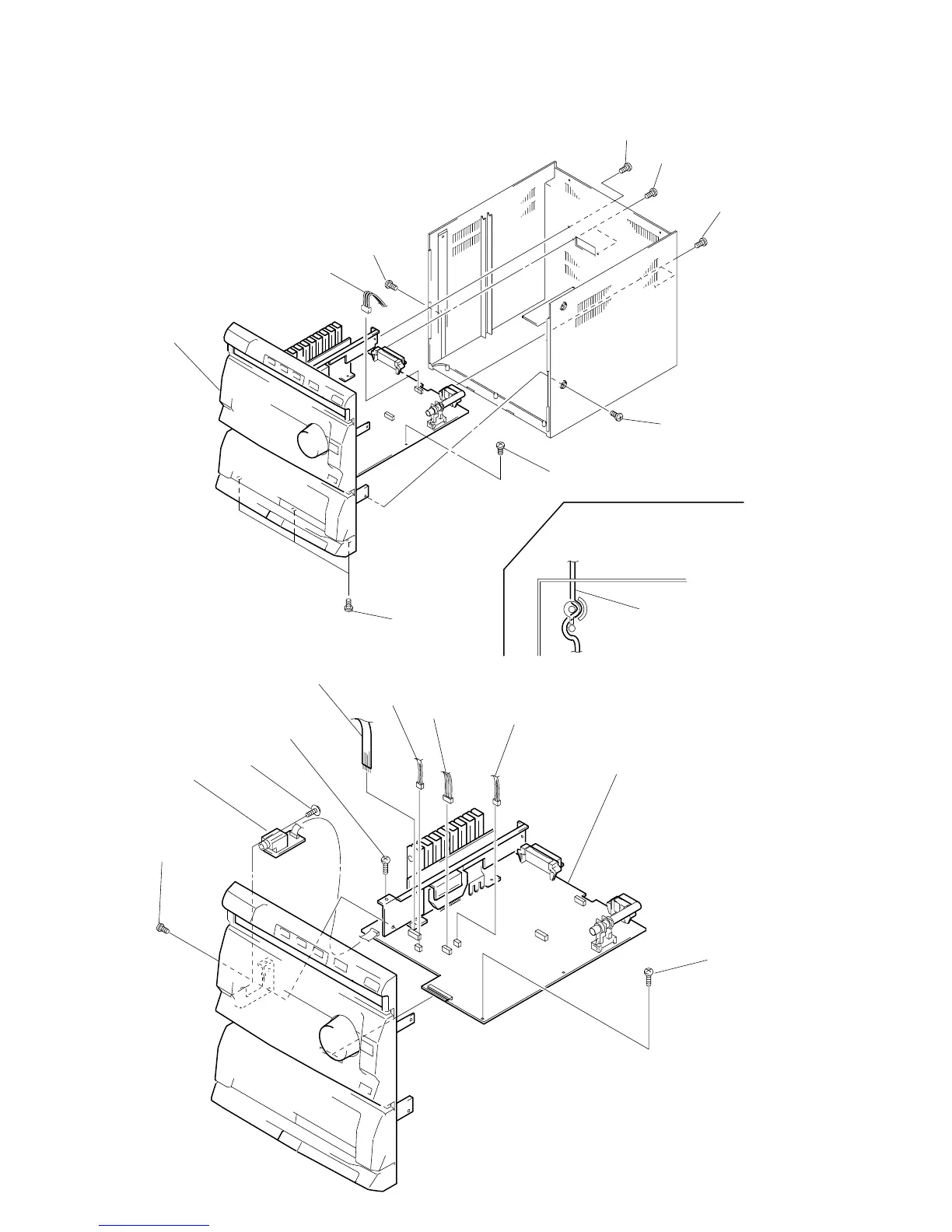

2-3. FRONT PANEL AND MAIN BOARD
2-4. MAIN BOARD AND H/P BOARD
1 Harness
(CN204)
2 Connector
(CN203)
3 Connector
(CN206)
4 Connector
(CN201)
5 Screw
(BVTP3x8)
6 Screw (BVTT3x6)
7 Screw
(BVTT3x6)
8 Screw (PTPWH3x10)
9 Main board
0 H/P board
2 Connector
(CN401)
6 Screw
(BVTP3x10)
4 Two screws
(BVTP3x10)
5 Two screws
(BVTP3x10)
3 Screw (BVTP3x8)
7 Screw
(BVTP3x10)
9 Front panel and
Main board
1 Three screws
(BVTP3x10)
8 Screw
(BVTP3x10)
POWER CORD
HOW TO SET THE
POWER CORD
