Sony HCD-GN600 - 3-5. CD MECHANISM DECK Disassembly; 3-6. GAME IN BOARD, TAPE MECHANISM DECK Disassembly

10
HCD-GN600

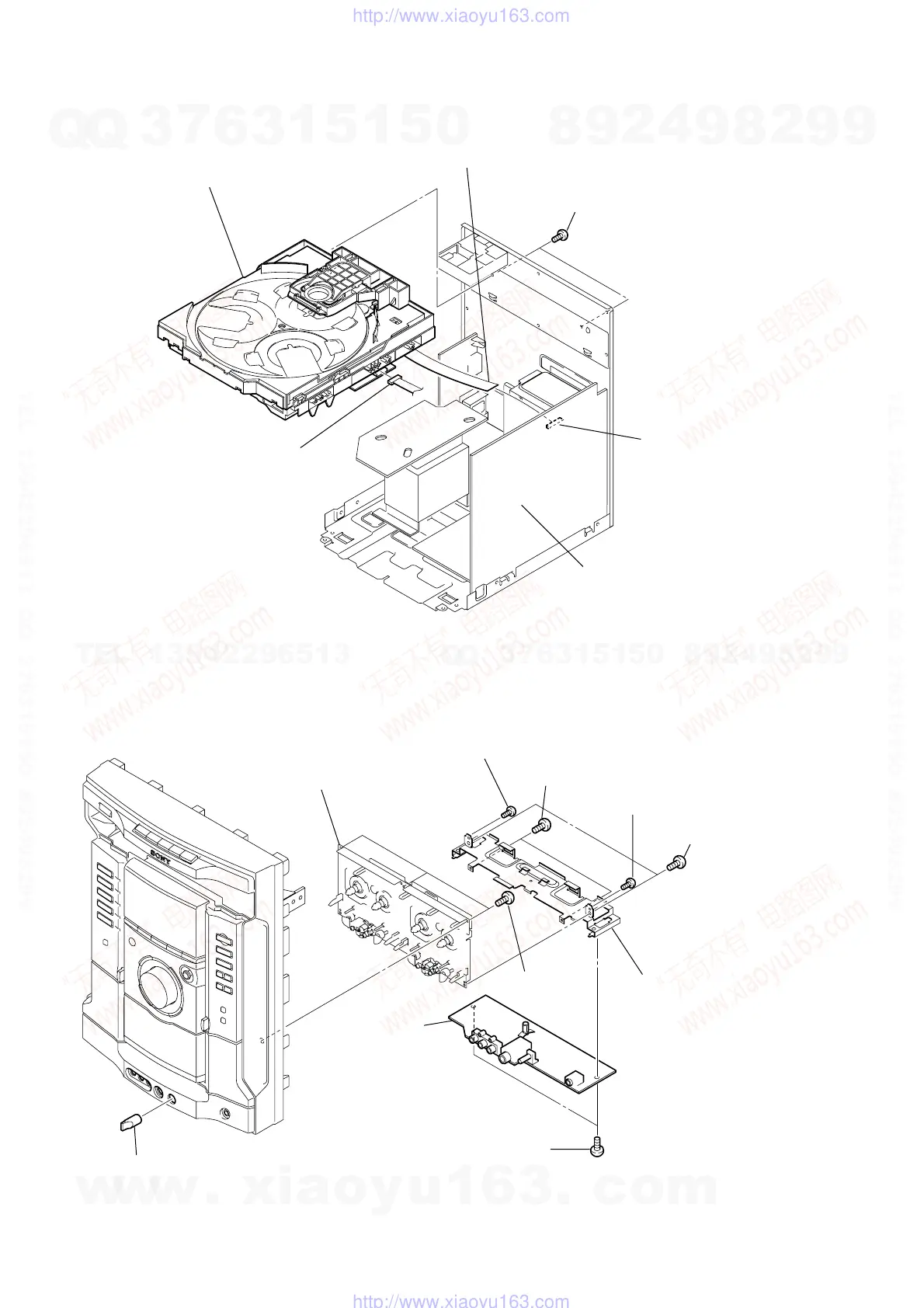

3-5. CD MECHANISM DECK
3-6. GAME IN BOARD, TAPE MECHANISM DECK
4 CD mechanism deck
2 Wire (flat type) (31 core)
1 Two screws (BVTP3 x 10
)
3 CN701
MAIN board
CN201
8 Tape mechanism deck
7 Three screws
(+BVTP2.6 x 8)
Shield plate (GHX)
2 Screw (+PTT2 x 4)
2 Screw (+PTT2 x 4)
4 Two screws (+BVTP2.6 x 8)
3 Two screws
(+BVTP2.6 x 8
)
5 Two screws
(+BVTP2.6 x 8)
6 GAME IN board
1 Knob (MIC)
