Sony HCD-GN600 - 3-11. POWER AMP BOARD Disassembly; 3-12. SW BOARD, DRIVER BOARD Disassembly

13
HCD-GN600

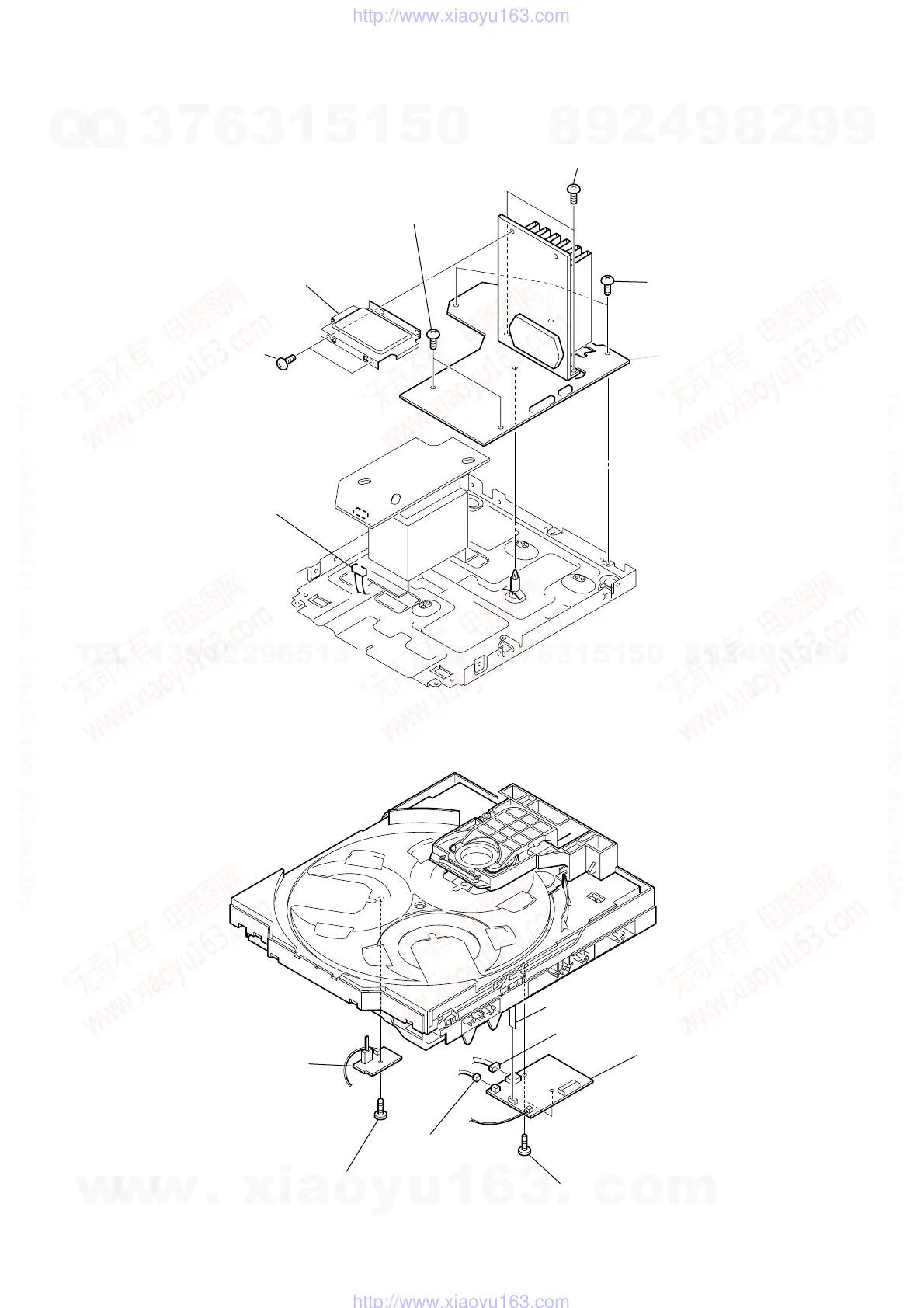

3-11. POWER AMP BOARD
2 Two screws
(+BVTP3 x 10)
3 Bracket (HS)
6 Two screws
(+BVTP3 x 10)
4 Two screws
(+BVTP3 x 10)
5 Three screws
(+BVTP3 x 10)
7 POWER AMP boar
d
1 Connector
from CN997
3-12. SW BOARD, DRIVER BOARD
6 DRIVER boar
d
2 SW board
3 CN704
4 CN703
7 CN702 (flat type)
5 Two screws
(+BTTP (M2.6))
1 Screw
(+BTTP (M2.6))
