Sony HCD-GN600 - 3-15. MOTOR (TB) BOARD Disassembly; 3-16. MOTOR (LD) BOARD Disassembly

15
HCD-GN600

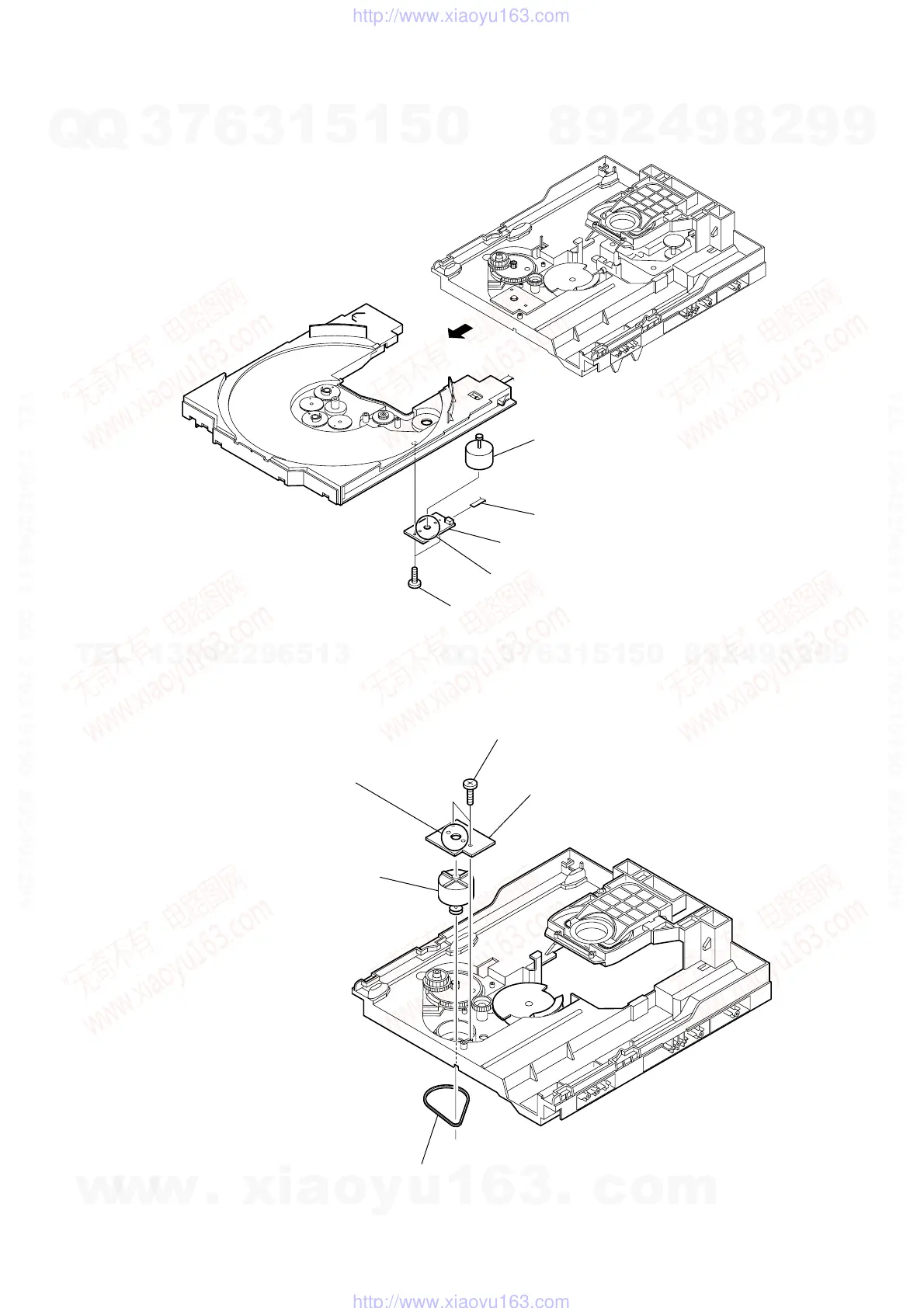

3-15. MOTOR (TB) BOARD
3-16. MOTOR (LD) BOARD
5 Remove the two solderings of motor.
4 MOTOR (TB) board
6 Table motor ASSY (M741)
3 Two screws
(+BTTP (M2.6))
2 CN742 (flat type)
1
4 Remove the two solderings of motor.
3 MOTOR (LD) board
1 Belt (loading)
5 Loading motor ASSY (M751)
2 Two screws
(+BTTP (M2.6))
