Sony HCD-GP5 - Exploded Views; Overall Unit Exploded View

SECTION 7
EXPLODED VIEWS
37
HCD-GP5
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
CND : Canadian model
E51 : Chilean and Peruvian models
HK : Hong Kong model
KR : Korean model
SP : Singapore model
TW : Taiwan model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

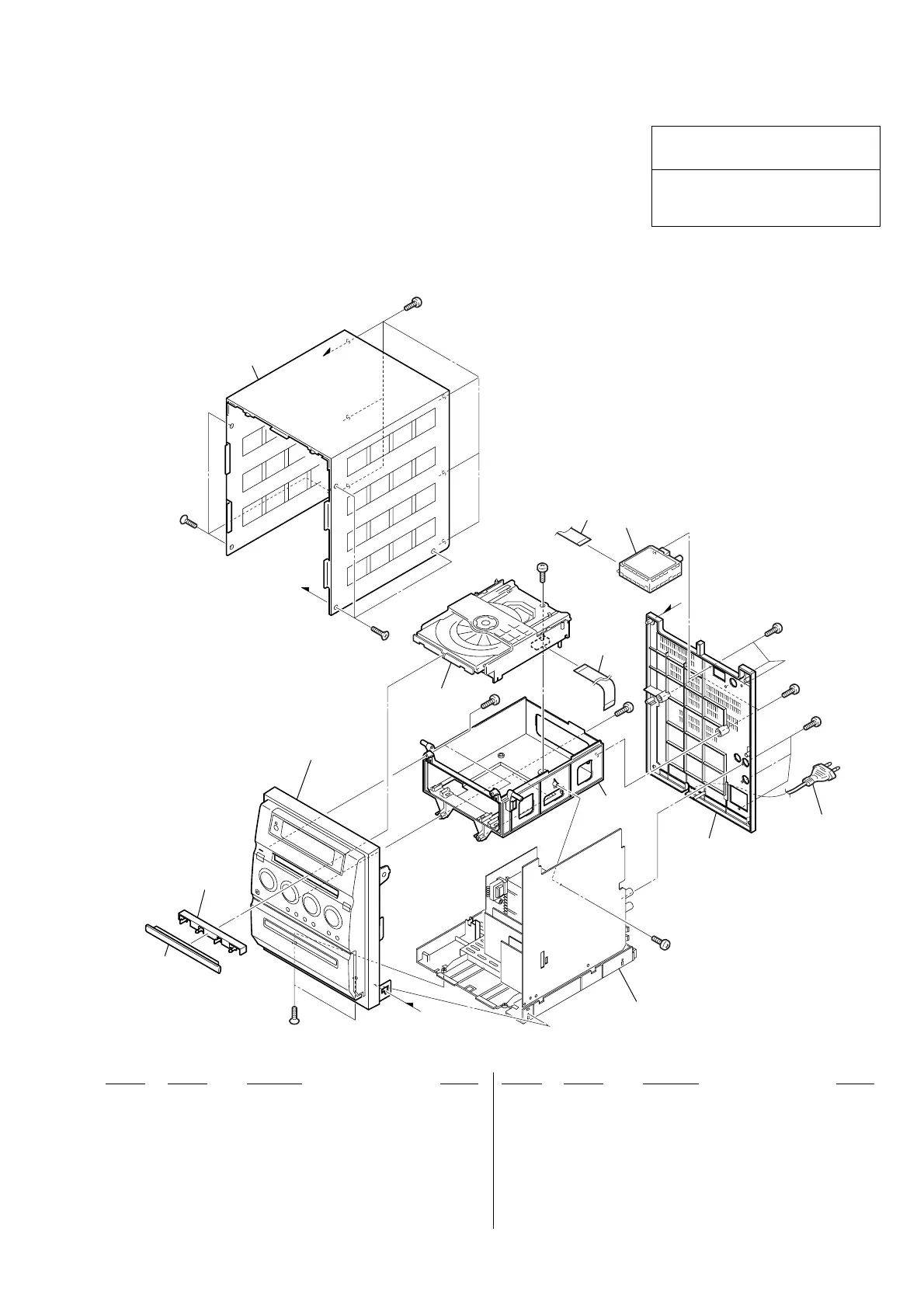

7-1. Overall Section
5
1
3
4
#3
#2
#2
#2
#2
#3
#3
a
a
#3
#1
#1
#1
front panel section
chassis section
CD mechanism
deck section
not
supplied
not
supplied
not
supplied
b
b
2
6
1 4-247-756-01 CABINET, TOP (US,CND,AEP,UK,KR)
1 4-247-756-21 CABINET, TOP (AUS,E51,HK,SP,TW)
2 1-827-731-11 WIRE (FLAT TYPE)(11 CORE)
(EXCEPT AEP,UK,KR)
2 1-828-984-11 WIRE (FLAT TYPE)(15 CORE)(AEP,UK,KR)
3 1-693-619-11 TUNER (FM/AM)(AEP,UK,KR)
3 1-693-620-11 TUNER (FM/AM)(AUS,E51,HK,SP,TW)
3 1-693-624-11 TUNER (FM/AM)(US,CND)
4 4-247-367-01 LID,CD
05 1-765-558-11 CORD, POWER (EXCEPT US,CND,TW,KR)
05 1-769-079-22 CORD, POWER (KR)
05 1-783-532-11 CORD, POWER (US,CND,TW)
6 1-827-714-11 WIRE (FLAT TYPE)(21 CORE)
#1 7-685-248-14 SCREW +KTP 3X12 TYPE2 NON-SLIT
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 NON-S
#3 7-685-647-14 SCREW +BVTP 3X10 TYPE2 NON-S
Ver 1.5
