Sony HCD-GP5 - Disassembly Procedures; Disassembly Sequence Overview; Removing Top Cabinet and Rear Panel

7
HCD-GP5
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

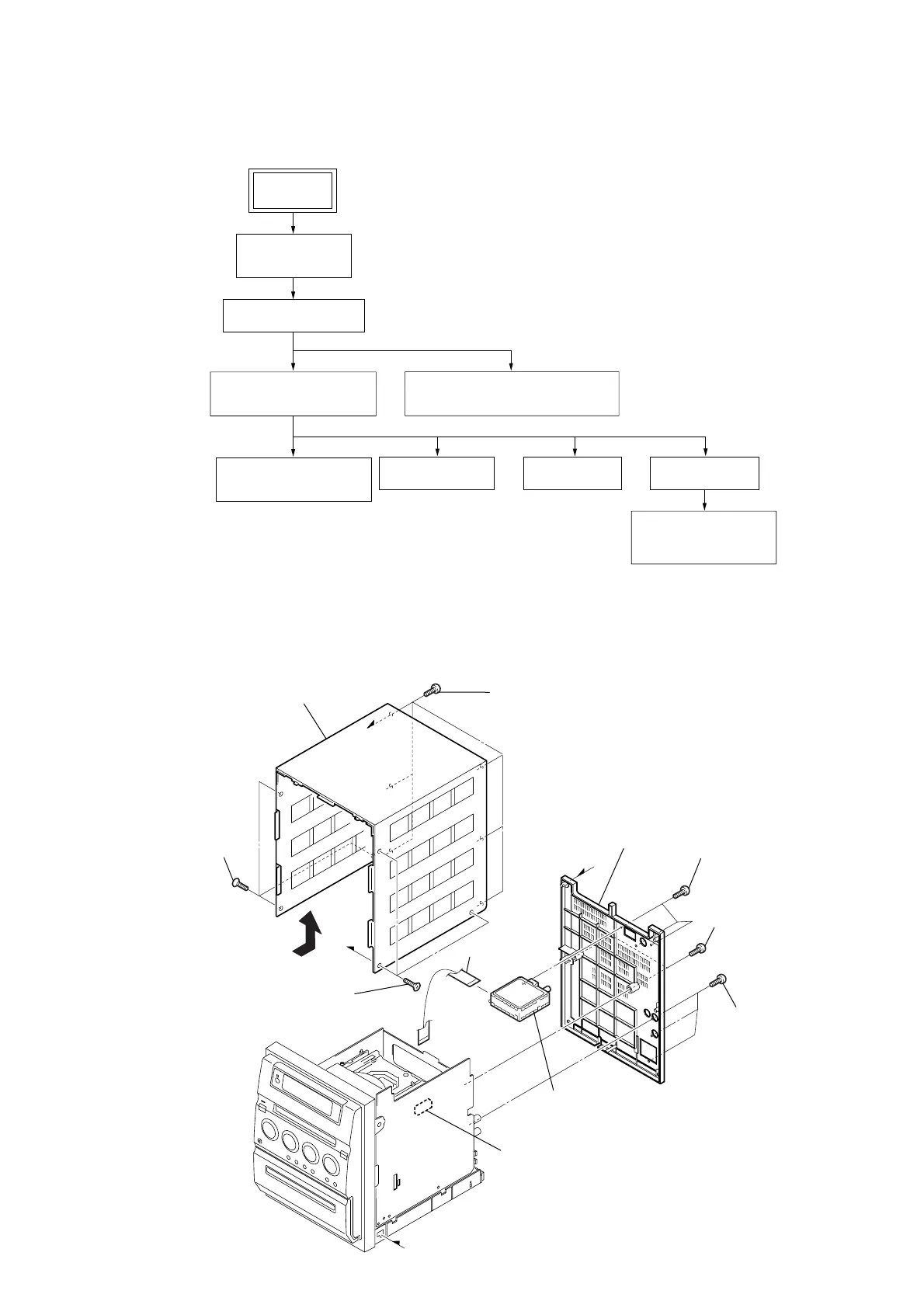

• This set can be disassembled in the order shown below.
3-1. Top Cabinet, Rear Panel
MAIN BOARD,
TRANSFORMER BOARD
LOADING BOARD CD BOARD TRAY (CDM55D)
OPTICAL PICK-UP
(KSM-213D),
HOLDER (C213)
CD MECHANISM DECK
(CDM55A-K6BD44B)
CONTROL BOARD,
SINGLE CASSETTE MECHANISM
FRONT PANEL ASSY
SET
TOP CABINET,
REAR PANEL
4
a
a
b
b
5 top cabinet
1 three s crews
(+KTP 3
× 12)
2 three s crews
(+KTP 3
× 12)
3 six s crews
(+BVTP 3
× 10)
6 w ire (flat type)
11p
q; tuner (FM/AM)
CN304
7 two s crews
(+BVTP 3
× 10)
9 three s crews
(+BVTP 3
× 10)
8 three s crews
(+BVTP 3
× 10)
qa rear panel
