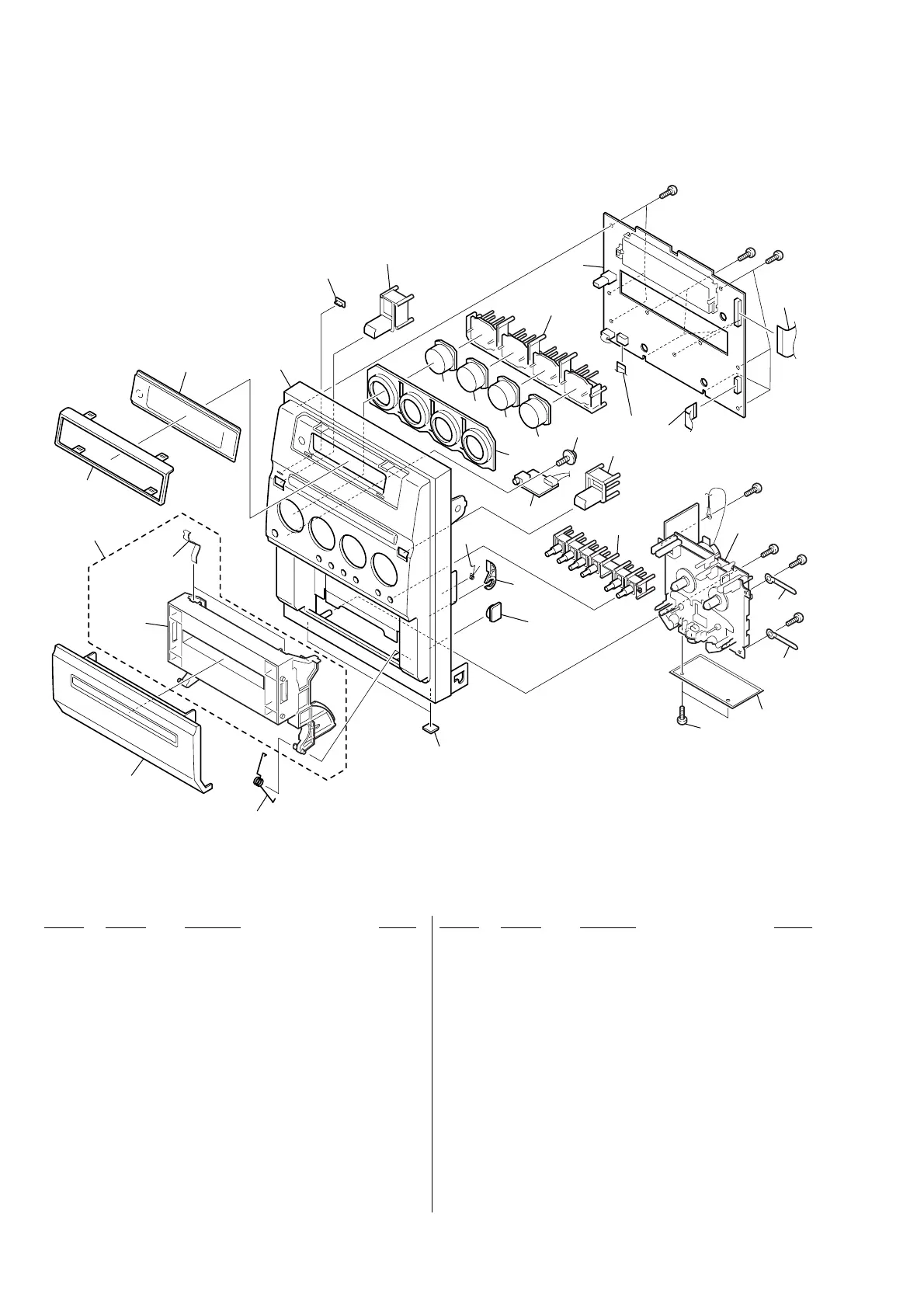

Sony HCD-GP5 - Front Panel Assembly Exploded View

38
HCD-GP5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-2. Front Panel Section
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
73
76
77
79
#2
#2
#2
#2
#2
#2 #2
not
supplied
not
supplied
not
supplied
not
supplied
not
supplie
d
not
supplie
d
72
51 4-247-757-01 SPR-T,CASS
52 X-4955-860-1 LID TC ASSY
53 X-4955-859-1 HOLDER CASSETTE ASSY
54 4-238-631-01 TAPE SPRING
55 4-247-361-01 COVER, DISPLAY
56 4-247-374-01 WINDOW,DISPLAY
57 4-247-366-01 CABINET, FRONT (AEP,UK)
57 4-247-366-21 CABINET, FRONT (EXCEPT AEP,UK)
58 4-247-376-01 POWER,INDICATER
59 4-247-370-01 BUTTON,POWER
60 4-247-357-01 CAP, AUX
61 4-247-358-01 CAP, CD
62 4-247-359-01 CAP, TUNING
63 4-247-356-01 CAP, VOL
64 4-247-360-01 COVER, RING
65 1-689-576-11 HEADPHONE BOARD
66 4-247-369-01 BUTTON,OPEN/CLOSE
67 4-247-368-01 BUTTON,FUNCTION
68 4-231-841-01 SPRING (HEART CAM-B)
69 4-231-825-01 CAM (B), HEART
70 4-242-318-01 OIL-DMPR, 70
71 4-247-752-01 RUBBER, FOOT
72 1-829-747-11 WIRE (FLAT TYPE)(26 CORE)
73 1-796-351-51 MECHANISM, SINGLE CASSETTE
76 4-247-371-01 BUTTON,CD
77 A-4747-954-A CONTROL BOARD, COMPLETE (AEP,UK,KR)
77 A-4747-960-A CONTROL BOARD, COMPLETE (US,CND)
77 A-4748-774-A CONTROL BOARD, COMPLETE
(E51,HK,SP,TW,AUS)
79 3-229-336-01 SCREW +BVWH TAPPING
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 NON-S
Ver 1.5
