Note:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• CAPACITORS:
uF: µF
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• COILS
uH: µH
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 22 —

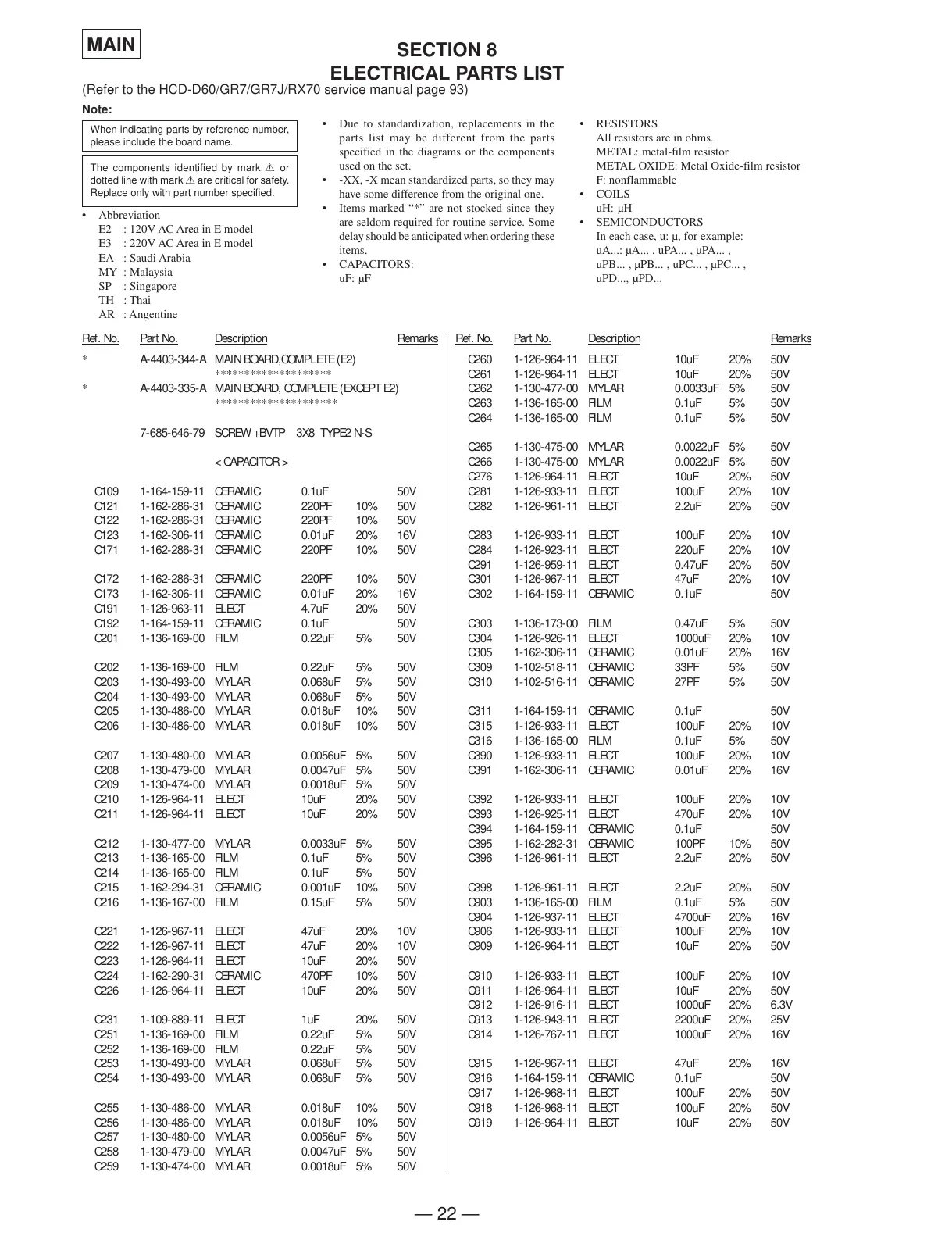

SECTION 8
ELECTRICAL PARTS LIST
• Abbreviation
E2 : 120V AC Area in E model
E3 : 220V AC Area in E model
EA : Saudi Arabia
MY : Malaysia
SP : Singapore
TH : Thai
AR : Angentine
* A-4403-344-A MAIN BOARD,COMPLETE (E2)
********************
* A-4403-335-A MAIN BOARD, COMPLETE (EXCEPT E2)
*********************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
< CAPACITOR >
C109 1-164-159-11 CERAMIC 0.1uF 50V
C121 1-162-286-31 CERAMIC 220PF 10% 50V
C122 1-162-286-31 CERAMIC 220PF 10% 50V
C123 1-162-306-11 CERAMIC 0.01uF 20% 16V
C171 1-162-286-31 CERAMIC 220PF 10% 50V
C172 1-162-286-31 CERAMIC 220PF 10% 50V
C173 1-162-306-11 CERAMIC 0.01uF 20% 16V
C191 1-126-963-11 ELECT 4.7uF 20% 50V
C192 1-164-159-11 CERAMIC 0.1uF 50V
C201 1-136-169-00 FILM 0.22uF 5% 50V
C202 1-136-169-00 FILM 0.22uF 5% 50V
C203 1-130-493-00 MYLAR 0.068uF 5% 50V
C204 1-130-493-00 MYLAR 0.068uF 5% 50V
C205 1-130-486-00 MYLAR 0.018uF 10% 50V
C206 1-130-486-00 MYLAR 0.018uF 10% 50V
C207 1-130-480-00 MYLAR 0.0056uF 5% 50V
C208 1-130-479-00 MYLAR 0.0047uF 5% 50V
C209 1-130-474-00 MYLAR 0.0018uF 5% 50V
C210 1-126-964-11 ELECT 10uF 20% 50V
C211 1-126-964-11 ELECT 10uF 20% 50V
C212 1-130-477-00 MYLAR 0.0033uF 5% 50V
C213 1-136-165-00 FILM 0.1uF 5% 50V
C214 1-136-165-00 FILM 0.1uF 5% 50V
C215 1-162-294-31 CERAMIC 0.001uF 10% 50V
C216 1-136-167-00 FILM 0.15uF 5% 50V
C221 1-126-967-11 ELECT 47uF 20% 10V
C222 1-126-967-11 ELECT 47uF 20% 10V
C223 1-126-964-11 ELECT 10uF 20% 50V
C224 1-162-290-31 CERAMIC 470PF 10% 50V
C226 1-126-964-11 ELECT 10uF 20% 50V
C231 1-109-889-11 ELECT 1uF 20% 50V
C251 1-136-169-00 FILM 0.22uF 5% 50V
C252 1-136-169-00 FILM 0.22uF 5% 50V
C253 1-130-493-00 MYLAR 0.068uF 5% 50V
C254 1-130-493-00 MYLAR 0.068uF 5% 50V
C255 1-130-486-00 MYLAR 0.018uF 10% 50V
C256 1-130-486-00 MYLAR 0.018uF 10% 50V
C257 1-130-480-00 MYLAR 0.0056uF 5% 50V
C258 1-130-479-00 MYLAR 0.0047uF 5% 50V
C259 1-130-474-00 MYLAR 0.0018uF 5% 50V
C260 1-126-964-11 ELECT 10uF 20% 50V
C261 1-126-964-11 ELECT 10uF 20% 50V
C262 1-130-477-00 MYLAR 0.0033uF 5% 50V
C263 1-136-165-00 FILM 0.1uF 5% 50V
C264 1-136-165-00 FILM 0.1uF 5% 50V
C265 1-130-475-00 MYLAR 0.0022uF 5% 50V
C266 1-130-475-00 MYLAR 0.0022uF 5% 50V
C276 1-126-964-11 ELECT 10uF 20% 50V
C281 1-126-933-11 ELECT 100uF 20% 10V
C282 1-126-961-11 ELECT 2.2uF 20% 50V
C283 1-126-933-11 ELECT 100uF 20% 10V
C284 1-126-923-11 ELECT 220uF 20% 10V
C291 1-126-959-11 ELECT 0.47uF 20% 50V
C301 1-126-967-11 ELECT 47uF 20% 10V
C302 1-164-159-11 CERAMIC 0.1uF 50V
C303 1-136-173-00 FILM 0.47uF 5% 50V
C304 1-126-926-11 ELECT 1000uF 20% 10V
C305 1-162-306-11 CERAMIC 0.01uF 20% 16V
C309 1-102-518-11 CERAMIC 33PF 5% 50V
C310 1-102-516-11 CERAMIC 27PF 5% 50V
C311 1-164-159-11 CERAMIC 0.1uF 50V
C315 1-126-933-11 ELECT 100uF 20% 10V
C316 1-136-165-00 FILM 0.1uF 5% 50V
C390 1-126-933-11 ELECT 100uF 20% 10V
C391 1-162-306-11 CERAMIC 0.01uF 20% 16V
C392 1-126-933-11 ELECT 100uF 20% 10V
C393 1-126-925-11 ELECT 470uF 20% 10V
C394 1-164-159-11 CERAMIC 0.1uF 50V
C395 1-162-282-31 CERAMIC 100PF 10% 50V
C396 1-126-961-11 ELECT 2.2uF 20% 50V
C398 1-126-961-11 ELECT 2.2uF 20% 50V
C903 1-136-165-00 FILM 0.1uF 5% 50V
C904 1-126-937-11 ELECT 4700uF 20% 16V
C906 1-126-933-11 ELECT 100uF 20% 10V
C909 1-126-964-11 ELECT 10uF 20% 50V
C910 1-126-933-11 ELECT 100uF 20% 10V
C911 1-126-964-11 ELECT 10uF 20% 50V
C912 1-126-916-11 ELECT 1000uF 20% 6.3V
C913 1-126-943-11 ELECT 2200uF 20% 25V
C914 1-126-767-11 ELECT 1000uF 20% 16V
C915 1-126-967-11 ELECT 47uF 20% 16V
C916 1-164-159-11 CERAMIC 0.1uF 50V
C917 1-126-968-11 ELECT 100uF 20% 50V
C918 1-126-968-11 ELECT 100uF 20% 50V
C919 1-126-964-11 ELECT 10uF 20% 50V
MAIN
(Refer to the HCD-D60/GR7/GR7J/RX70 service manual page 93)
