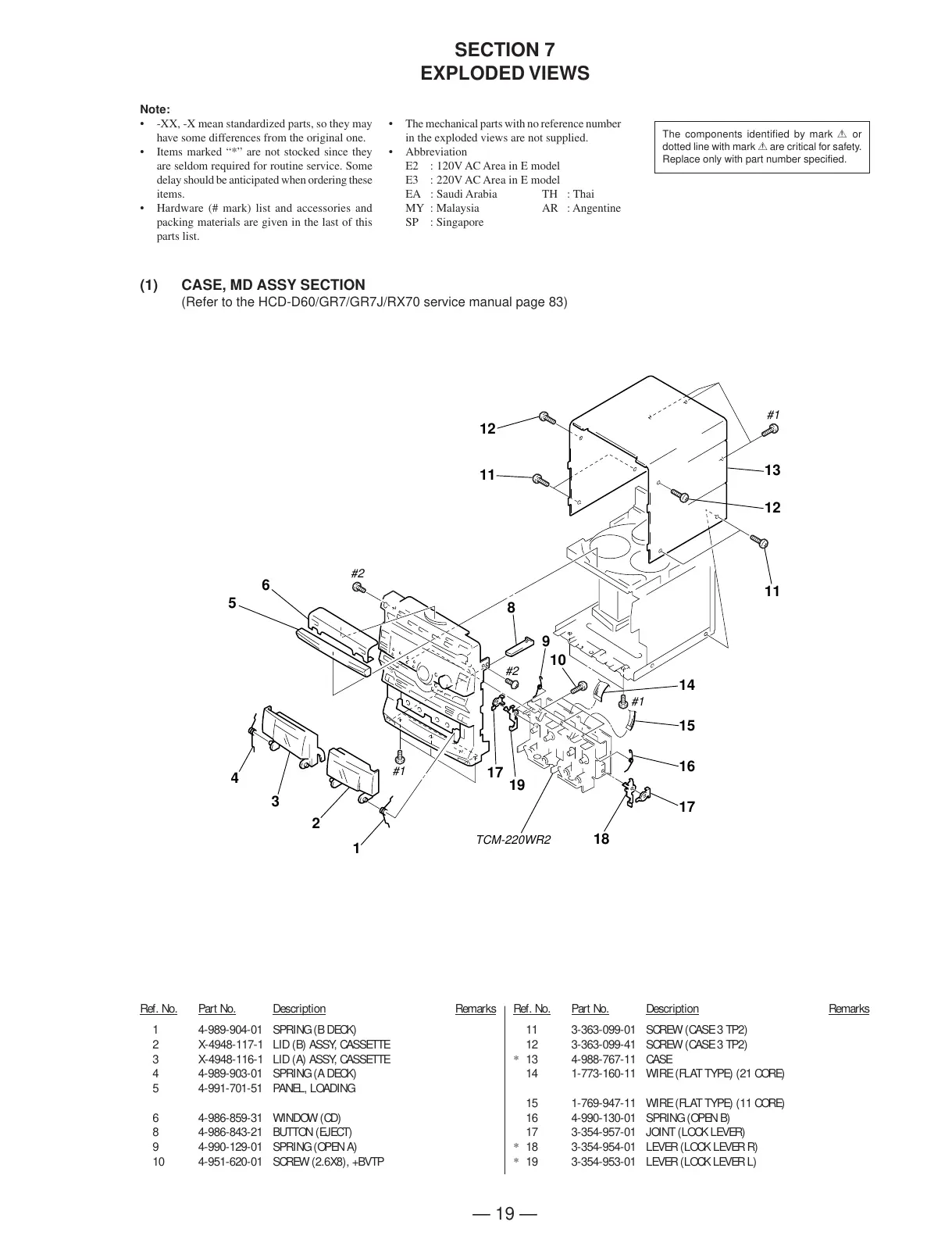

SECTION 7
EXPLODED VIEWS
Note:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
E2 : 120V AC Area in E model
E3 : 220V AC Area in E model
EA : Saudi Arabia TH : Thai
MY : Malaysia AR : Angentine
SP : Singapore
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
— 19 —
(1) CASE, MD ASSY SECTION
(Refer to the HCD-D60/GR7/GR7J/RX70 service manual page 83)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-989-904-01 SPRING (B DECK)
2 X-4948-117-1 LID (B) ASSY, CASSETTE
3 X-4948-116-1 LID (A) ASSY, CASSETTE
4 4-989-903-01 SPRING (A DECK)
5 4-991-701-51 PANEL, LOADING
6 4-986-859-31 WINDOW (CD)
8 4-986-843-21 BUTTON (EJECT)
9 4-990-129-01 SPRING (OPEN A)
10 4-951-620-01 SCREW (2.6X8), +BVTP
11 3-363-099-01 SCREW (CASE 3 TP2)
12 3-363-099-41 SCREW (CASE 3 TP2)
* 13 4-988-767-11 CASE
14 1-773-160-11 WIRE (FLAT TYPE) (21 CORE)
15 1-769-947-11 WIRE (FLAT TYPE) (11 CORE)
16 4-990-130-01 SPRING (OPEN B)
17 3-354-957-01 JOINT (LOCK LEVER)
* 18 3-354-954-01 LEVER (LOCK LEVER R)
* 19 3-354-953-01 LEVER (LOCK LEVER L)
1
2
3
4
5
6
8
9
10
11
12
13
12
11
14
15
16
17
18
19
17
#1
#1
#1
#2
#2
TCM-220WR2
