Sony HCD-GR8000 - Chassis Component Layout

— 21 —

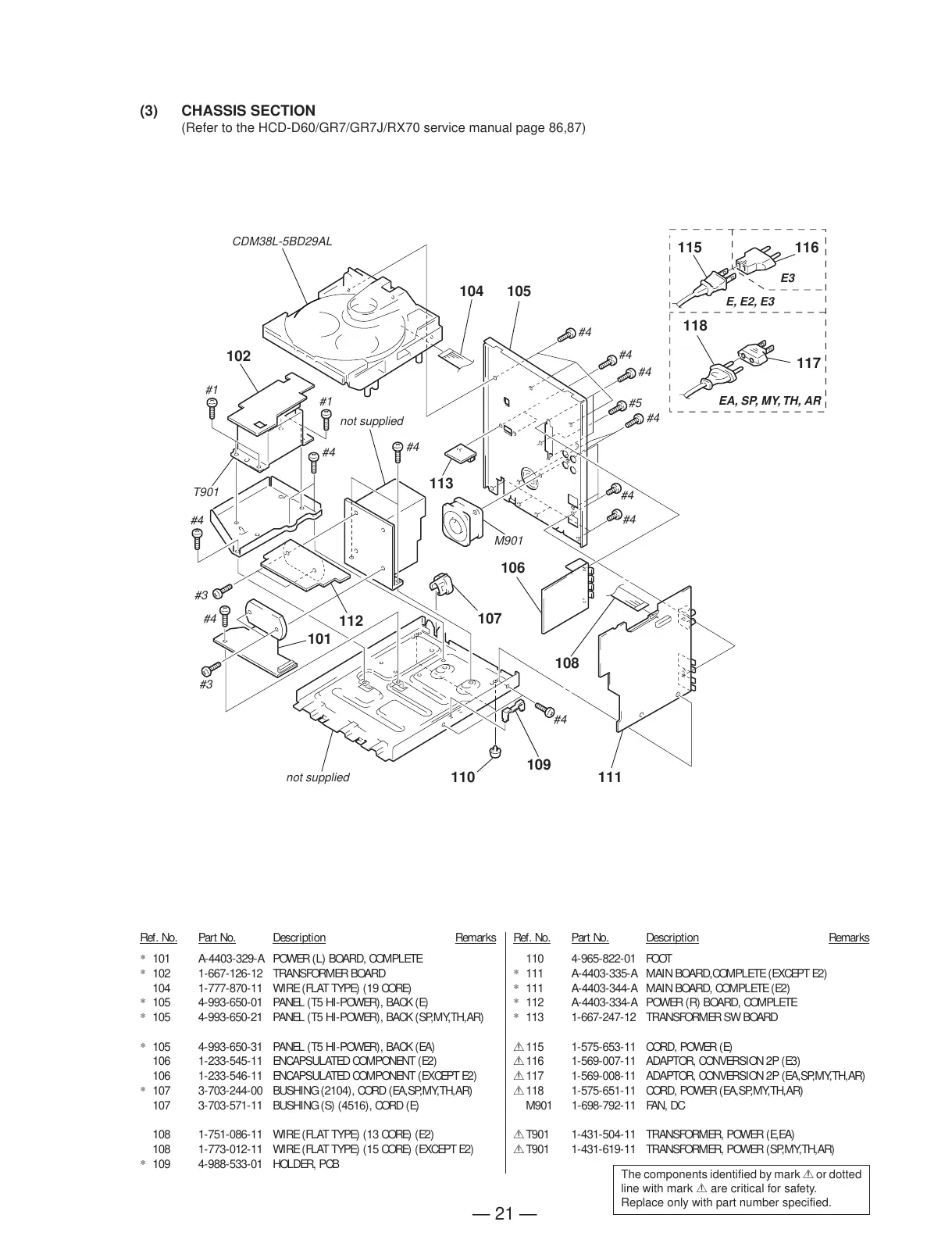

(3) CHASSIS SECTION
(Refer to the HCD-D60/GR7/GR7J/RX70 service manual page 86,87)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 101 A-4403-329-A POWER (L) BOARD, COMPLETE
* 102 1-667-126-12 TRANSFORMER BOARD
104 1-777-870-11 WIRE (FLAT TYPE) (19 CORE)
* 105 4-993-650-01 PANEL (T5 HI-POWER), BACK (E)
* 105 4-993-650-21 PANEL (T5 HI-POWER), BACK (SP,MY,TH,AR)
* 105 4-993-650-31 PANEL (T5 HI-POWER), BACK (EA)
106 1-233-545-11 ENCAPSULATED COMPONENT (E2)
106 1-233-546-11 ENCAPSULATED COMPONENT (EXCEPT E2)
* 107 3-703-244-00 BUSHING (2104), CORD (EA,SP,MY,TH,AR)
107 3-703-571-11 BUSHING (S) (4516), CORD (E)
108 1-751-086-11 WIRE (FLAT TYPE) (13 CORE) (E2)
108 1-773-012-11 WIRE (FLAT TYPE) (15 CORE) ( EXCEPT E2 )
* 109 4-988-533-01 HOLDER, PCB
110 4-965-822-01 FOOT
* 111 A-4403-335-A MAIN BOARD,COMPLETE (EXCEPT E2)
* 111 A-4403-344-A MAIN BOARD, COMPLETE (E2)
* 112 A-4403-334-A POWER (R) BOARD, COMPLETE
* 113 1-667-247-12 TRANSFORMER SW BOARD
! 115 1-575-653-11 CORD, POWER (E)
! 116 1-569-007-11 ADAPTOR, CONVERSION 2P (E3)
! 117 1-569-008-11 ADAPTOR, CONVERSION 2P (EA,SP,MY,TH,AR)
! 118 1-575-651-11 CORD, POWER (EA,SP,MY,TH,AR)
M901 1-698-792-11 FAN, DC
! T901 1-431-504-11 TRANSFORMER, POWER (E,EA)
! T901 1-431-619-11 TRANSFORMER, POWER (SP,MY,TH,AR)
101
112
102
104
105
106
113
107
108
109
110
111
#4
M901
T901
#4
#4
#4
#5
#4
#4
#4
#4
#1
#1
not supplied
CDM38L-5BD29AL
not supplied
#4
#3
#3
115 116
117
118
E, E2, E3
E3
EA, SP, MY, TH, AR
#4
#4
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
