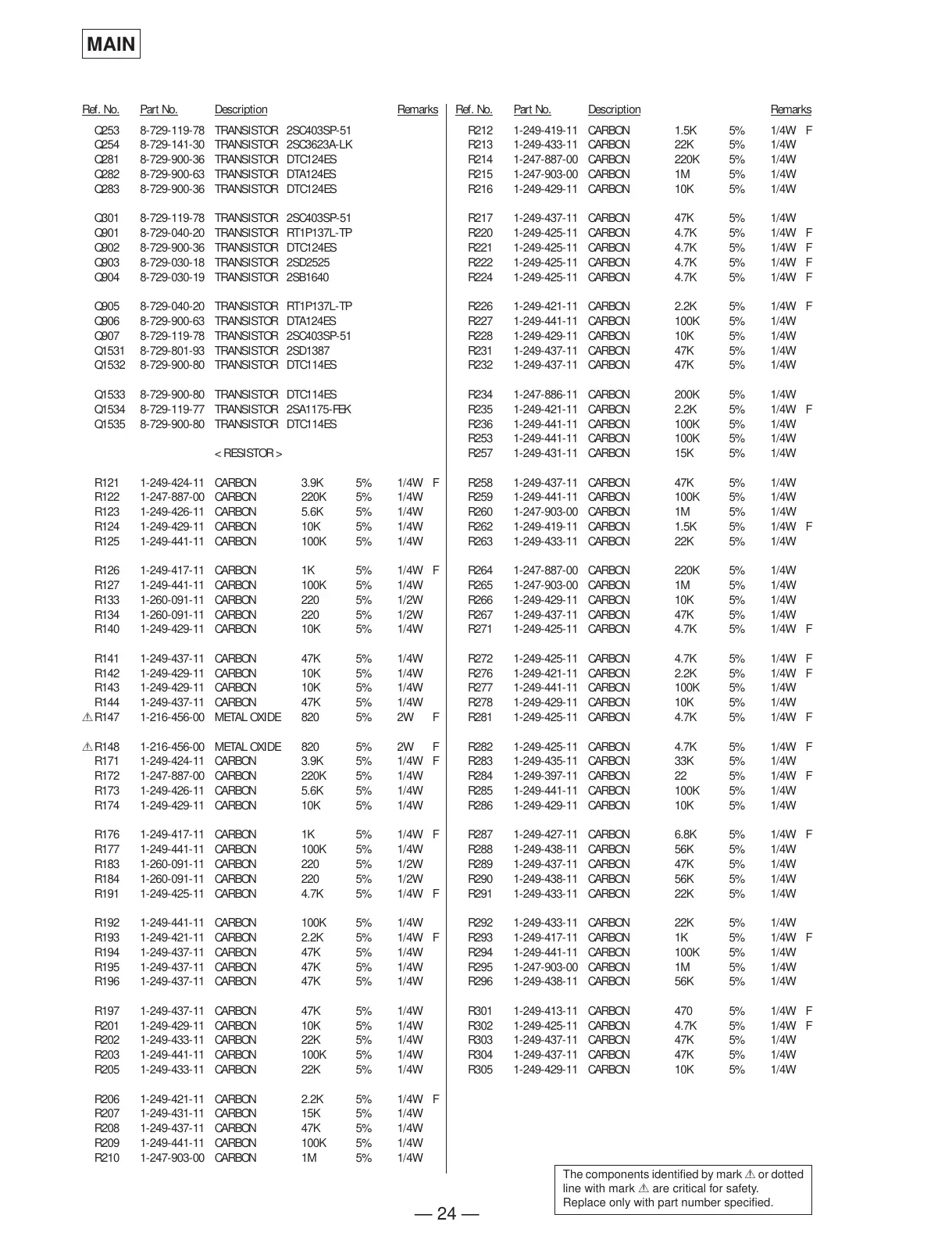

Sony HCD-GR8000 - Resistor and Transistor Components (Continued)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 24 —
Q253 8-729-119-78 TRANSISTOR 2SC403SP-51
Q254 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q281 8-729-900-36 TRANSISTOR DTC124ES
Q282 8-729-900-63 TRANSISTOR DTA124ES
Q283 8-729-900-36 TRANSISTOR DTC124ES
Q301 8-729-119-78 TRANSISTOR 2SC403SP-51
Q901 8-729-040-20 TRANSISTOR RT1P137L-TP
Q902 8-729-900-36 TRANSISTOR DTC124ES
Q903 8-729-030-18 TRANSISTOR 2SD2525
Q904 8-729-030-19 TRANSISTOR 2SB1640
Q905 8-729-040-20 TRANSISTOR RT1P137L-TP
Q906 8-729-900-63 TRANSISTOR DTA124ES
Q907 8-729-119-78 TRANSISTOR 2SC403SP-51
Q1531 8-729-801-93 TRANSISTOR 2SD1387
Q1532 8-729-900-80 TRANSISTOR DTC114ES
Q1533 8-729-900-80 TRANSISTOR DTC114ES
Q1534 8-729-119-77 TRANSISTOR 2SA1175-FEK
Q1535 8-729-900-80 TRANSISTOR DTC114ES
< RESISTOR >
R121 1-249-424-11 CARBON 3.9K 5% 1/4W F
R122 1-247-887-00 CARBON 220K 5% 1/4W
R123 1-249-426-11 CARBON 5.6K 5% 1/4W
R124 1-249-429-11 CARBON 10K 5% 1/4W
R125 1-249-441-11 CARBON 100K 5% 1/4W
R126 1-249-417-11 CARBON 1K 5% 1/4W F
R127 1-249-441-11 CARBON 100K 5% 1/4W
R133 1-260-091-11 CARBON 220 5% 1/2W
R134 1-260-091-11 CARBON 220 5% 1/2W
R140 1-249-429-11 CARBON 10K 5% 1/4W
R141 1-249-437-11 CARBON 47K 5% 1/4W
R142 1-249-429-11 CARBON 10K 5% 1/4W
R143 1-249-429-11 CARBON 10K 5% 1/4W
R144 1-249-437-11 CARBON 47K 5% 1/4W
! R147 1-216-456-00 METAL OXIDE 820 5% 2W F
! R148 1-216-456-00 METAL OXIDE 820 5% 2W F
R171 1-249-424-11 CARBON 3.9K 5% 1/4W F
R172 1-247-887-00 CARBON 220K 5% 1/4W
R173 1-249-426-11 CARBON 5.6K 5% 1/4W
R174 1-249-429-11 CARBON 10K 5% 1/4W
R176 1-249-417-11 CARBON 1K 5% 1/4W F
R177 1-249-441-11 CARBON 100K 5% 1/4W
R183 1-260-091-11 CARBON 220 5% 1/2W
R184 1-260-091-11 CARBON 220 5% 1/2W
R191 1-249-425-11 CARBON 4.7K 5% 1/4W F
R192 1-249-441-11 CARBON 100K 5% 1/4W
R193 1-249-421-11 CARBON 2.2K 5% 1/4W F
R194 1-249-437-11 CARBON 47K 5% 1/4W
R195 1-249-437-11 CARBON 47K 5% 1/4W
R196 1-249-437-11 CARBON 47K 5% 1/4W
R197 1-249-437-11 CARBON 47K 5% 1/4W
R201 1-249-429-11 CARBON 10K 5% 1/4W
R202 1-249-433-11 CARBON 22K 5% 1/4W
R203 1-249-441-11 CARBON 100K 5% 1/4W
R205 1-249-433-11 CARBON 22K 5% 1/4W
R206 1-249-421-11 CARBON 2.2K 5% 1/4W F
R207 1-249-431-11 CARBON 15K 5% 1/4W
R208 1-249-437-11 CARBON 47K 5% 1/4W
R209 1-249-441-11 CARBON 100K 5% 1/4W
R210 1-247-903-00 CARBON 1M 5% 1/4W
R212 1-249-419-11 CARBON 1.5K 5% 1/4W F
R213 1-249-433-11 CARBON 22K 5% 1/4W
R214 1-247-887-00 CARBON 220K 5% 1/4W
R215 1-247-903-00 CARBON 1M 5% 1/4W
R216 1-249-429-11 CARBON 10K 5% 1/4W
R217 1-249-437-11 CARBON 47K 5% 1/4W
R220 1-249-425-11 CARBON 4.7K 5% 1/4W F
R221 1-249-425-11 CARBON 4.7K 5% 1/4W F
R222 1-249-425-11 CARBON 4.7K 5% 1/4W F
R224 1-249-425-11 CARBON 4.7K 5% 1/4W F
R226 1-249-421-11 CARBON 2.2K 5% 1/4W F
R227 1-249-441-11 CARBON 100K 5% 1/4W
R228 1-249-429-11 CARBON 10K 5% 1/4W
R231 1-249-437-11 CARBON 47K 5% 1/4W
R232 1-249-437-11 CARBON 47K 5% 1/4W
R234 1-247-886-11 CARBON 200K 5% 1/4W
R235 1-249-421-11 CARBON 2.2K 5% 1/4W F
R236 1-249-441-11 CARBON 100K 5% 1/4W
R253 1-249-441-11 CARBON 100K 5% 1/4W
R257 1-249-431-11 CARBON 15K 5% 1/4W
R258 1-249-437-11 CARBON 47K 5% 1/4W
R259 1-249-441-11 CARBON 100K 5% 1/4W
R260 1-247-903-00 CARBON 1M 5% 1/4W
R262 1-249-419-11 CARBON 1.5K 5% 1/4W F
R263 1-249-433-11 CARBON 22K 5% 1/4W
R264 1-247-887-00 CARBON 220K 5% 1/4W
R265 1-247-903-00 CARBON 1M 5% 1/4W
R266 1-249-429-11 CARBON 10K 5% 1/4W
R267 1-249-437-11 CARBON 47K 5% 1/4W
R271 1-249-425-11 CARBON 4.7K 5% 1/4W F
R272 1-249-425-11 CARBON 4.7K 5% 1/4W F
R276 1-249-421-11 CARBON 2.2K 5% 1/4W F
R277 1-249-441-11 CARBON 100K 5% 1/4W
R278 1-249-429-11 CARBON 10K 5% 1/4W
R281 1-249-425-11 CARBON 4.7K 5% 1/4W F
R282 1-249-425-11 CARBON 4.7K 5% 1/4W F
R283 1-249-435-11 CARBON 33K 5% 1/4W
R284 1-249-397-11 CARBON 22 5% 1/4W F
R285 1-249-441-11 CARBON 100K 5% 1/4W
R286 1-249-429-11 CARBON 10K 5% 1/4W
R287 1-249-427-11 CARBON 6.8K 5% 1/4W F
R288 1-249-438-11 CARBON 56K 5% 1/4W
R289 1-249-437-11 CARBON 47K 5% 1/4W
R290 1-249-438-11 CARBON 56K 5% 1/4W
R291 1-249-433-11 CARBON 22K 5% 1/4W
R292 1-249-433-11 CARBON 22K 5% 1/4W
R293 1-249-417-11 CARBON 1K 5% 1/4W F
R294 1-249-441-11 CARBON 100K 5% 1/4W
R295 1-247-903-00 CARBON 1M 5% 1/4W
R296 1-249-438-11 CARBON 56K 5% 1/4W
R301 1-249-413-11 CARBON 470 5% 1/4W F
R302 1-249-425-11 CARBON 4.7K 5% 1/4W F
R303 1-249-437-11 CARBON 47K 5% 1/4W
R304 1-249-437-11 CARBON 47K 5% 1/4W
R305 1-249-429-11 CARBON 10K 5% 1/4W
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
MAIN
