Sony HCD-GRX50 - Board Removal Procedures; Tape Mechanism & Main Board Removal

– 10 –

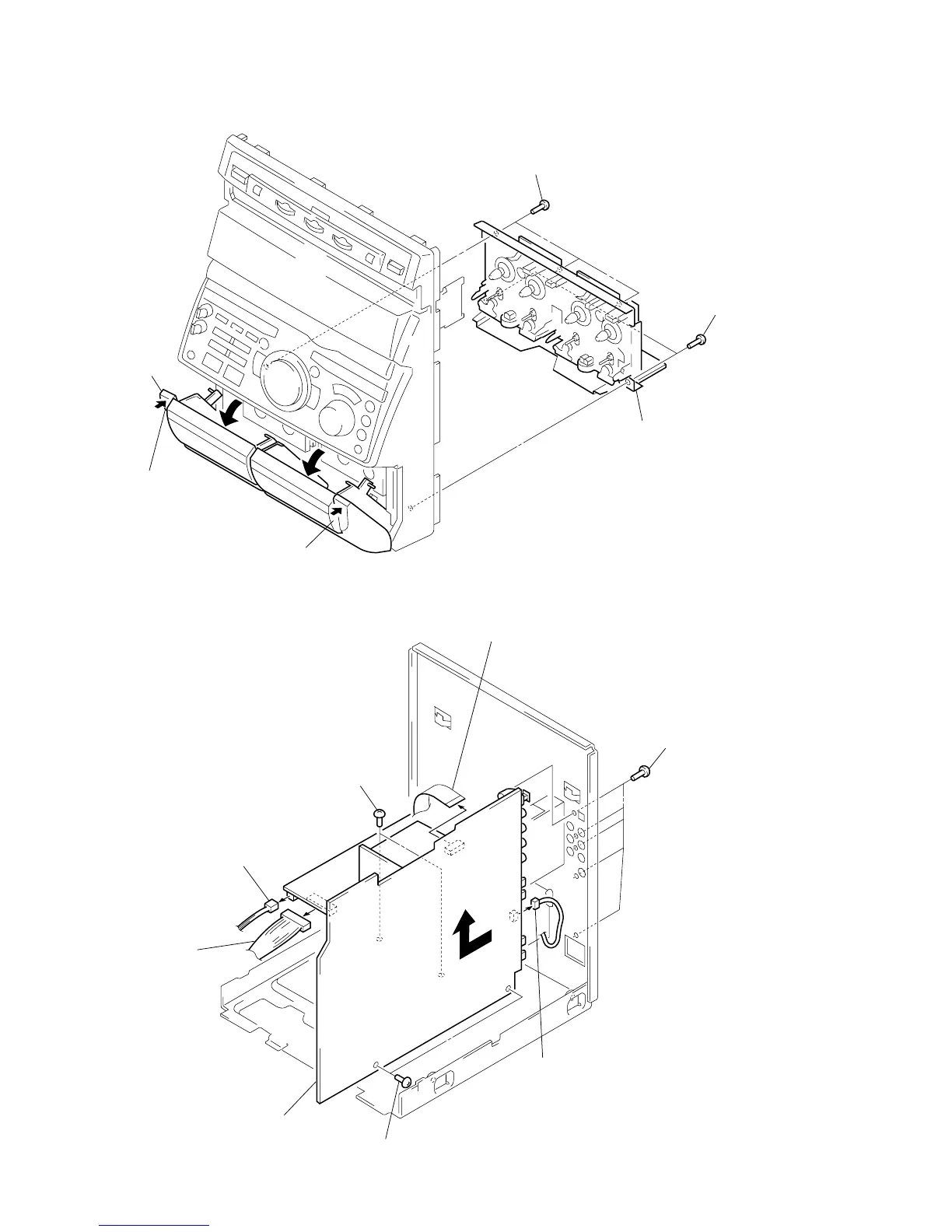

TAPE MECHANISM DECK SECTION (TCM-230AWR2)
MAIN BOARD
1 Push the cassette lid.
4 tape mechanism deck section
(TCM-230AWR2)
1 Push the cassette lid.
2 Open two
cassette lids.
3 two screws
(BVTP2.6
× 8)
3 three screws
(BVTP2.6
× 8)
6 five screws
(BVTP3
× 8)
5 two screws
(BVTP3
× 8)
8 connector
(CN403)
(EXCEPT Canadian)
4 two screws
(BVTP3
× 8)
3 connector
(CN953) (GRX50)
2 connector
(CN952)
7 Remove the MAIN board
in the direction of the arrow.
1 wire (flat type)
13 core: EXCEPT AEP, UK, Singapore, Taiwan
15 core: AEP, UK, Singapore, Taiwan
(CN371)
(
)
