Sony HCD-GRX50 - Printed Wiring Board - MAIN Board

HCD-GRX50/R770/RXD7
GRX50 : E3, EA3, SP, TW/
R770/RXD7 : CND
(GRX50 : E3, EA3, SP, TW/R770/RXD7 : CND)
– 43 –
– 44 –

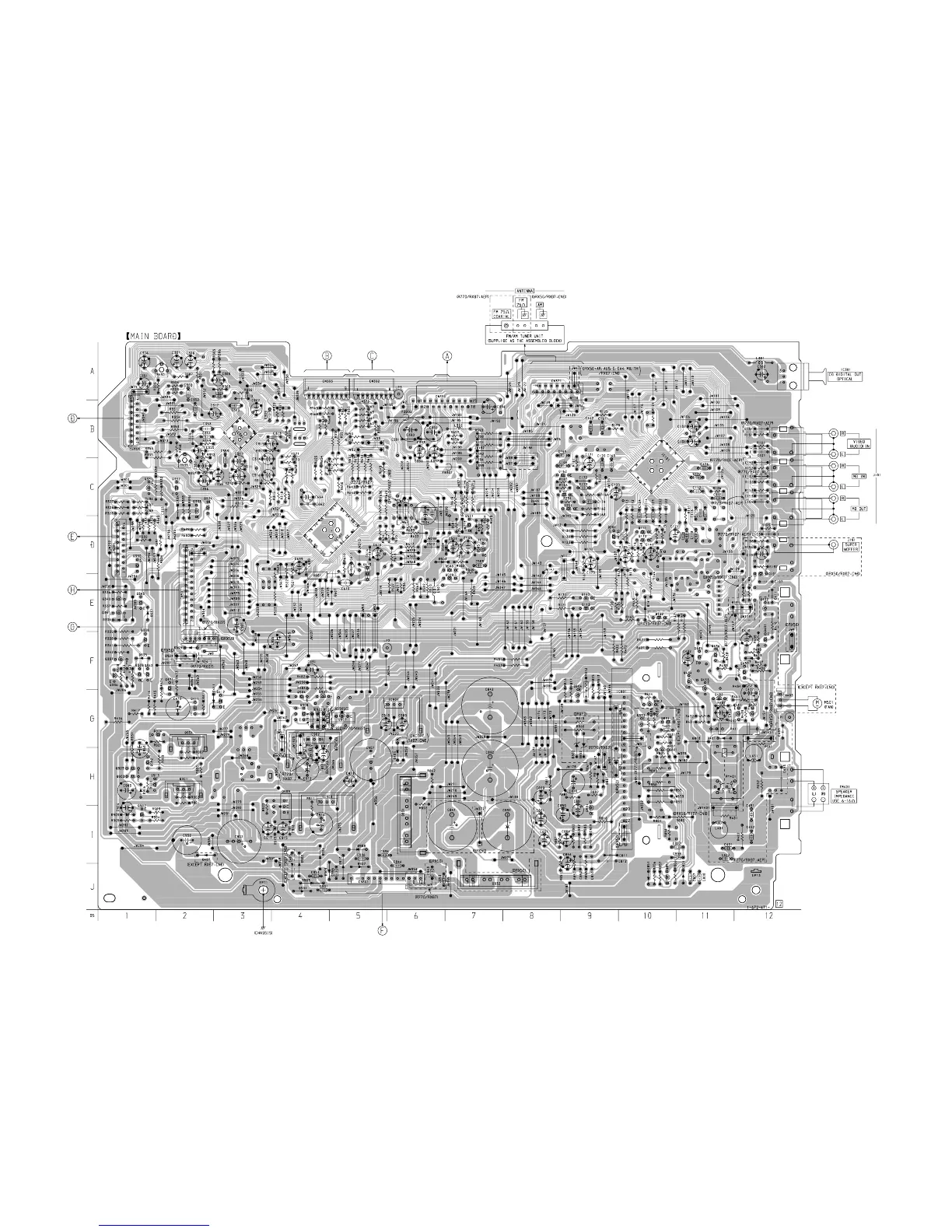

7-14. PRINTED WIRING BOARD – MAIN Board – • See page 28 for Circuit Boards Location.
(Page 33)
(Page 33)
(Page 30)
(Page 38)
(Page 41)
(Page 53)
(Page 61)
(Page 61)
