Sony HCD-GRX50 - Control Panel Overview; Front and Rear Panel Control Identification

– 6 –
SECTION 2
GENERAL
This section is extracted from
instruction manual.

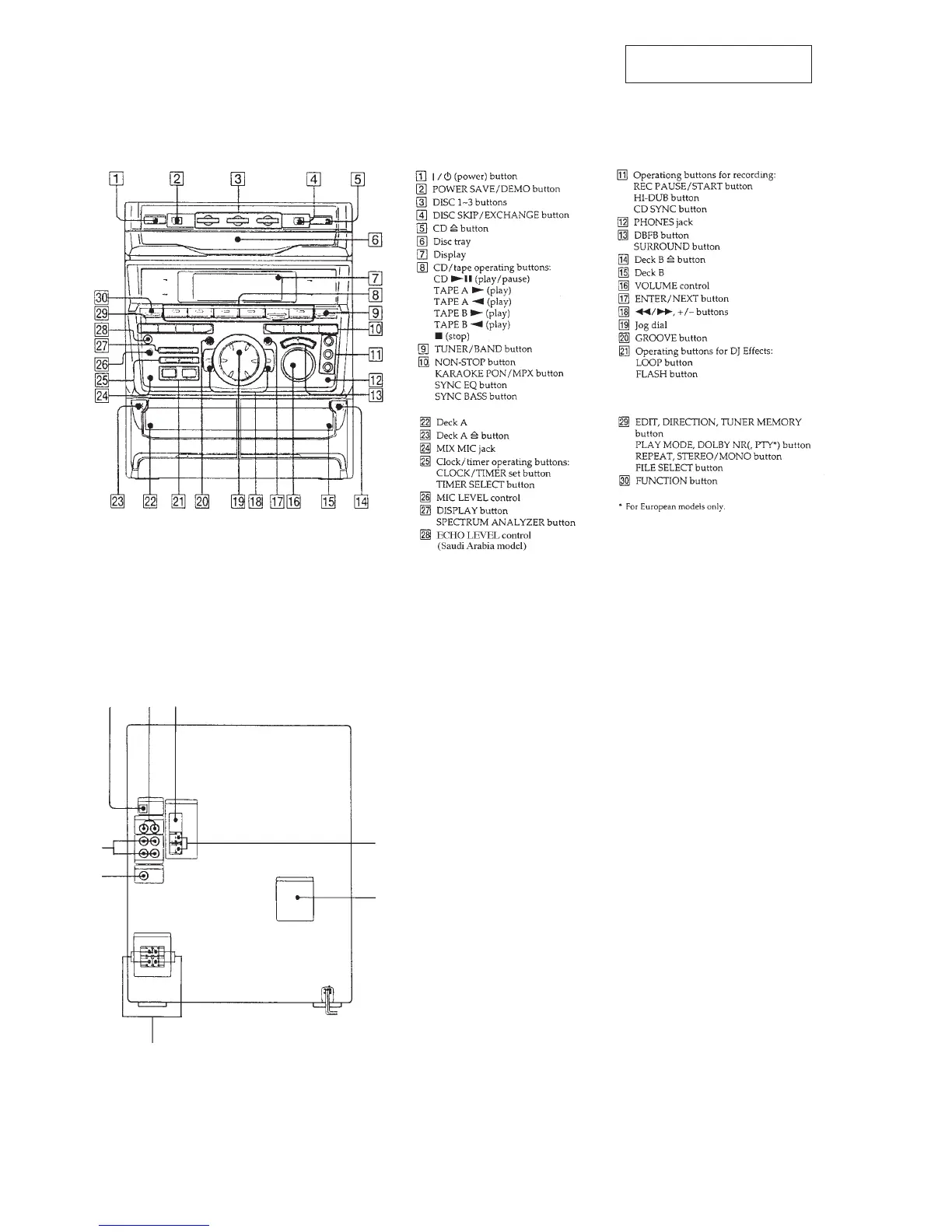

LOCATION OF CONTOROLS
– Front Panel –
– Rear Panel –
123
5
4
6
8
1 CD DIGITAL OUT terminal
2 VIDEO (AUDIO) IN jack
3 FM COAXIAL ANTENNA terminal
(R770/RXD7: AEP models)
FM ANTENNA terminal
(GRX50/RXD7: Canadian models)
4 MD IN/OUT jack
5 SUPER WOOFER jack
(GRX50/RXD7: Canadian models)
6 SPEAKER terminal
7 AM ANTENNA terminal
8 VOLTAGE SELECTOR switch
(GRX50: 120 V AC Area in E, 240 V AC Area in E, Saudi
Arabia, Singapore, Taiwan, Argentine models)
